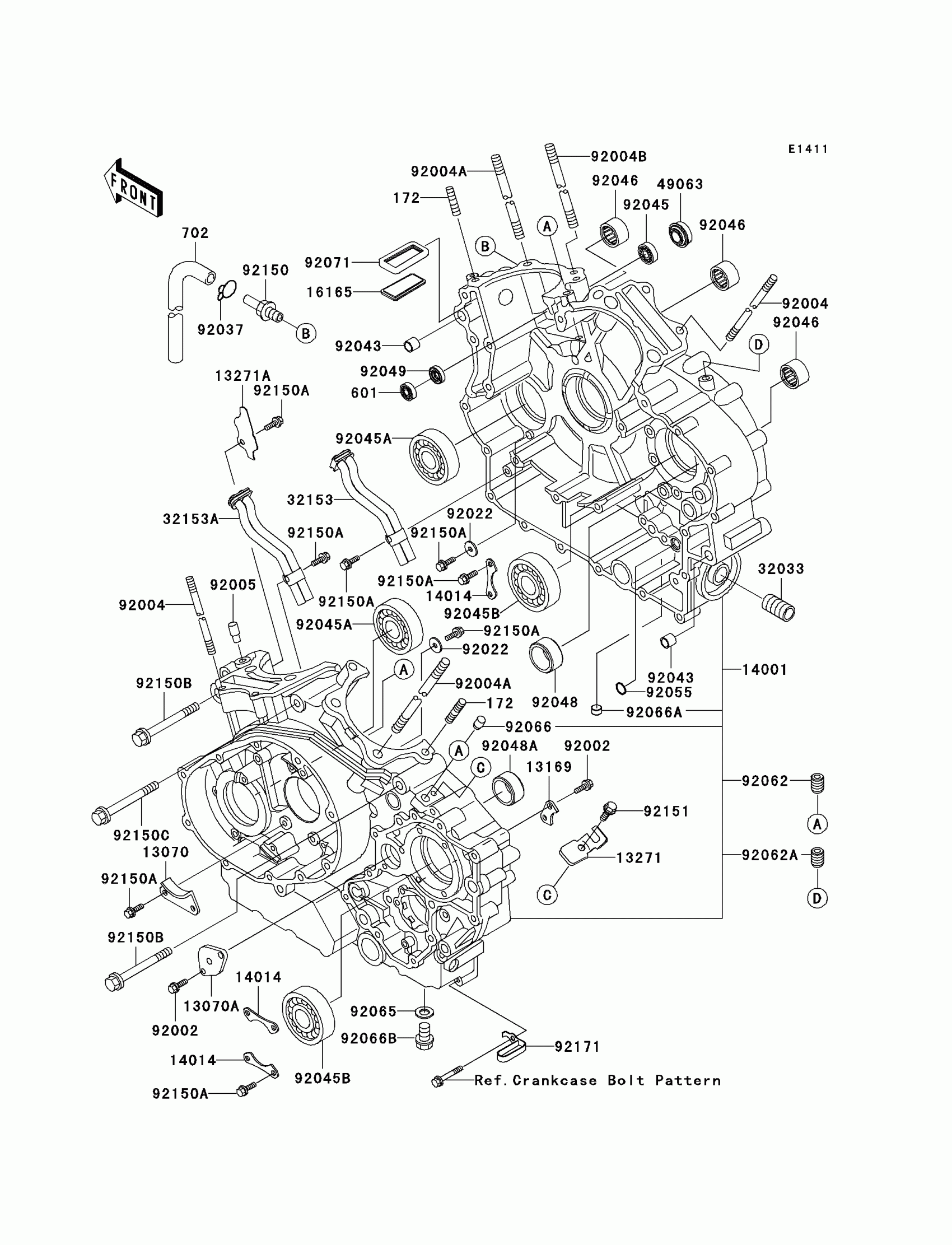

Kawasaki Vulcan 1500 Mean Streak Crankcase Diagram

#

Description
Price

13070

GUIDE,CAM CHAIN

13070-1168

$4.98

13070A

GUIDE

13070-1372

$25.24

13169

PLATE,GEAR CHANGE DRUM

13169-014

$4.90

13271

PLATE

13271-1448

$5.69

13271A

PLATE

13271-1727

$6.53

14001

SET-CRANKCASE

14001-5383

Unavailable

14014

PLATE-POSITION

14014-1084

$5.63

16165

SEPARATOR

16165-1058

$31.98

32033

PIPE,OIL FILTER

32033-1535

$9.85

32153

PIPE,RH CRANKCASE

32153-1262

$45.94

32153A

PIPE,LH CRANKCASE

32153-1263

$45.94

49063

SEAL-MECHANICAL

49063-1057

$43.41

92002

BOLT,6X16

92002-1439

$3.57

92004

STUD,8X231

92004-1174

$12.86

92004A

STUD,12X250

92004-1225

$28.07

92004B

STUD,12X250

92004-1240

$28.07

92005

FITTING

92005-1155

$9.08

92022

WASHER,6X19.5X2

92022-1517

$1.90

92037

CLAMP

92037-1835

$4.85

92043

PIN,11X14X12.3

92043-1266

$0.86

92045

BEARING-BALL,6001JRXLLU/5K

92045-1151

$22.11

92045A

BEARING-BALL,63/28

92045-1189

$48.89

92045B

BEARING-BALL,6306SH2

92045-1190

$36.30

92046

BEARING-NEEDLE,HK1212V11

92046-1292

$15.86

92048

RACE

92048-1103

$22.93

92048A

RACE

92048-1113

$39.13

92049

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92055

RING-O,13.2X2.4

92055-1373

$3.59

92062

NOZZLE,6X8,GREEN

92062-1078

$4.17

92062A

NOZZLE

92062-1089

$8.39

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG

92066-1110

Unavailable

92066B

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92071

GROMMET,SEPARATOR

92071-1269

$8.83

92150

BOLT

92150-1161

$7.30

92150A

BOLT,6X12

92150-1868

$2.66

92150B

BOLT,10X105

92150-1993

$11.86

92150C

BOLT,10X115

92150-1994

$13.00

92151

BOLT,6X8

92151-1416

$1.63

172

BOLT-STUD,8X25

172G0825

$2.46

601

BEARING-BALL

601A6001

$8.88

702

TUBE-RUBBER,4X330

702A04330

$11.29

92171

CLAMP

92171-1273

$8.86
