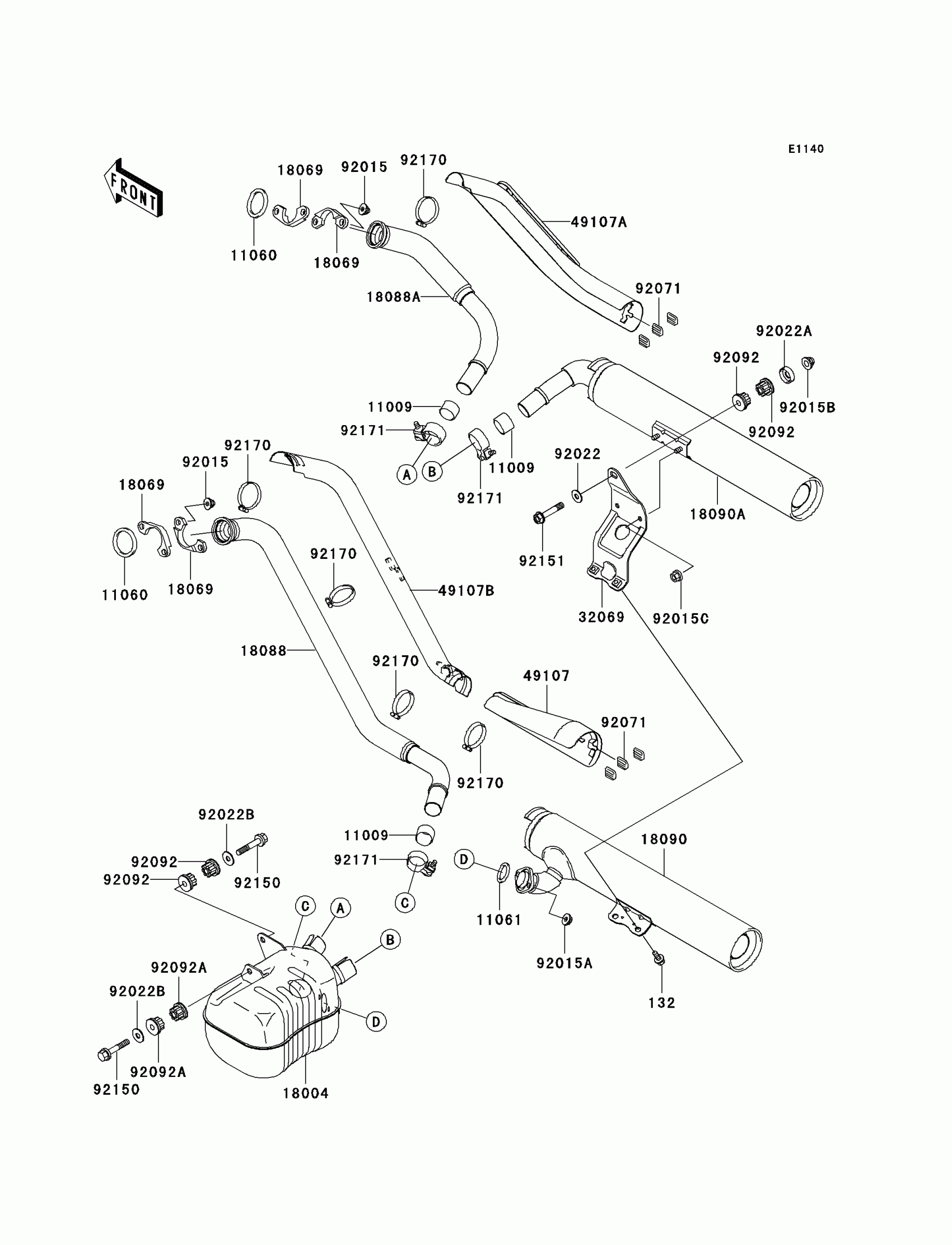

Kawasaki Vulcan 1500 Mean Streak Muffler(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X14

132E0814

$4.80

11009

GASKET,EXHAUST MANIFOLD

11009-1668

$31.85

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

11061

GASKET,EXHAUST PIPE

11061-1069

$14.32

18004

CHAMBER-PREMUFFLER

18004-1101

$1,160.82

18069

HOLDER-EXHAUST PIPE

18069-1161

$35.53

18088

PIPE-EXHAUST,FR

18088-1130

$470.62

18088A

PIPE-EXHAUST,RR

18088-1131

$470.62

18090

BODY-COMP-MUFFLER,FR,LWR

18090-1889

Unavailable

18090A

BODY-COMP-MUFFLER,RR,UPP

18090-1890

$579.28

32069

BRACKET-MUFFLER

32069-1631

$40.02

49107

COVER-EXHAUST PIPE

49107-1202

$188.90

49107A

COVER-EXHAUST PIPE

49107-1215

$339.36

49107B

COVER-EXHAUST PIPE,FR

49107-1216

$228.06

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,8MM

92015-1402

$4.69

92015B

NUT,10MM

92015-1649

$5.52

92015C

NUT,8MM

92015-1936

$5.24

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER,CUP TYPE

92022-1270

$13.98

92022B

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.24

92071

GROMMET

92071-1270

$7.22

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92092A

BUSHING-RUBBER

92092-1081

$24.82

92150

BOLT,10X55

92150-1749

$7.69

92151

BOLT,FLANGED,10X57

92151-1332

$7.29

92170

CLAMP

92170-1710

$11.75

92171

CLAMP

92171-1346

$27.31
