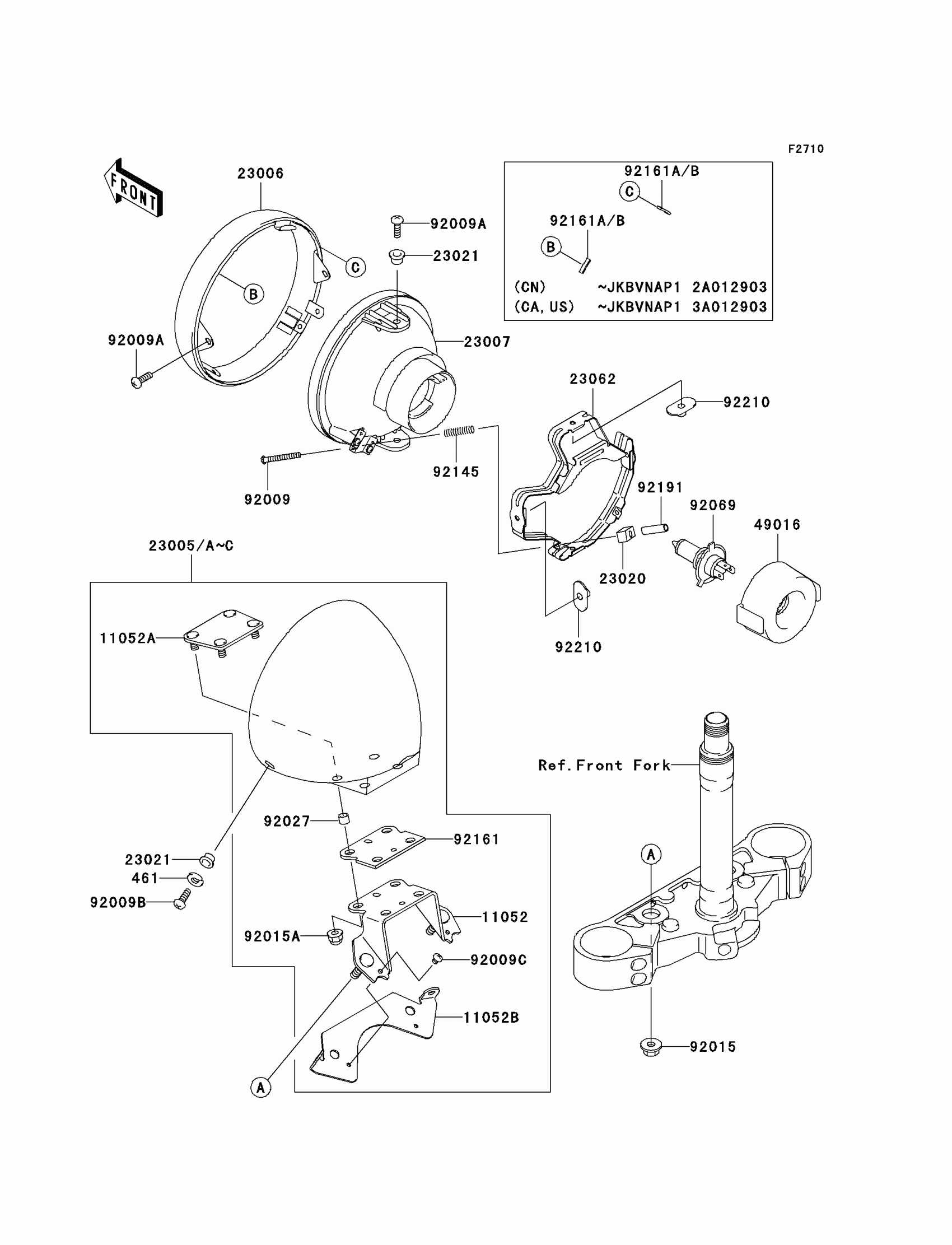

Kawasaki Vulcan 1500 Mean Streak Headlight(s) Diagram

Description

Price

11052

BRACKET,HEAD LAMP BODY

11052-1265

$29.21

11052A

BRACKET,HEAD LAMP BODY

11052-1266

$24.84

11052B

BRACKET,HEAD LAMP BODY

11052-1371

$29.21

23005A

BODY-COMP-HEAD LAMP

23005-1188

$320.86

23005C

BODY-COMP-HEAD LAMP

23005-1202

$320.86

23006

RIM-LAMP

23006-1079

$94.29

23007

LENS-COMP,HEAD LAMP

23007-1359

$172.08

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23021

WASHER

23021-010

$4.31

23062

BRACKET-COMP,HEAD LAMP

23062-1131

$58.56

49016

COVER-SEAL,SOCKET

49016-1203

$12.14

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.91

92009A

SCREW,5X16

92009-1879

$1.06

92009B

SCREW,5MM

92009-1947

$2.58

92009C

SCREW,4X5

92009-1988

$2.67

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015A

NUT,CAP,6MM

92015-1385

$4.31

92027

COLLAR

92027-103

$3.58

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.96

92161

DAMPER,HEAD LAMP BODY

92161-1212

$16.48

461

WASHER SPRING 5MM

461F0500

$0.69

92161B

DAMPER

92161-1271

$4.58

92191

TUBE,3.5X5.5X19

92191-1217

$2.44

92210

NUT,SPECIAL,5MM

92210-1060

$2.46

23005B

BODY-COMP-HEAD LAMP

23005-1202

$320.86
