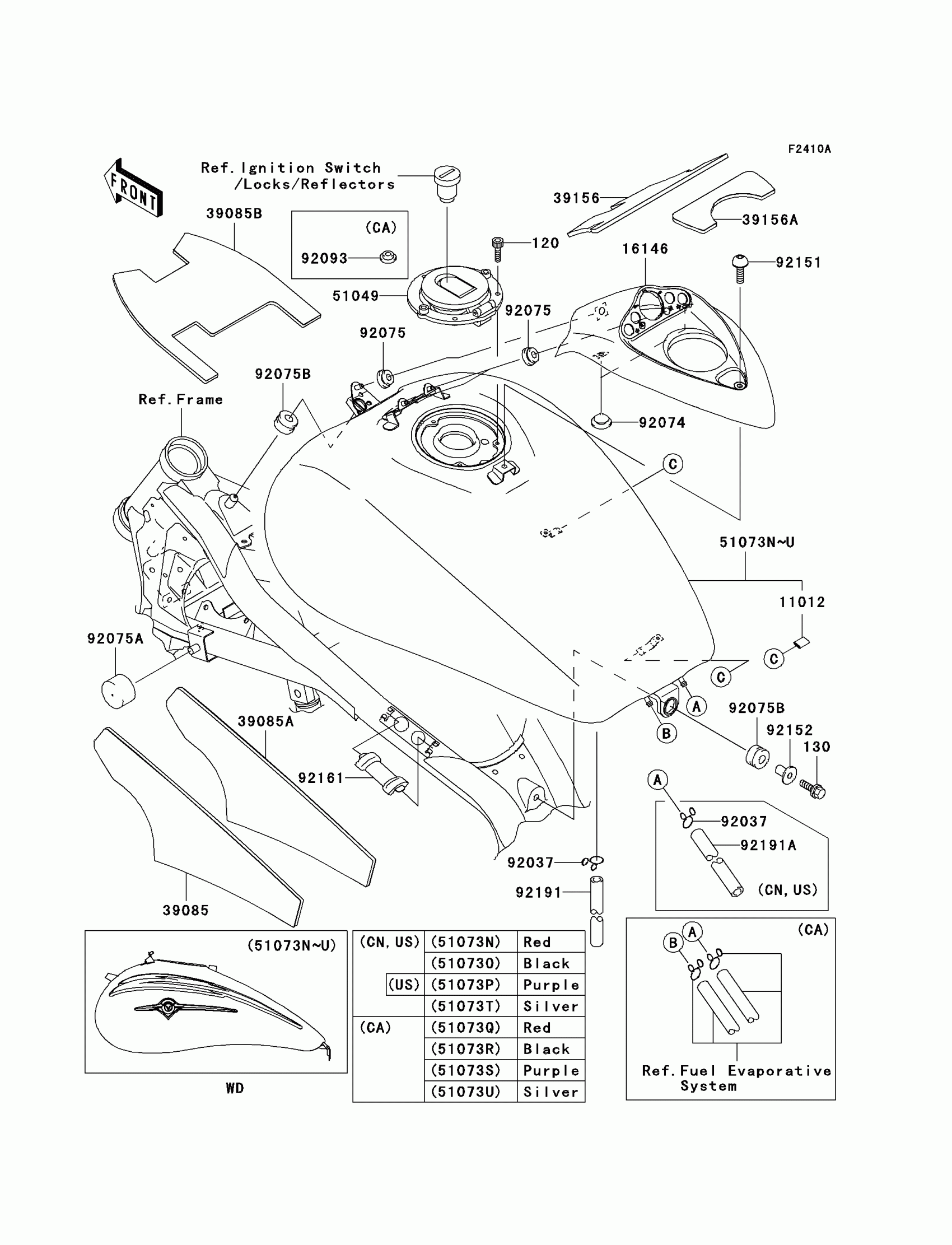

Kawasaki Vulcan 1500 Mean Streak Fuel Tank(VN1500-P2) Diagram

#

Description
Price

11012

CAP

11012-1725

$4.07

16146

COVER-ASSY,FUEL TANK

16146-1220

Unavailable

39085

PAD-TANK,FUEL TANK,LH

39085-1065

$62.49

39085A

PAD-TANK,FUEL TANK,RH

39085-1066

$71.26

39085B

PAD-TANK,FUEL TANK,CNT

39085-1067

$47.31

39156

PAD,FUEL TANK COVER,FR

39156-1700

$43.49

39156A

PAD,FUEL TANK COVER,RR

39156-1701

$35.24

51049

CAP-TANK,FUEL

51049-1124

Unavailable

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,8X30

130H0830

Unavailable

92074

PLUG,7X2

92074-028

$3.81

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER

92075-1736

$4.93

92151

BOLT,SOCKET,6X12

92151-1940

$2.84

92152

COLLAR

92152-1393

$8.66

92161

DAMPER,FUEL TANK

92161-1245

Unavailable

92191

TUBE,DRAIN

92191-1272

$23.59

51073N

TANK-ASSY-FUEL,P.RED

51073-5021-234

$1,416.27

51073O

TANK-ASSY-FUEL,BLACK

51073-5022-B5

$1,556.08

51073P

TANK-ASSY-FUEL,M.M.PURPLE

51073-5023-3F

$1,556.08

51073Q

TANK-ASSY-FUEL,P.RED

51073-5024-234

$1,556.08

51073R

TANK-ASSY-FUEL,BLACK

51073-5025-B5

$1,556.08

51073S

TANK-ASSY-FUEL,M.M.PURPLE

51073-5026-3F

$1,471.14

51073T

TANK-ASSY-FUEL,M.P.SILVER

51073-5027-GU

Unavailable

51073U

TANK-ASSY-FUEL,M.P.SILVER

51073-5028-GU

$1,471.14

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92191A

TUBE,5X10X650

92191-1529

Unavailable
