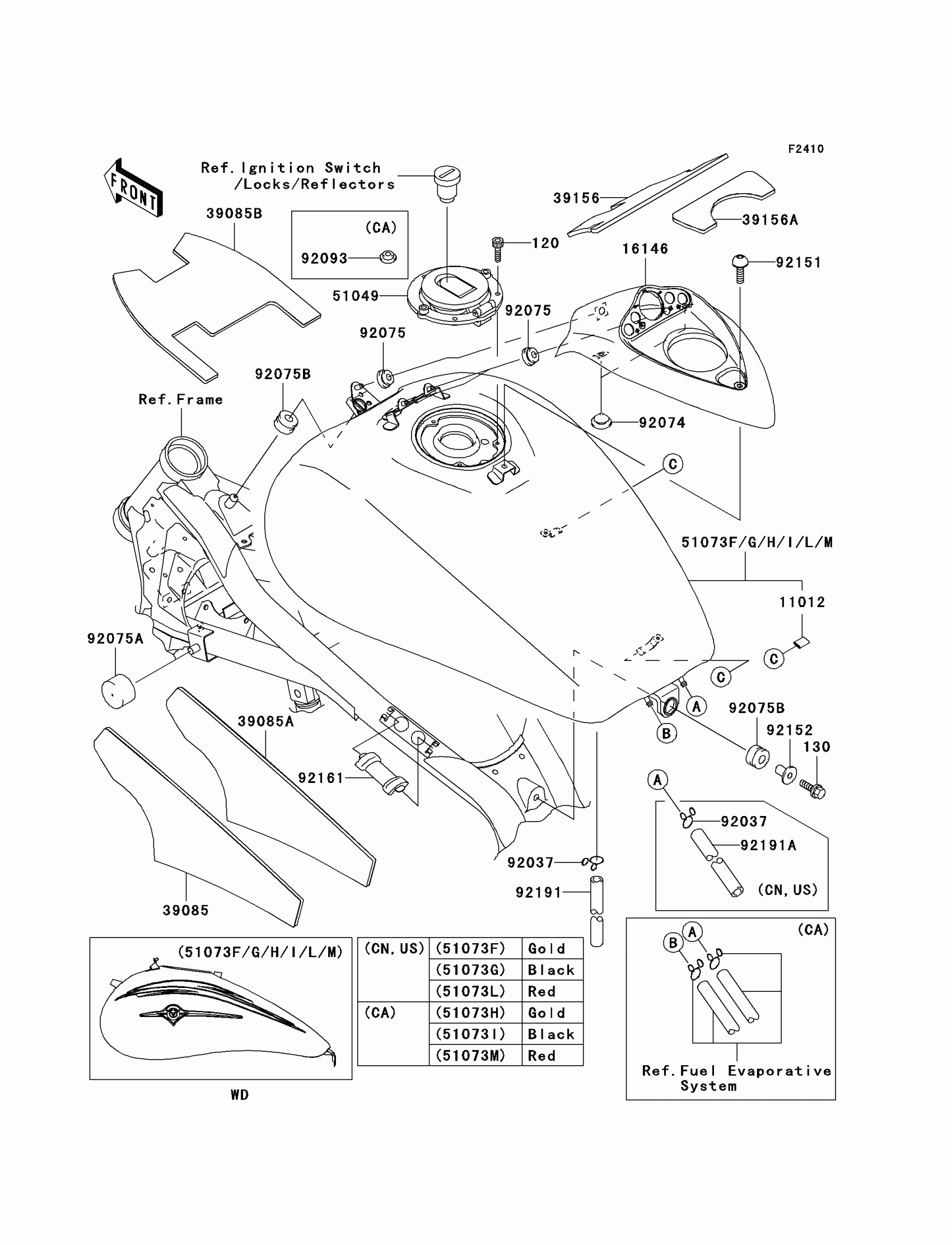

Kawasaki Vulcan 1500 Mean Streak Fuel Tank(VN1500-P1) Diagram

Description

Price

11012

CAP

11012-1725

$4.07

16146

COVER-ASSY,FUEL TANK

16146-1220

Unavailable

39085

PAD-TANK,FUEL TANK,LH

39085-1065

$62.49

39085A

PAD-TANK,FUEL TANK,RH

39085-1066

$71.26

39085B

PAD-TANK,FUEL TANK,CNT

39085-1067

$47.31

39156

PAD,FUEL TANK COVER,FR

39156-1700

$43.49

39156A

PAD,FUEL TANK COVER,RR

39156-1701

$35.24

51049

CAP-TANK,FUEL

51049-1124

Unavailable

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,8X30

130H0830

Unavailable

92074

PLUG,7X2

92074-028

$3.81

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER

92075-1736

$4.93

92151

BOLT,SOCKET,6X12

92151-1940

$2.84

92152

COLLAR

92152-1393

$8.66

92161

DAMPER,FUEL TANK

92161-1245

Unavailable

92191

TUBE,DRAIN

92191-1272

$23.59

51073F

TANK-ASSY-FUEL,C.GOLD

51073-5011-217

Unavailable

51073G

TANK-ASSY-FUEL,P.M.BLACK

51073-5012-218

$1,479.06

51073H

TANK-ASSY-FUEL,C.GOLD

51073-5013-217

$1,625.30

51073I

TANK-ASSY-FUEL,P.M.BLACK

51073-5014-218

Unavailable

51073L

TANK-ASSY-FUEL,C.P.RED

51073-5017-A5

$1,536.45

51073M

TANK-ASSY-FUEL,C.P.RED

51073-5018-A5

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92191A

TUBE,5X10X650

92191-1529

Unavailable
