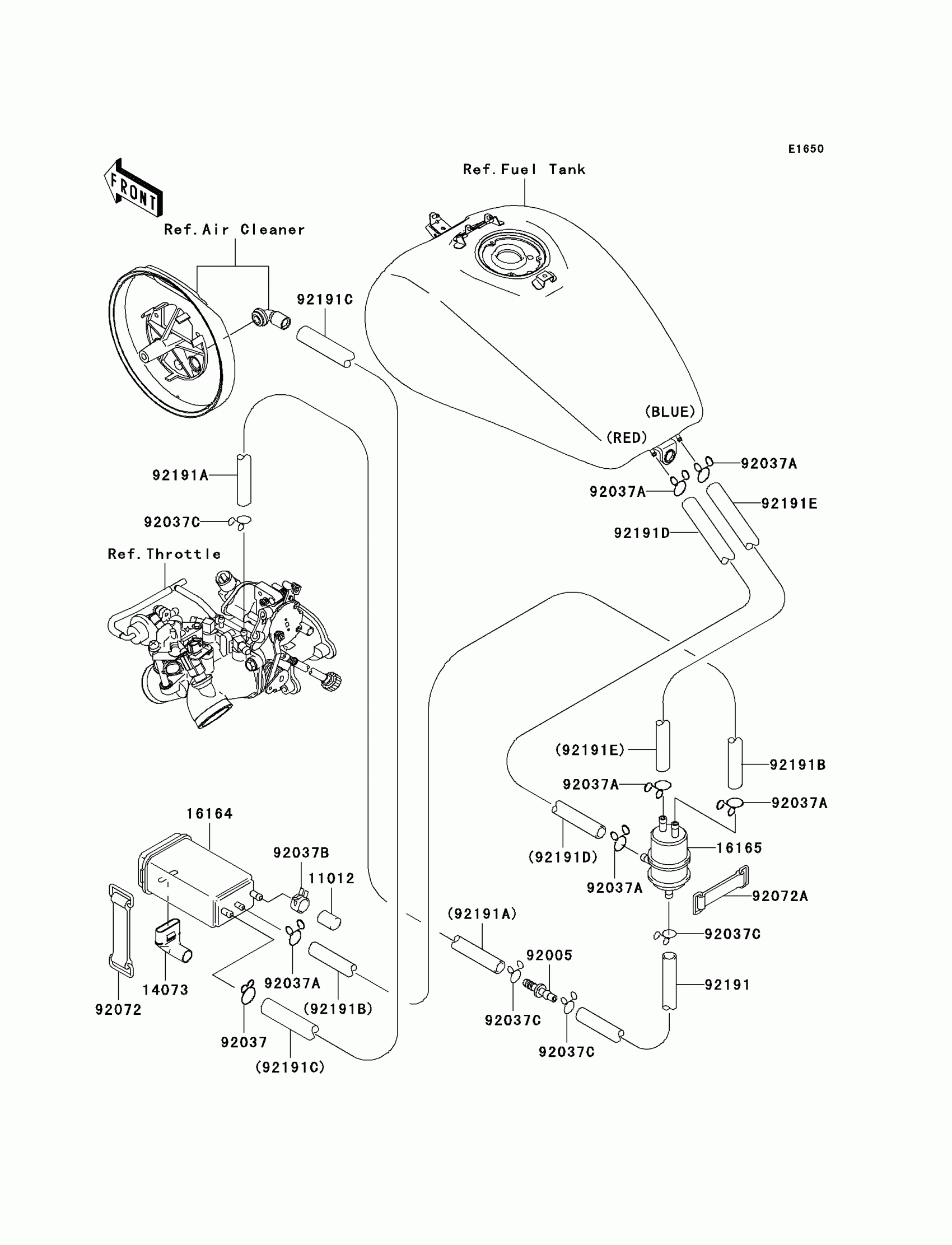

Kawasaki Vulcan 1500 Mean Streak Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

14073

DUCT,CANISTER

14073-1219

$16.84

16164

CANISTER

16164-1070

$148.49

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-1206

$6.62

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.81

92072

BAND,L=90

92072-045

$14.14

92072A

BAND,L=50

92072-1419

$12.21

92191

TUBE,THROTTLE-SEPARATOR,WHITE

92191-1375

$24.05

92191A

TUBE,4X9X180,WHITE

92191-1414

$5.05

92191B

TUBE,SEPARATOR-CANISTER,BLUE

92191-1677

$18.66

92191C

TUBE,CANISTER-CLEANER,GREEN

92191-1678

$33.47

92191D

TUBE,TANK-SEPARATOR,RED

92191-1695

$14.73

92191E

TUBE,TANK-SEPARATOR,BLUE

92191-1696

$13.20
