2003 Kawasaki Vulcan 1500 Mean Streak Frame Diagram

← All diagrams

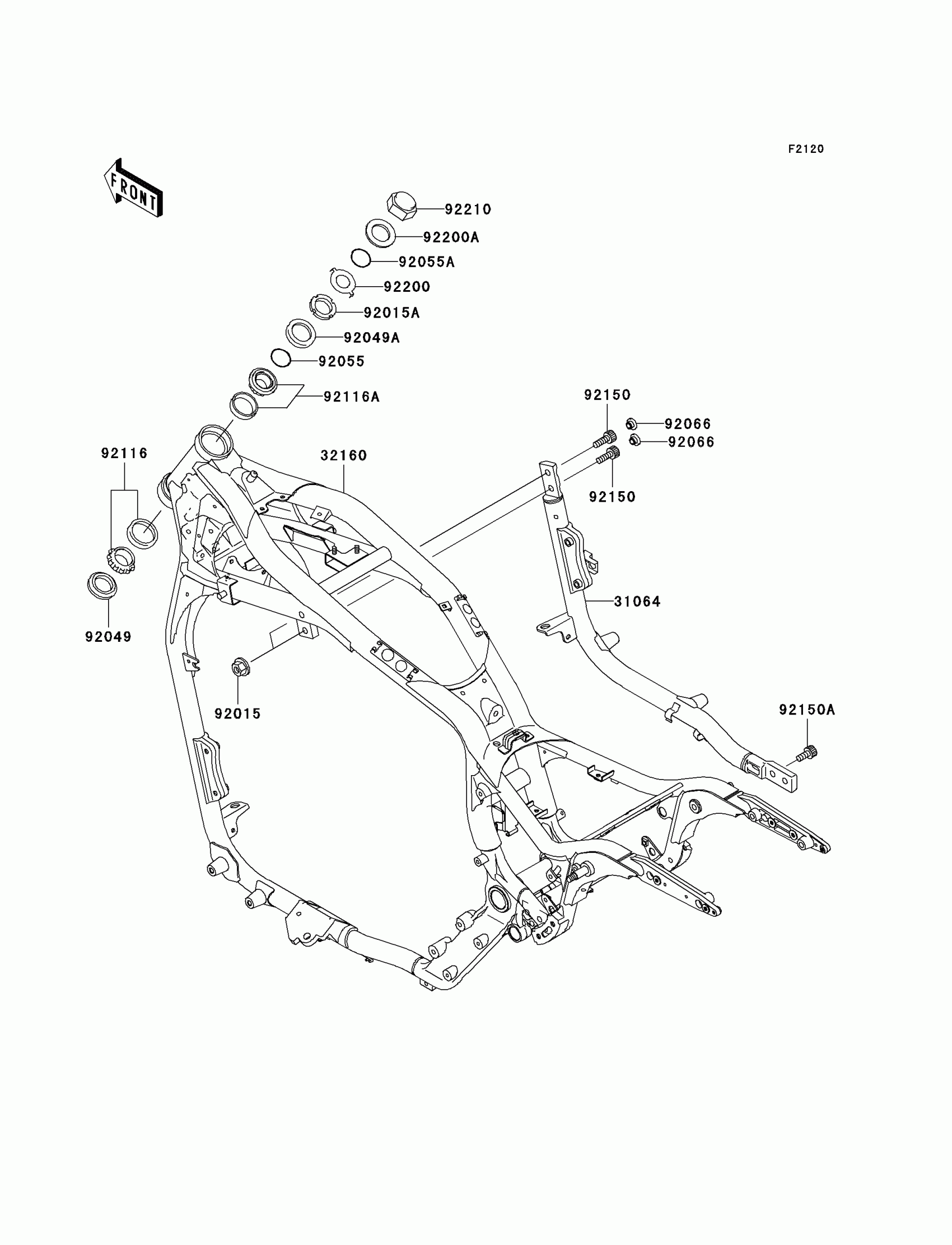

Find the part on the Frame diagram for your 2003 Kawasaki Vulcan 1500 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Vulcan 1500 Mean Streak Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064

1

$574.09

In stock

32160

FRAME-COMP

32160-1722

1

$3,034.82

In stock

92015

NUT,FLANGED,10MM

92015-1727

1

$3.85

In stock

92015A

1

$44.93

In stock

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92049A

SEAL-OIL,MX043N2

92049-1483

1
Out of stock

92055

RING-O,34.5X2.0

92055-1452

1

$4.16

In stock

92055A

RING-O,ID=24.5

92055-1459

1

$3.75

In stock

92066

PLUG

92066-1562

1

$8.97

In stock

92116

1

$73.29

In stock

92116A

1

$73.29

In stock

92150

BOLT,SOCKET,10X30

92150-1690

1

$4.93

In stock

92150A

BOLT,SOCKET,10X23

92150-1942

1

$5.84

In stock

92200

WASHER,CLAW,25.5X40X2.3

92200-1083

1
Out of stock

92200A

WASHER,25.5X42X2.3

92200-1566

1
Out of stock

92210

NUT,CAP,25MM

92210-1166

1
Out of stock
