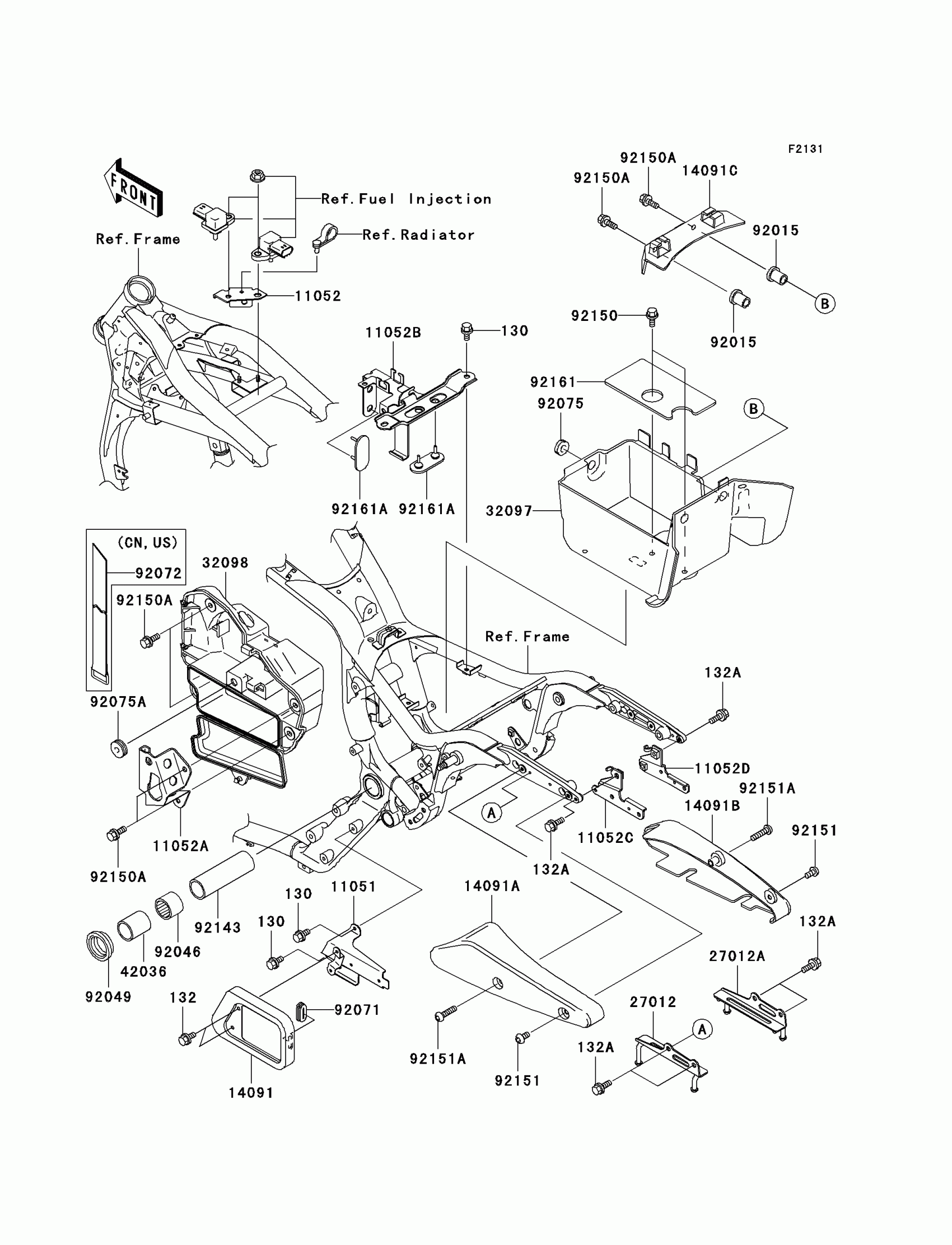

Kawasaki Vulcan 1500 Mean Streak Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

11051

BRACKET,REGULATOR

11051-1163

$70.85

11052

BRACKET

11052-1071

$10.83

11052A

BRACKET,SIDE COVER LOCK

11052-1234

$22.66

11052B

BRACKET,BATTERY BAND

11052-1281

$36.17

11052C

BRACKET,HELMET LOCK,LH

11052-1282

$14.95

11052D

BRACKET,HELMET LOCK,RH

11052-1283

$14.95

14091

COVER,REGULATOR

14091-1079

$59.26

14091A

COVER,RR FENDER,LH

14091-1361

$93.45

14091B

COVER,RR FENDER,RH

14091-1363

$93.45

14091C

COVER,BATTERY CASE

14091-1373

$25.46

27012

HOOK,BUNGEE CORD,LH

27012-1609

$28.44

27012A

HOOK,BUNGEE CORD,RH

27012-1610

$28.44

32097

CASE-BATTERY

32097-1192

$43.14

32098

CASE-TOOL

32098-1137

$152.67

42036

SLEEVE,L=45

42036-1330

Unavailable

92015

NUT

92015-1700

$6.55

92046

BEARING-NEEDLE,BM2824

92046-1202

$20.35

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92071

GROMMET

92071-1187

$3.78

92075

DAMPER

92075-1067

$3.57

92075A

DAMPER

92075-1629

$3.81

92143

COLLAR,20.2X27X90

92143-1878

$36.69

92150

BOLT,6X14

92150-1133

$3.43

92150A

BOLT,6X16

92150-1198

$3.69

92151

BOLT,SOCKET,6X12

92151-1940

$2.84

92151A

BOLT,SOCKET,6X25

92151-1945

$4.59

92161

DAMPER,BATTERY

92161-1097

$4.93

92161A

DAMPER,BATTERY BAND

92161-1214

$3.34

92072

BAND,L=470

92072-1331

$24.34
