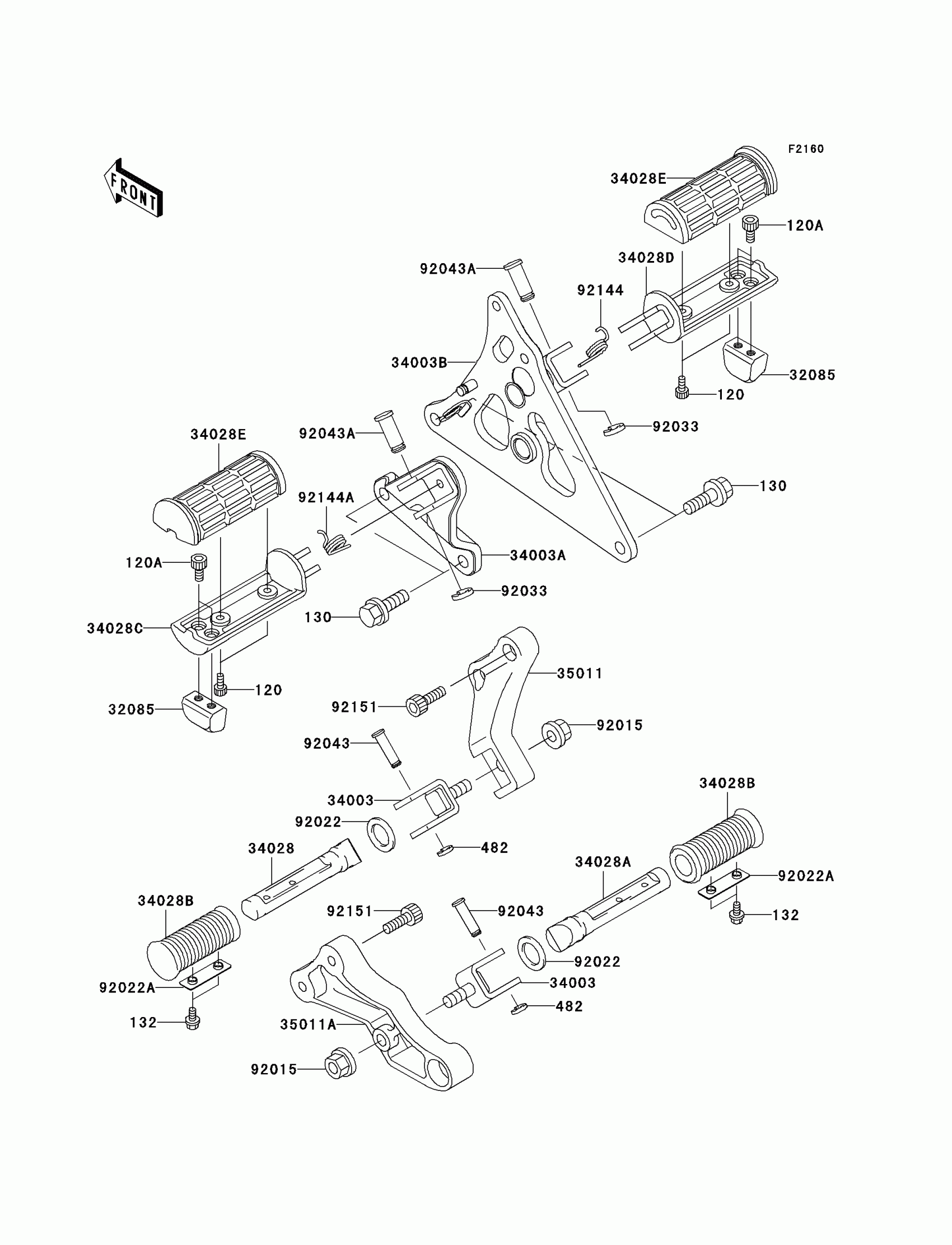

Kawasaki Vulcan 1500 Mean Streak Footrests Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

$1.71

120A

BOLT-SOCKET,6X14

120S0614

$3.84

130

BOLT-FLANGED,10X30

130J1030

$6.10

132

BOLT-FLANGED-SMALL,5X10

132J0510

$3.19

482

CIRCLIP-TYPE-E

482L7000

$3.92

32085

STOPPER,BANK SENSOR

32085-1534

$25.76

34003

HOLDER-STEP,RR

34003-1292

$35.45

34003A

HOLDER-STEP,FR,LH

34003-1506

$130.28

34003B

HOLDER-STEP,FR,RH

34003-1507

$161.76

34028

STEP,RR,LH

34028-1219

$48.65

34028A

STEP,RR,RH

34028-1220

$48.65

34028B

STEP,RR,RUBBER

34028-1221

$12.43

34028C

STEP,FR,LH

34028-1519

$50.52

34028D

STEP,FR,RH

34028-1520

$47.64

34028E

STEP,RUBBER

34028-1522

$28.28

35011

STAY,REAR STEP,LH

35011-1770

$93.47

35011A

STAY,REAR STEP,RH

35011-1922

$102.79

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,20X30X2.3

92022-1568

$4.31

92022A

WASHER,STEP

92022-1874

$6.15

92033

RING-SNAP,10MM

92033-1166

$3.89

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,12X37

92043-1358

$8.10

92144

SPRING,STEP RETURN

92144-1126

$6.16

92144A

SPRING,STEP RETURN

92144-1210

$6.89

92151

BOLT,SOCKET,8X25

92151-1525

$2.97
