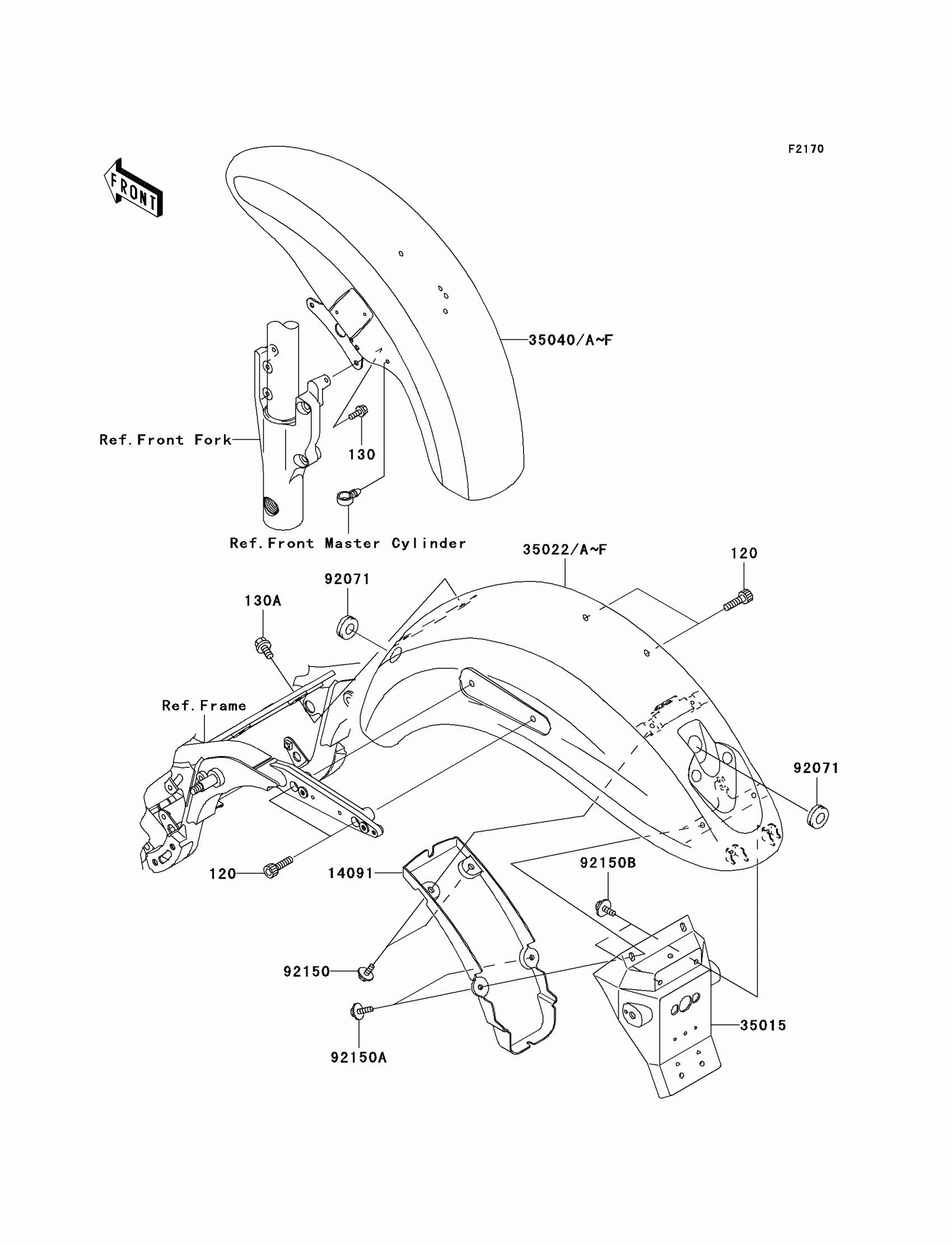

Kawasaki Vulcan 1500 Mean Streak Fenders Diagram

Description

Price

120

BOLT-SOCKET,8X30

120S0830

$4.37

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED,8X16

130J0816

$1.66

14091

COVER,TAIL LAMP

14091-1348

$26.59

35015

FLAP-COMP

35015-1051

$73.40

35022A

FENDER-COMP-REAR,BLACK

35022-1354-B5

$1,103.63

35022B

FENDER-COMP-REAR,M.P.SILVER

35022-1354-GU

$1,103.63

35022E

FENDER-COMP-REAR,P.RED

35022-1354-234

Unavailable

35040A

FENDER-COMP-FRONT,BLACK

35040-1053-B5

$172.93

35040B

FENDER-COMP-FRONT,M.P.SILVER

35040-1053-GU

$177.93

35040E

FENDER-COMP-FRONT,P.RED

35040-1053-234

$177.93

92071

GROMMET

92071-1265

$4.63

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92150A

BOLT,6X20

92150-1801

$6.57

92150B

BOLT,FLANGED,6X16

92150-1894

$4.76

35022F

FENDER-COMP-REAR,M.M.PURPLE

35022-1354-3F

$1,083.92

35040F

FENDER-COMP-FRONT,M.M.PURPLE

35040-1053-3F

$174.76
