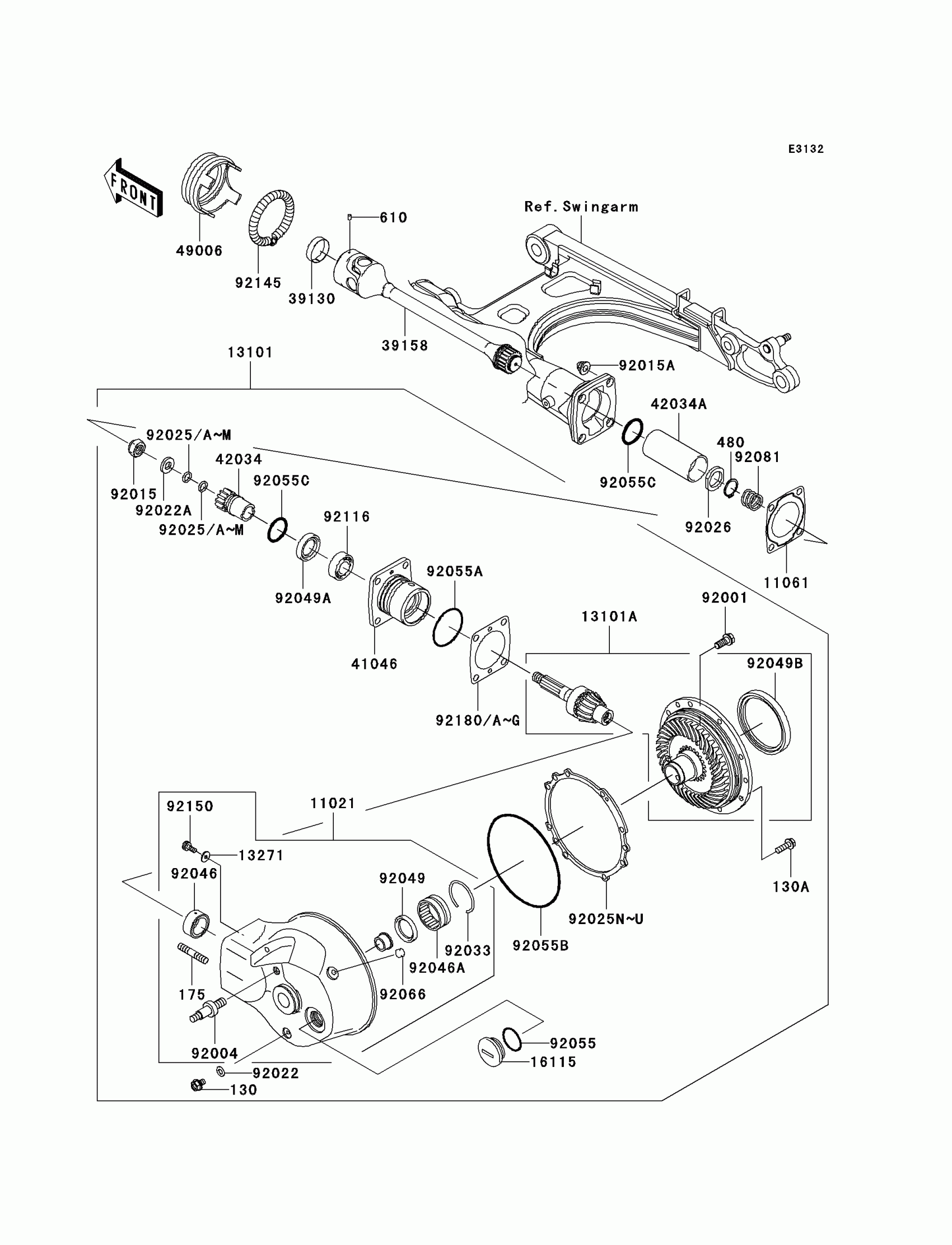

Kawasaki Vulcan 1500 Mean Streak Drive Shaft/Final Gear Diagram

#

Description
Price

11021

CASE-ASSY,FINAL GEAR

11021-1133

$1,461.17

11061

GASKET,RR,SWINGARM

11061-1088

$33.68

13101

GEAR-ASSY,FINAL

13101-1313

Unavailable

13101A

GEAR-ASSY,BEVEL,RR

13101-5086

$1,679.75

13271

PLATE

13271-1733

$4.31

16115

CAP-OIL FILLER

16115-1056

$29.42

39130

SPRING-LEAF

39130-1002

$4.65

39158

SHAFT-ASSY-DRIVE,RR,SWINGARM

39158-1112

$583.99

41046

HOUSING-BEARING

41046-1103

$157.00

42034

COUPLING

42034-1079

$136.61

42034A

COUPLING,DRIVE SHAFT,OUTER

42034-1178

$96.63

49006

BOOT,DRIVE SHAFT

49006-1226

$29.42

92001

BOLT,10X23

92001-1778

$5.93

92004

STUD,RR,SHOCKABSORBER

92004-1278

$17.83

92015

NUT,16MM

92015-1059

Unavailable

92015A

NUT,10MM

92015-1649

$5.52

92022

WASHER,8.2X16X1

92022-1086

$3.92

92022A

WASHER,16X32X3.2

92022-1105

$11.49

92025

SHIM,T=1.30

92025-1214

Unavailable

92025A

SHIM,T=1.32

92025-1215

Unavailable

92025B

SHIM,T=1.34

92025-1216

Unavailable

92025C

SHIM,T=1.36

92025-1217

Unavailable

92025D

SHIM,T=1.38

92025-1218

Unavailable

92025E

SHIM,T=0.10

92025-1219

Unavailable

92025F

SHIM,T=0.20

92025-1220

Unavailable

92025G

SHIM,T=0.30

92025-1221

Unavailable

92025H

SHIM,T=0.50

92025-1222

Unavailable

92025I

SHIM,T=0.60

92025-1223

Unavailable

92025J

SHIM,T=0.70

92025-1224

Unavailable

92025K

SHIM,T=0.80

92025-1225

Unavailable

92025L

SHIM,T=0.90

92025-1226

Unavailable

92025M

SHIM,T=1.00

92025-1227

Unavailable

92025N

SHIM,T=0.15

92025-1783

Unavailable

92025O

SHIM,T=0.50

92025-1784

Unavailable

92025P

SHIM,T=0.60

92025-1785

Unavailable

92025Q

SHIM,T=0.70

92025-1786

Unavailable

92025R

SHIM,T=0.80

92025-1787

Unavailable

92025S

SHIM,T=0.90

92025-1788

Unavailable

92025T

SHIM,T=1.00

92025-1789

Unavailable

92025U

SHIM,T=1.20

92025-1790

Unavailable

130

BOLT-FLANGED

130N0812

$5.59

130A

BOLT-FLANGED,8X25

130Y0825

$3.63

175

BOLT-STUD-FINE,10X35

175G1035

Unavailable

480

CIRCLIP-TYPE-C,26MM

480J2600

$10.03

610

ROLLER,4X6

610A0406

$4.31

92026

SPACER,26.2X36X2

92026-1085

$8.21

92033

RING-SNAP,52MM

92033-1074

$4.65

92046

BEARING-NEEDLE,RNA4904ARD

92046-1168

$47.99

92046A

BEARING-NEEDLE,38NQ5020WD

92046-1169

$58.29

92049

SEAL-OIL,S-35477HS

92049-1025

$14.90

92049A

SEAL-OIL,SC32487

92049-1033

$18.83

92049B

SEAL-OIL,MHSA83X100X9XRT

92049-1280

$32.48

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,57.6X2.4

92055-1038

$7.62

92055B

RING-O,154X3

92055-1165

$11.37

92055C

RING-O,32.7X3.5

92055-1646

$7.73

92066

PLUG

92066-1110

$6.51

92081

SPRING

92081-1183

$7.55

92116

BEARING-ROLLER,4T32005X

92116-1004

$47.99

92145

SPRING,BOOT

92145-1162

$11.64

92150

BOLT,5X10

92150-1806

$3.42

92180

SHIM,T=0.15

92180-1365

Unavailable

92180A

SHIM,T=0.50

92180-1366

Unavailable

92180B

SHIM,T=0.60

92180-1367

Unavailable

92180C

SHIM,T=0.70

92180-1368

Unavailable

92180D

SHIM,T=0.80

92180-1369

Unavailable

92180E

SHIM,T=0.90

92180-1370

Unavailable

92180F

SHIM,T=1.00

92180-1371

Unavailable

92180G

SHIM,T=1.20

92180-1372

Unavailable
