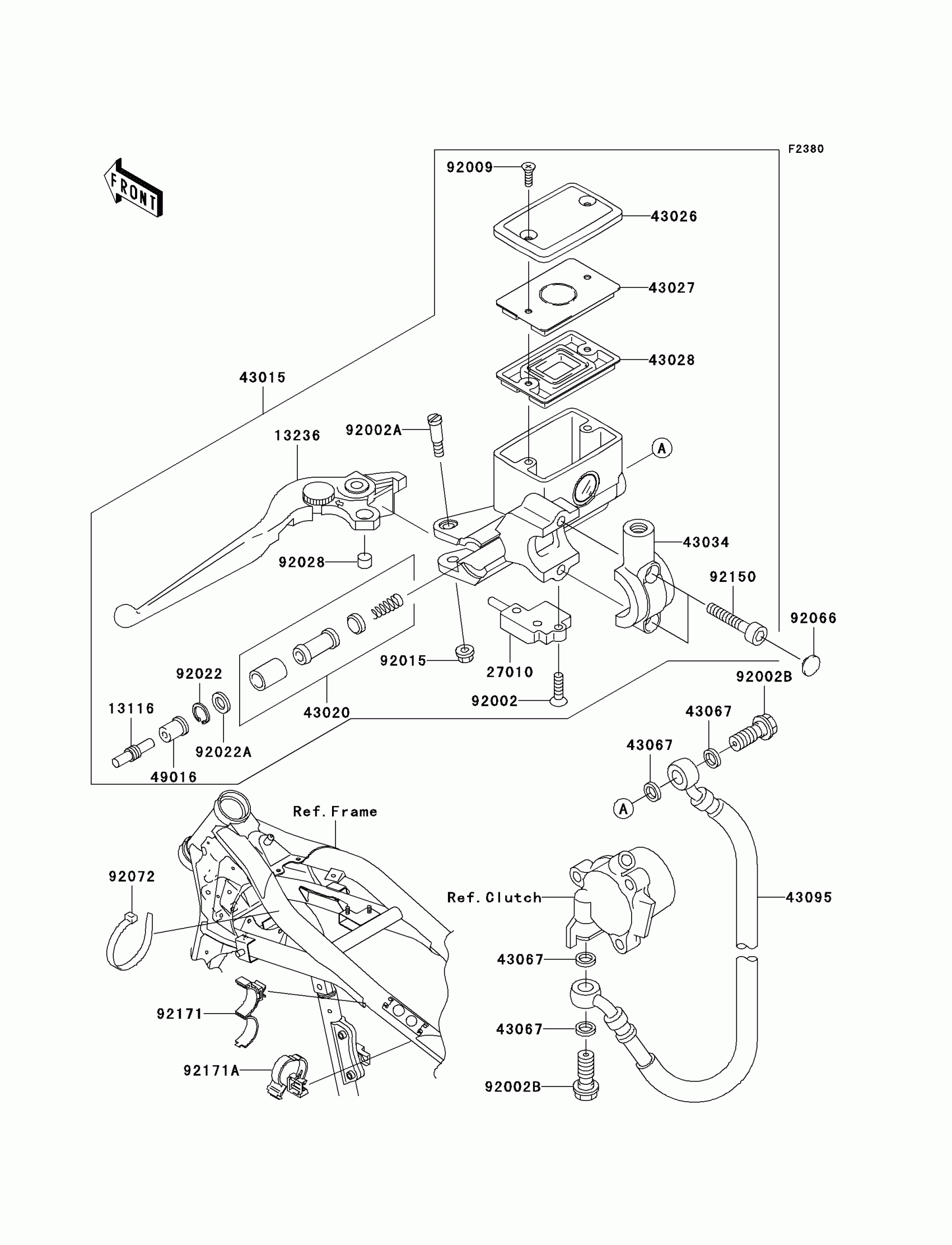

Kawasaki Vulcan 1500 Mean Streak Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$33.39

13236

LEVER-COMP,CLUTCH

13236-1316

$54.48

27010

SWITCH,CLUTCH

27010-1406

$32.18

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1679

$442.47

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$58.51

43026

CAP-BRAKE

43026-1085

$55.91

43027

PLATE-DIAPHRAGM

43027-1059

$5.78

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE

43034-1172

$38.17

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095

HOSE-BRAKE,CLUTCH

43095-1215

$194.68

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

SCREW,4X16

92002-1325

$7.83

92002A

BOLT,LEVER SET

92002-1561

$11.22

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW

92009-1795

$3.34

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92022

CIRCLIP

92022-1605

$3.81

92022A

WASHER,PISTON

92022-1606

$3.57

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20

92066

PLUG

92066-1301

$4.59

92072

BAND,L=365

92072-1197

$7.71

92150

BOLT,SOCKET,6MM

92150-1025

$7.56

92171

CLAMP,DIA=15

92171-1424

$3.19

92171A

CLAMP,HOSE

92171-1440

$8.66
