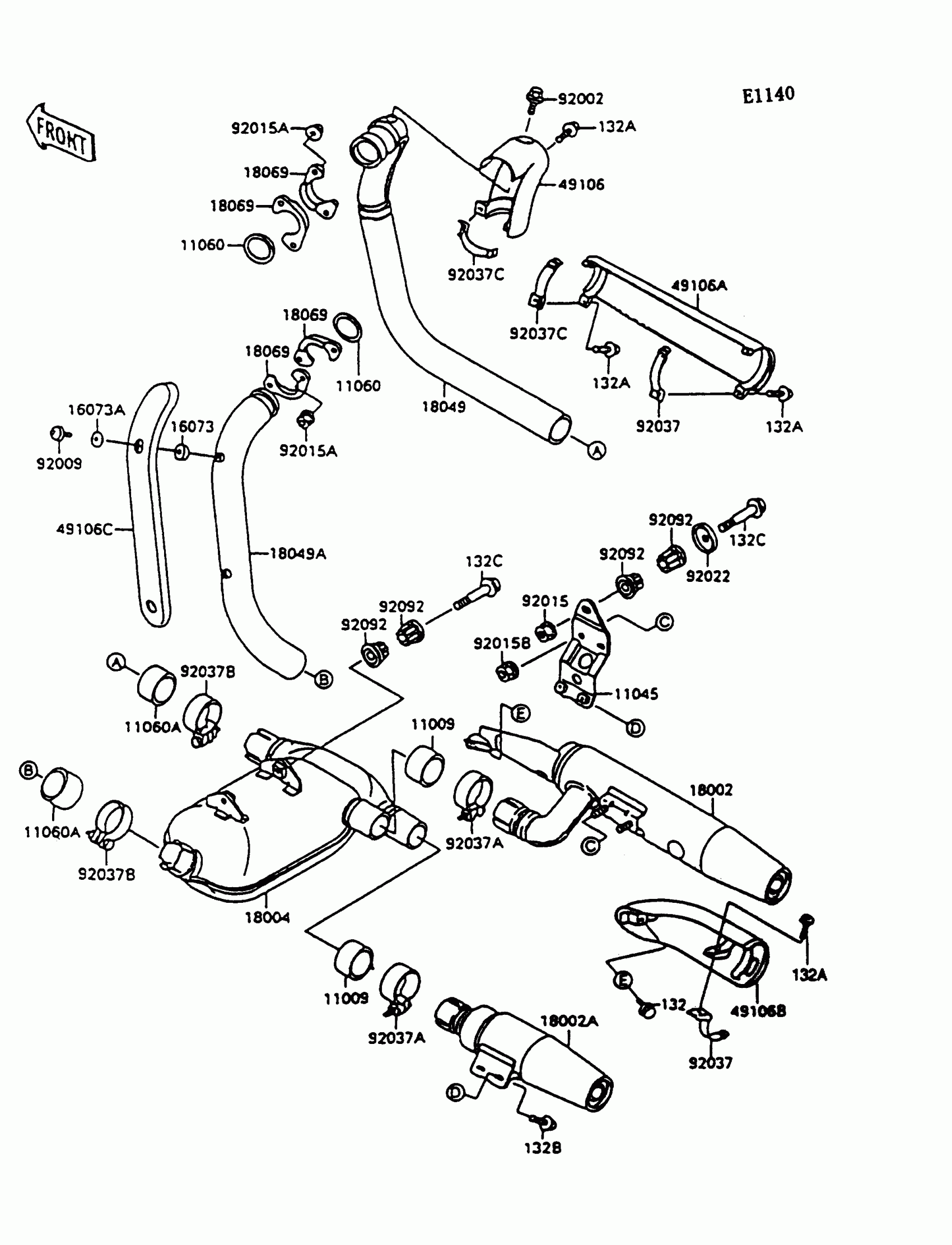

Kawasaki Vulcan 1500 L Muffler(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132E0610

$4.69

132A

BOLT-FLANGED-SMALL,6X20

132E0620

$4.44

132B

BOLT-FLANGED-SMALL,8X14

132E0814

$4.80

132C

BOLT-FLANGED-SMALL,8X55

132E0855

$6.52

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$32.66

11045

BRACKET,MUFFLER

11045-1435

Unavailable

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

11060A

GASKET,EXHAUST PIPE HOLDER

11060-1330

$25.39

16073

INSULATOR,6.5X12.5X4

16073-1069

$5.84

16073A

INSULATOR,6.5X12.5X2

16073-1070

$4.78

18002

BODY-COMP-MUFFLER,UPP

18002-1806

Unavailable

18002A

BODY-COMP-MUFFLER,LWR

18002-1807

Unavailable

18004

CHAMBER-PREMUFFLER

18004-1057

Unavailable

18049

PIPE-EXHAUST,FR

18049-1406

Unavailable

18049A

PIPE-EXHAUST,RR

18049-1407

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1074

$35.53

49106

COVER-EXHAUST PIPE,FR

49106-1095

$98.75

49106A

COVER-EXHAUST PIPE,FR

49106-1096

Unavailable

49106B

COVER-MUFFLER

49106-1107

$136.33

49106C

COVER-MUFFLER,PIPE,RR

49106-1109

$108.43

92002

BOLT,6X8

92002-1604

$5.24

92009

SCREW

92009-1517

$5.33

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,CAP,8MM

92015-1371

$5.00

92015B

NUT,8MM

92015-1398

$4.80

92022

WASHER,CUP TYPE

92022-1270

$13.98

92037

CLAMP,MUFFLER COVER

92037-1615

$15.39

92037A

CLAMP,52MM

92037-1633

$27.31

92037B

CLAMP,59MM

92037-1863

Unavailable

92037C

CLAMP

92037-1874

$16.16

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44
