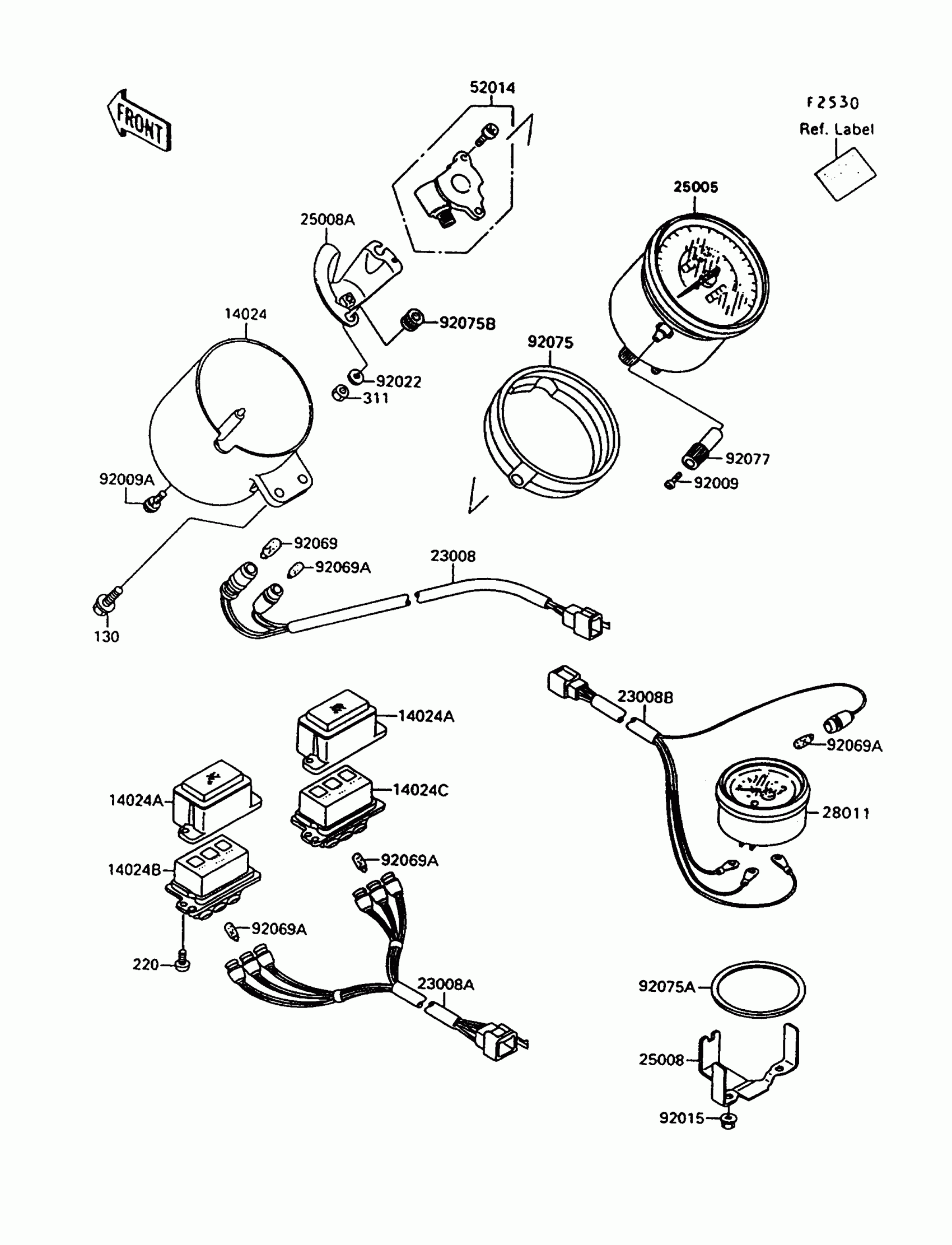

Kawasaki Vulcan 1500 L Meter(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130B0616

Unavailable

220

SCREW-PAN-CROS

220B0414

$4.28

311

NUT-HEX

311B0400

$0.52

14024

COVER,METER,LWR

14024-1504

$382.39

14024A

COVER,PILOT BOX,UPP

14024-1505

Unavailable

14024B

COVER,PILOT BOX,LH,LWR

14024-1506

Unavailable

14024C

COVER,PILOT BOX,RH,LWR

14024-1507

Unavailable

23008

SOCKET-ASSY,METER

23008-1340

Unavailable

23008A

SOCKET-ASSY,PILOT BOX

23008-1341

$81.67

23008B

SOCKET-ASSY,FUEL METER

23008-1342

Unavailable

25005

SPEEDOMETER,MPH

25005-1385

$467.00

25008

BRACKET-METER

25008-1136

Unavailable

25008A

BRACKET-METER

25008-1139

Unavailable

28011

METER,FUEL

28011-1102

Unavailable

52014

ELBOW

52014-1081

$78.81

92009

SCREW,2X6,BLACK

92009-1172

$2.61

92009A

SCREW,5X10

92009-1478

Unavailable

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,4.3X12.5X1

92022-1888

$3.00

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,14V 3W,T6.5

92069-1068

$5.00

92075

DAMPER,SHOCK,METER

92075-1953

$27.38

92075A

DAMPER,SHOCK,FUEL METER

92075-1954

Unavailable

92075B

DAMPER,METER FITTING

92075-1956

Unavailable

92077

KNOB,METER

92077-1077

Unavailable
