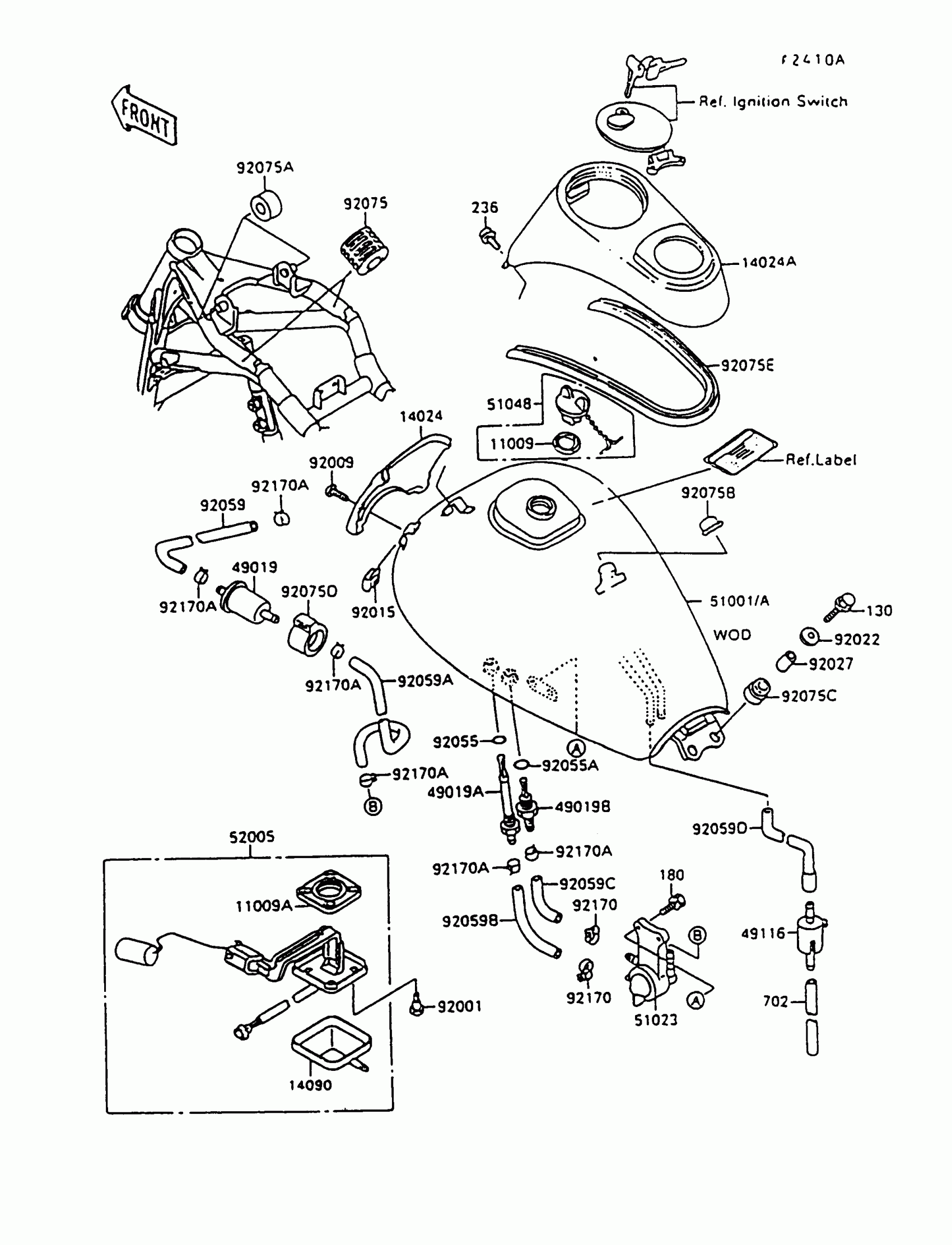

Kawasaki Vulcan 1500 L Fuel Tank(VN1500-C4) Diagram

#

Description
Price

11009

GASKET,TANK CAP

11009-1326

Unavailable

11009A

GASKET,FUEL GAUGE

11009-1656

Unavailable

14024

COVER,FUEL TANK,FR

14024-1453

$50.99

14024A

COVER,FUEL TANK,UPP

14024-1614

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$16.00

49019

FILTER-FUEL

49019-1055

$18.12

49019A

FILTER-FUEL,"ON"

49019-1056

Unavailable

49019B

FILTER-FUEL,RES

49019-1057

$10.90

49116

VALVE-ASSY,BREATHER

49116-1063

Unavailable

51023

TAP-ASSY,FUEL

51023-1136

$150.56

51048

CAP-ASSY-TANK,FUEL

51048-1094

$50.58

52005

GAUGE,FUEL

52005-1084

Unavailable

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92009

SCREW,5X10

92009-1651

$3.92

92015

NUT,CLAMP,5MM

92015-1677

$8.32

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92055

RING-O,ID=9.5

92055-1386

$2.99

92055A

RING-O,11.5X1.5

92055-1387

$2.99

92059

TUBE

92059-1785

Unavailable

92059A

TUBE

92059-1786

Unavailable

92059B

TUBE,"ON"

92059-1818

$6.93

92059C

TUBE,"RES"

92059-1819

$6.41

92059D

TUBE

92059-1854

Unavailable

92075

DAMPER,FUEL TANK

92075-084

$7.65

92075A

DAMPER,FUEL TANK,FR

92075-1115

$4.93

92075B

DAMPER

92075-1445

$6.46

92075C

DAMPER

92075-167

$4.40

92075D

DAMPER,FUEL FILTER

92075-1853

$9.39

92075E

DAMPER,FUEL TANK COVER

92075-1933

Unavailable

92170

CLAMP

92170-1278

$10.15

92170A

CLAMP

92170-2043

$0.93

130

BOLT-FLANGED,6X25

130B0625

Unavailable

180

BOLT-UPSET-WS

180B0608

$2.58

236

SCREW-PAN-WSP-CROS,5X10

236B0510

Unavailable

51001

TANK-COMP-FUEL,BLACK MICA

51001-1426-20

Unavailable

51001A

TANK-COMP-FUEL,BLACK MICA

51001-1462-20

Unavailable

702

TUBE-RUBBER,5X8X550

702A05550

$29.70
