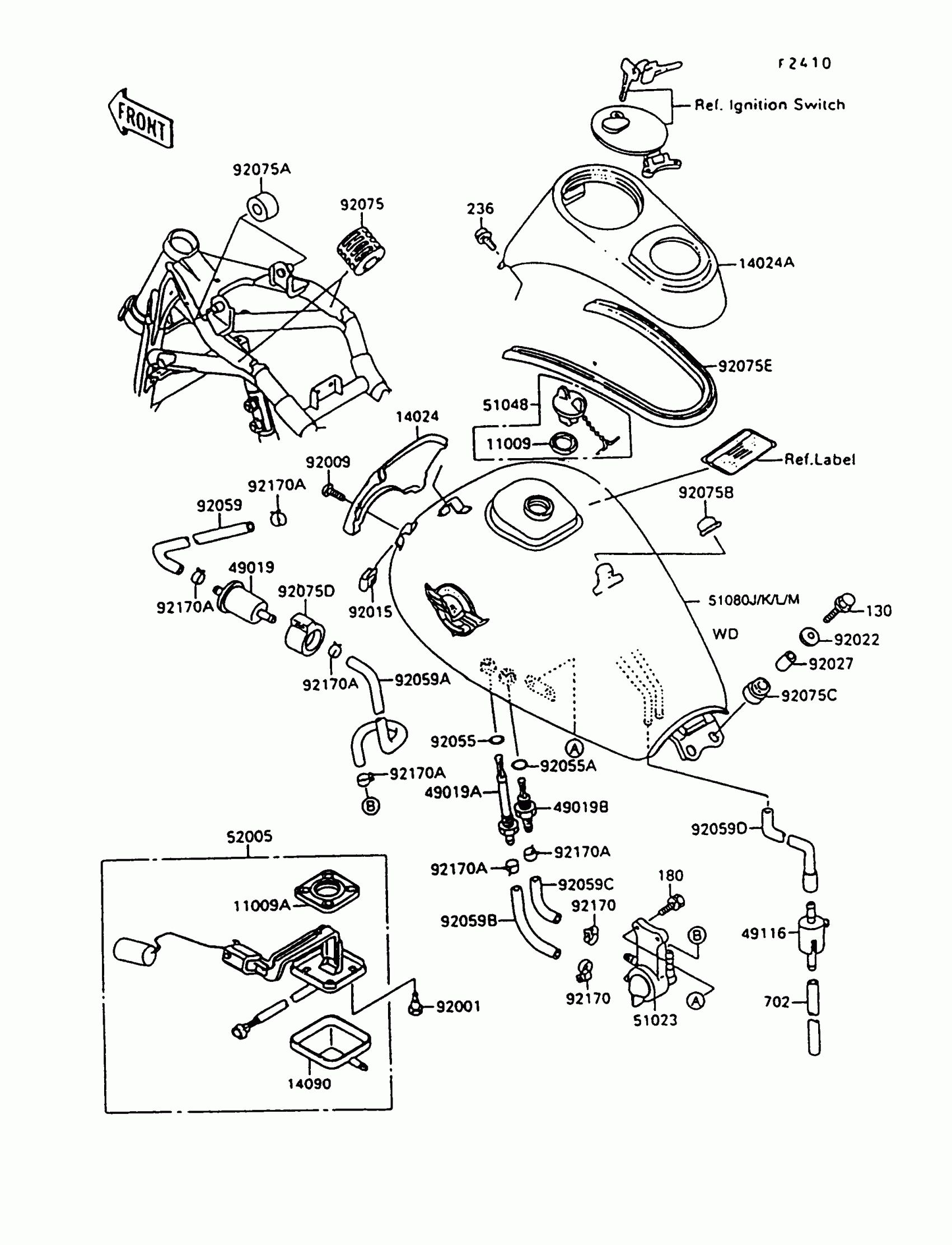

Kawasaki Vulcan 1500 L Fuel Tank(VN1500-C3) Diagram

#

Description
Price

11009

GASKET,TANK CAP

11009-1326

$8.12

11009A

GASKET,FUEL GAUGE

11009-1656

Unavailable

14024

COVER,FUEL TANK,FR

14024-1453

$50.02

14024A

COVER,FUEL TANK,UPP

14024-1614

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$17.07

49019

FILTER-FUEL

49019-1055

$22.97

49019A

FILTER-FUEL,"ON"

49019-1056

Unavailable

49019B

FILTER-FUEL,RES

49019-1057

$14.34

49116

VALVE-ASSY,BREATHER

49116-1063

$31.84

51023

TAP-ASSY,FUEL

51023-1136

$147.45

51048

CAP-ASSY-TANK,FUEL

51048-1094

$49.61

52005

GAUGE,FUEL

52005-1084

$232.10

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92009

SCREW,5X10

92009-1651

$4.38

92015

NUT,CLAMP,5MM

92015-1677

$8.54

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X14.5

92027-156

$5.00

92055

RING-O,ID=9.5

92055-1386

$3.92

92055A

RING-O,11.5X1.5

92055-1387

$3.92

92059

TUBE

92059-1785

$21.42

92059A

TUBE

92059-1786

Unavailable

92059B

TUBE,"ON"

92059-1818

$9.09

92059C

TUBE,"RES"

92059-1819

$8.40

92059D

TUBE

92059-1854

Unavailable

92075

DAMPER,FUEL TANK

92075-084

$10.04

92075A

DAMPER,FUEL TANK,FR

92075-1115

$6.57

92075B

DAMPER

92075-1445

$8.47

92075C

DAMPER

92075-167

$5.84

92075D

DAMPER,FUEL FILTER

92075-1853

$12.35

130

BOLT-FLANGED,6X25

130B0625

$0.55

180

BOLT-UPSET-WS

180B0608

$3.18

236

SCREW-PAN-WSP-CROS,5X10

236B0510

Unavailable

92075E

DAMPER,FUEL TANK COVER

92075-1933

Unavailable

92170

CLAMP

92170-1278

$10.62

92170A

CLAMP

92170-2043

$1.19

51080J

TANK-COMP-FUEL,P.C.YELLOW

51080-5230-1G

Unavailable

51080K

TANK-COMP-FUEL,BLACK MICA

51080-5230-20

$1,244.98

51080L

TANK-CONP-FUEL,P.C.YELLOW

51080-5231-1G

Unavailable

51080M

TANK-COMP-FUEL,BLACK MICA

51080-5231-20

$1,244.98

702

TUBE-RUBBER,5X8X550

702A05550

$29.14
