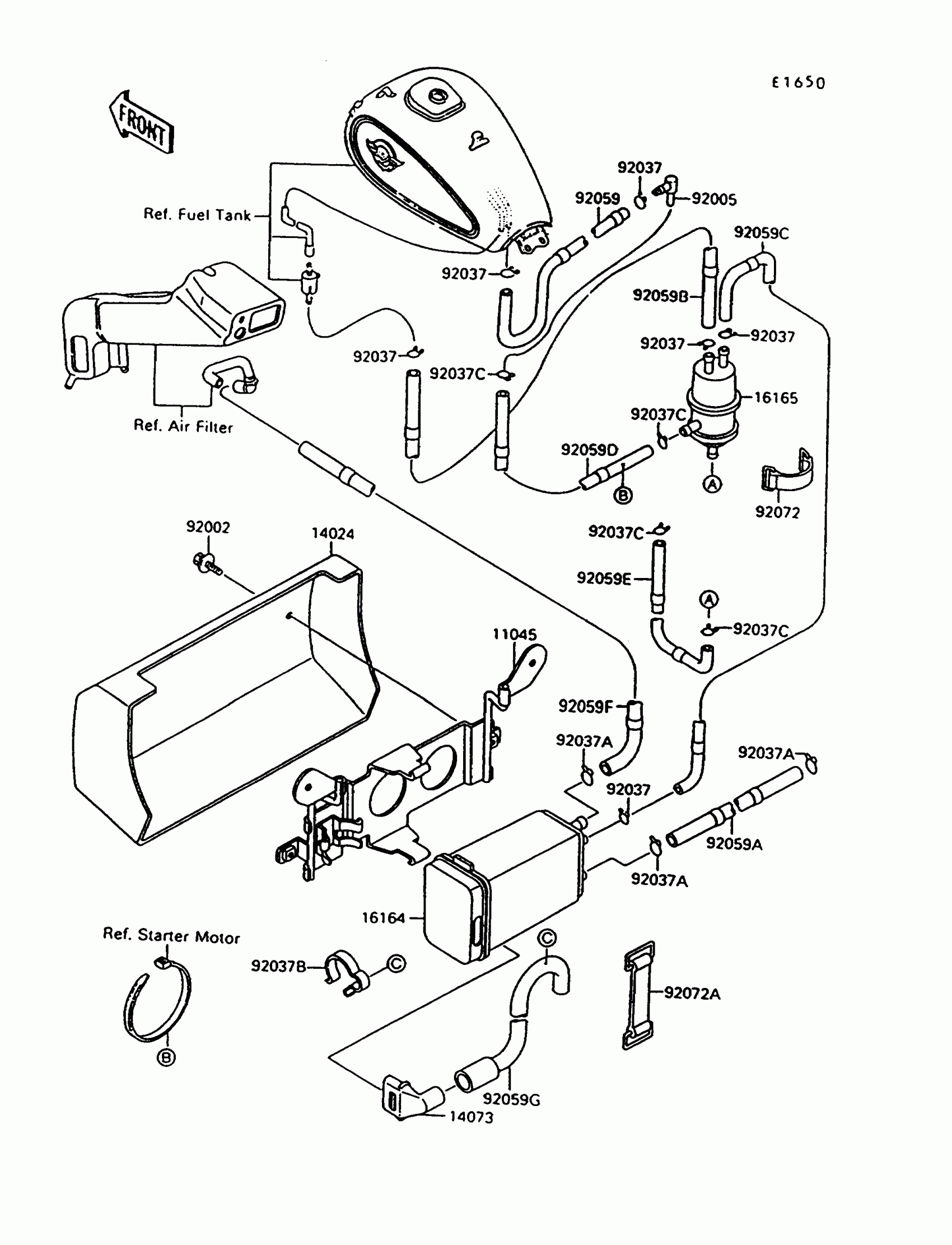

Kawasaki Vulcan 1500 L Fuel Evaporative System Diagram

Description

Price

11045

BRACKET,CANISTER

11045-1930

Unavailable

14024

COVER,CANISTER

14024-1546

Unavailable

14073

DUCT,CANISTER

14073-1219

$20.80

16164

CANISTER

16164-1070

$145.42

16165

SEPARATOR

16165-1001

$90.01

92002

BOLT,6X14

92002-1108

$4.11

92005

FITTING

92005-1138

$8.84

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,HOSE

92037-1689

Unavailable

92037C

CLAMP

92037-1712

$5.00

92059

TUBE,5X8X270,RED

92059-1401

Unavailable

92059A

TUBE,7X12X940,YELLOW

92059-1414

$41.13

92059B

TUBE,5X8X1100,BLUE

92059-1442

Unavailable

92059C

TUBE,CANISTER-SEPARATOR,BLUE

92059-1867

Unavailable

92059D

TUBE,5X10X1100,RED

92059-1870

$23.01

92059E

TUBE,4X9X1087,WHITE

92059-1871

Unavailable

92059F

TUBE,7X12X945,GREEN

92059-1872

Unavailable

92059G

TUBE,CANISTER

92059-1876

Unavailable

92072

BAND,L=50

92072-066

$16.08

92072A

BAND,L=100

92072-071

$9.53
