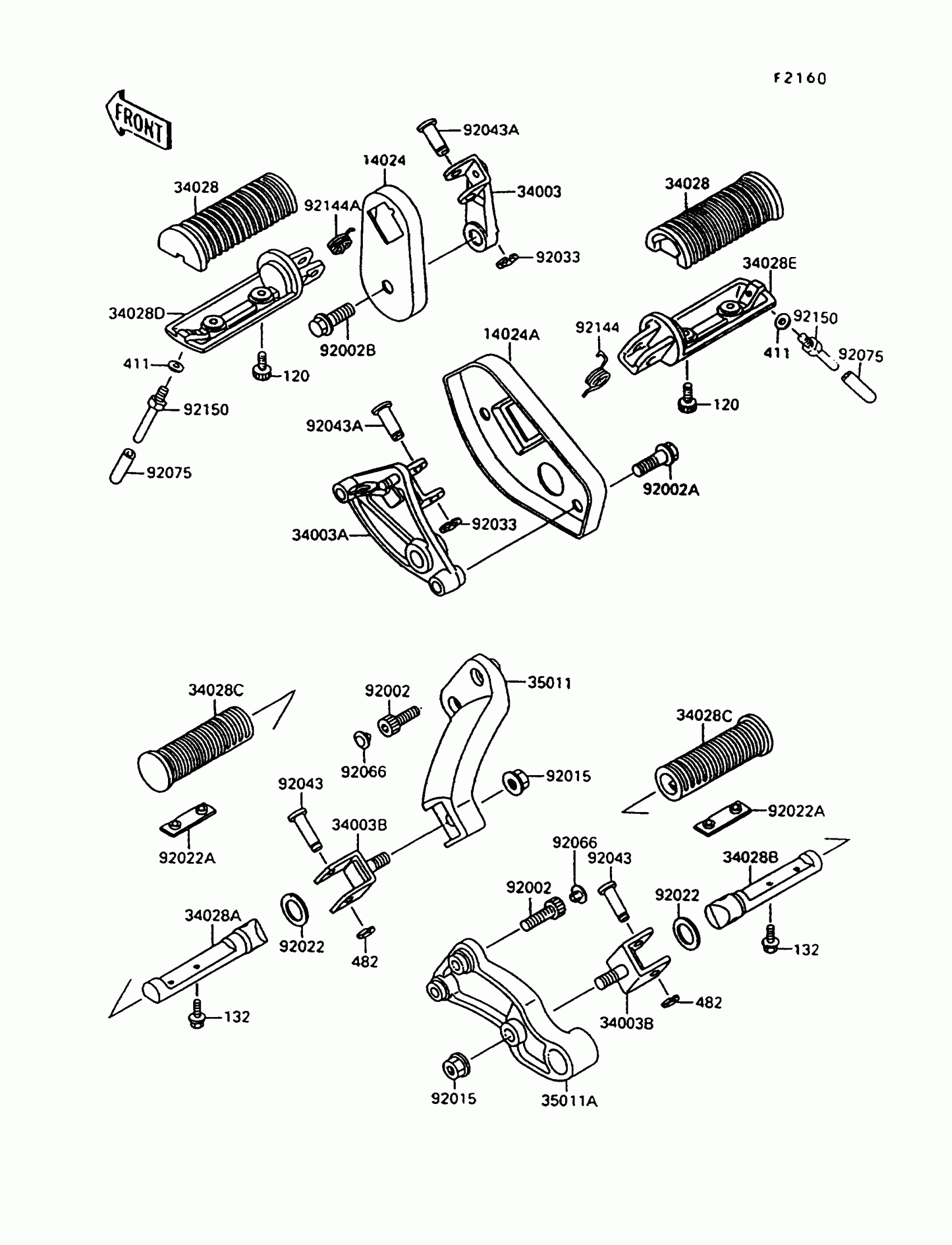

Kawasaki Vulcan 1500 L Footrests Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120S0512

$1.71

132

BOLT-FLANGED-SMALL,5X10

132J0510

$3.19

411

WASHER PLAIN

411F0600

$1.18

482

CIRCLIP-TYPE-E

482L7000

$3.92

14024

COVER,FRONT STEP,LH

14024-1435

Unavailable

14024A

COVER,FRONT STEP,RH

14024-1436

Unavailable

34003

HOLDER-STEP,FR,LH

34003-1290

$85.12

34003A

HOLDER-STEP,FR,RH

34003-1291

Unavailable

34003B

HOLDER-STEP,RR

34003-1292

$35.45

34028

STEP,FR,RUBBER

34028-1217

$24.65

34028A

STEP,RR,LH

34028-1219

$48.65

34028B

STEP,RR,RH

34028-1220

$48.65

34028C

STEP,RR,RUBBER

34028-1221

$12.43

34028D

STEP,FR,LH

34028-1405

$48.54

34028E

STEP,FR,RH

34028-1406

$53.30

35011

STAY,REAR STEP,LH

35011-1346

Unavailable

35011A

STAY,REAR STEP,RH

35011-1347

Unavailable

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92002A

BOLT,FLANGED,10X35

92002-1829

$7.90

92002B

BOLT,FLANGED,12X30

92002-1925

$9.67

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,20X30X2.3

92022-1568

$4.31

92022A

WASHER,STEP

92022-1874

$6.15

92033

RING-SNAP,10MM

92033-1166

$3.89

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,12X37

92043-1358

$8.10

92066

PLUG

92066-1277

$6.51

92075

DAMPER

92075-1980

$5.33

92144

SPRING,STEP RETURN

92144-1126

$6.16

92144A

SPRING,STEP RETURN

92144-1210

$6.89

92150

BOLT,BANK SENSOR

92150-1047

$15.94
