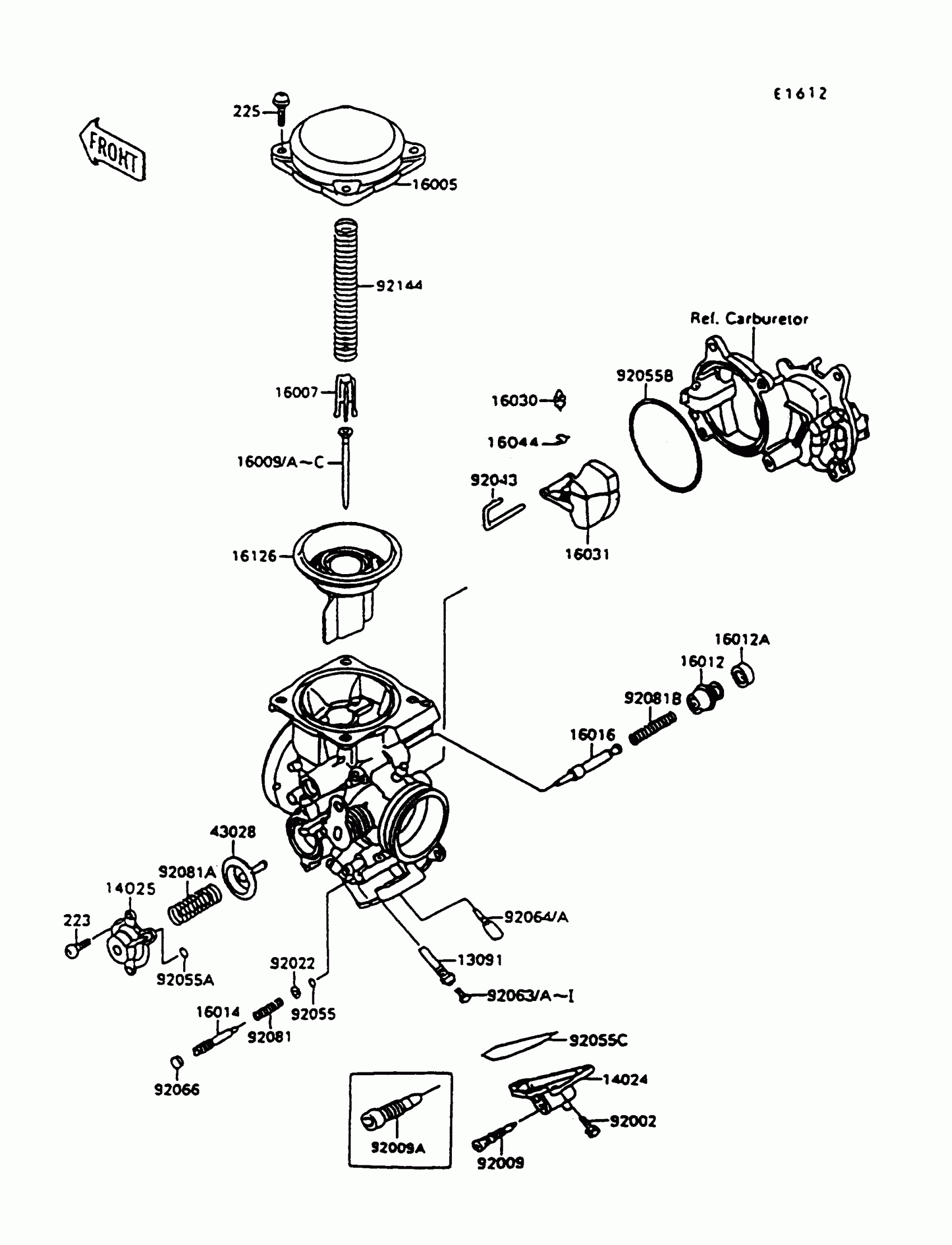

Kawasaki Vulcan 1500 L Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1513

Unavailable

14024

COVER,DRAIN

14024-1608

Unavailable

14025

COVER,AIR CUT VALVE

14025-1903

$59.59

16005

TOP-CHAMBER,MIXING

16005-1054

$46.10

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER

16016-1071

$55.55

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1066

$62.11

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1203

$269.55

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

92002

BOLT,4X14

92002-1761

Unavailable

92009

SCREW,DRAIN,M6X1.0

92009-1434

$11.33

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN

92022-1003

$3.29

92043

PIN,FLOAT

92043-1285

$17.20

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O

92055-1245

$4.23

92055B

RING-O

92055-1291

$17.58

92055C

RING-O,DRAIN COVER

92055-1400

$20.19

92063A

JET-MAIN,#118

92063-1071

$14.02

92063B

JET-MAIN,#120

92063-1072

$14.02

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.00

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92063G

JET-MAIN,#112

92063-1117

$14.02

92063I

JET-MAIN,#115

92063-1118

$14.02

92064

JET-PILOT,#42

92064-1135

$20.10

92064A

JET-PILOT,#40

92064-1136

$20.10

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,AIR CUT VALVE

92081-1719

$12.05

92081B

SPRING,STARTER PLUNGER

92081-1761

$9.31

92144

SPRING,VACUUM VALVE

92144-1219

$20.12

16009

NEEDLE-JET,RR,N53T

16009-1361

$34.52

16009A

NEEDLE-JET,FR,N53S

16009-1362

Unavailable

16009B

NEEDLE-JET,RR,N53V

16009-1363

Unavailable

16009C

NEEDLE-JET,FR,N53U

16009-1364

Unavailable

92063

JET-MAIN,#118

92063-1071

$14.02

92063C

JET-MAIN,#122

92063-1073

$14.02

92063D

JET-MAIN,#110

92063-1114

$14.02

92063E

JET-MAIN,#108

92063-1116

$14.02

92063F

JET-MAIN,#112

92063-1117

$14.02

92063H

JET-MAIN,#115

92063-1118

$14.02
