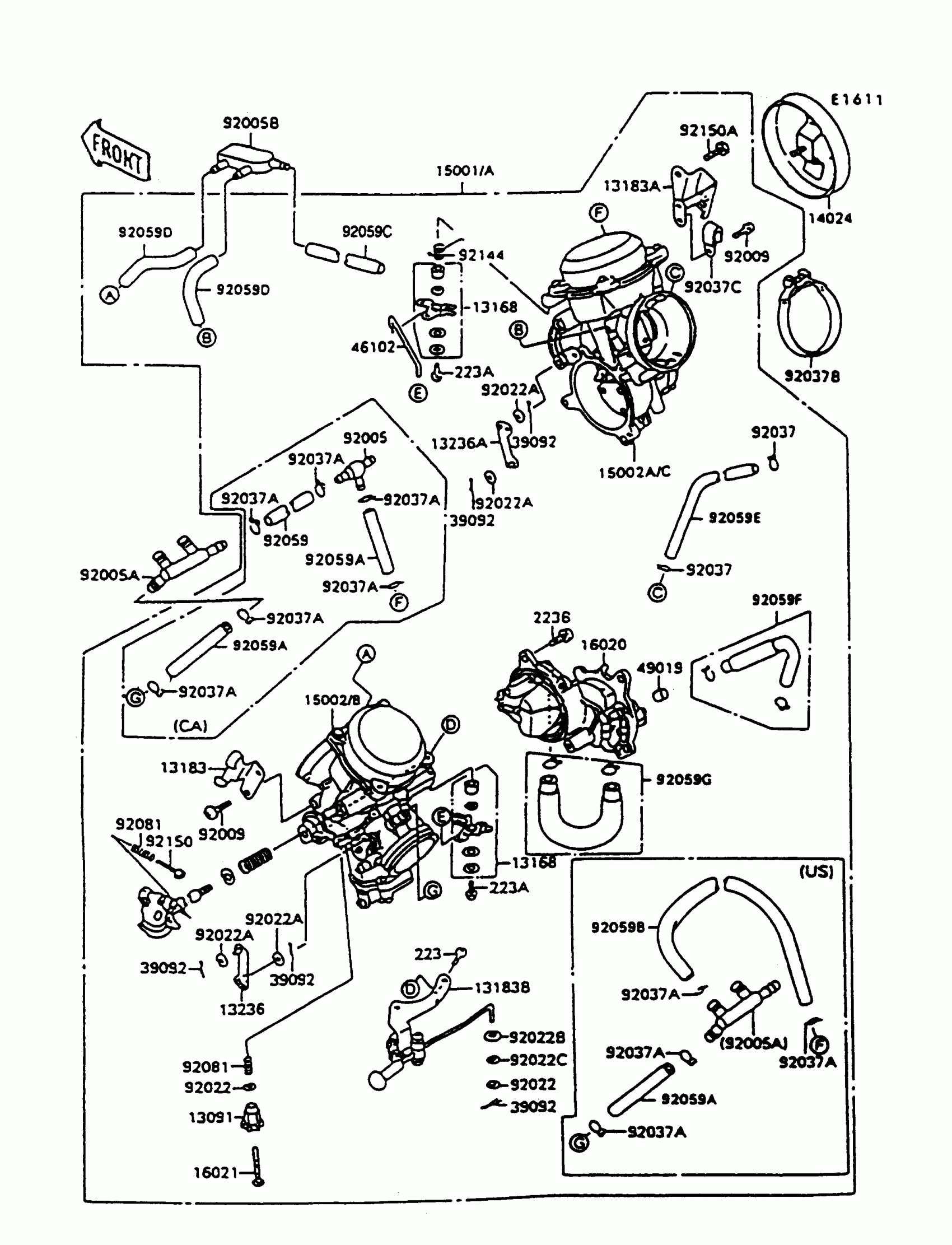

Kawasaki Vulcan 1500 L Carburetor Diagram

#

Description
Price

13091

HOLDER,THROTTLE STOP SCREW

13091-1382

$17.39

13168

LEVER,STARTER

13168-1384

Unavailable

13183

PLATE,THROTTLE CABLE

13183-1213

Unavailable

13183A

PLATE,COVER

13183-1215

Unavailable

13183B

PLATE,STARTER

13183-1244

Unavailable

13236

LEVER-COMP,LINK,RR

13236-1165

Unavailable

13236A

LEVER-COMP,LINK,FR

13236-1166

Unavailable

14024

COVER

14024-1586

Unavailable

16020

CHAMBER-FLOAT

16020-1059

Unavailable

16021

SCREW-THROTTLE STOP

16021-1122

Unavailable

39092

PIN-HAIR

39092-1051

$3.53

46102

ROD,STARTER

46102-1232

Unavailable

49019

FILTER-FUEL

49019-1059

$11.77

92005A

FITTING

92005-1164

Unavailable

92005B

FITTING

92005-1165

$34.40

92009

SCREW,5X10

92009-1365

$7.34

92022

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92022A

WASHER,3.1X8X0.5,POLYACETAL

92022-1676

$4.78

92022B

WASHER,4.3X9.0X1.0,POLYACETAL

92022-1913

Unavailable

92022C

WASHER,5.0X7.5X1.0,POLYACETAL

92022-1914

Unavailable

92037

CLAMP,TUBE

92037-1142

$4.31

92037B

CLAMP

92037-1637

$9.05

92037C

CLAMP

92037-1958

$16.08

223

SCREW-PAN-WS-CROS,4X20

223C0420

$4.30

223A

SCREW-PAN-WS-CROS

223D0425

$2.58

223B

SCREW-PAN-WS-CROS,5X12

223D0512

$1.91

92059D

TUBE,7X11X160

92059-1883

$42.12

92059E

TUBE,3X7X750

92059-1884

Unavailable

92059F

TUBE,5.3X10.5X190

92059-1885

Unavailable

92059G

TUBE,5.3X10.5X140

92059-1886

Unavailable

92081

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92144

SPRING

92144-1220

Unavailable

92150

BOLT,4X20

92150-1032

Unavailable

92150A

BOLT,10X16

92150-1033

$7.78

15001

CARBURETOR-ASSY

15001-1336

$1,650.67

15001A

CARBURETOR-ASSY

15001-1354

$1,650.67

15002

CARBURETOR,RR

15002-1565

$959.91

15002A

CARBURETOR,FR

15002-1566

$959.91

15002B

CARBURETOR,RR

15002-1567

Unavailable

15002C

CARBURETOR,FR

15002-1568

Unavailable

92005

FITTING,FUEL,T-TYPE

92005-1112

$14.10

92037A

CLAMP,TUBE

92037-1477

$4.31

92037A

CLAMP,TUBE

92037-1477

$4.31

92059

TUBE,5X9X180

92059-1377

$25.03

92059A

TUBE,5X9X35

92059-1880

$21.48

92059A

TUBE,5X9X35

92059-1880

$21.48

92059B

TUBE,5X9X245

92059-1881

Unavailable

92059C

TUBE,7X11X460

92059-1882

Unavailable
