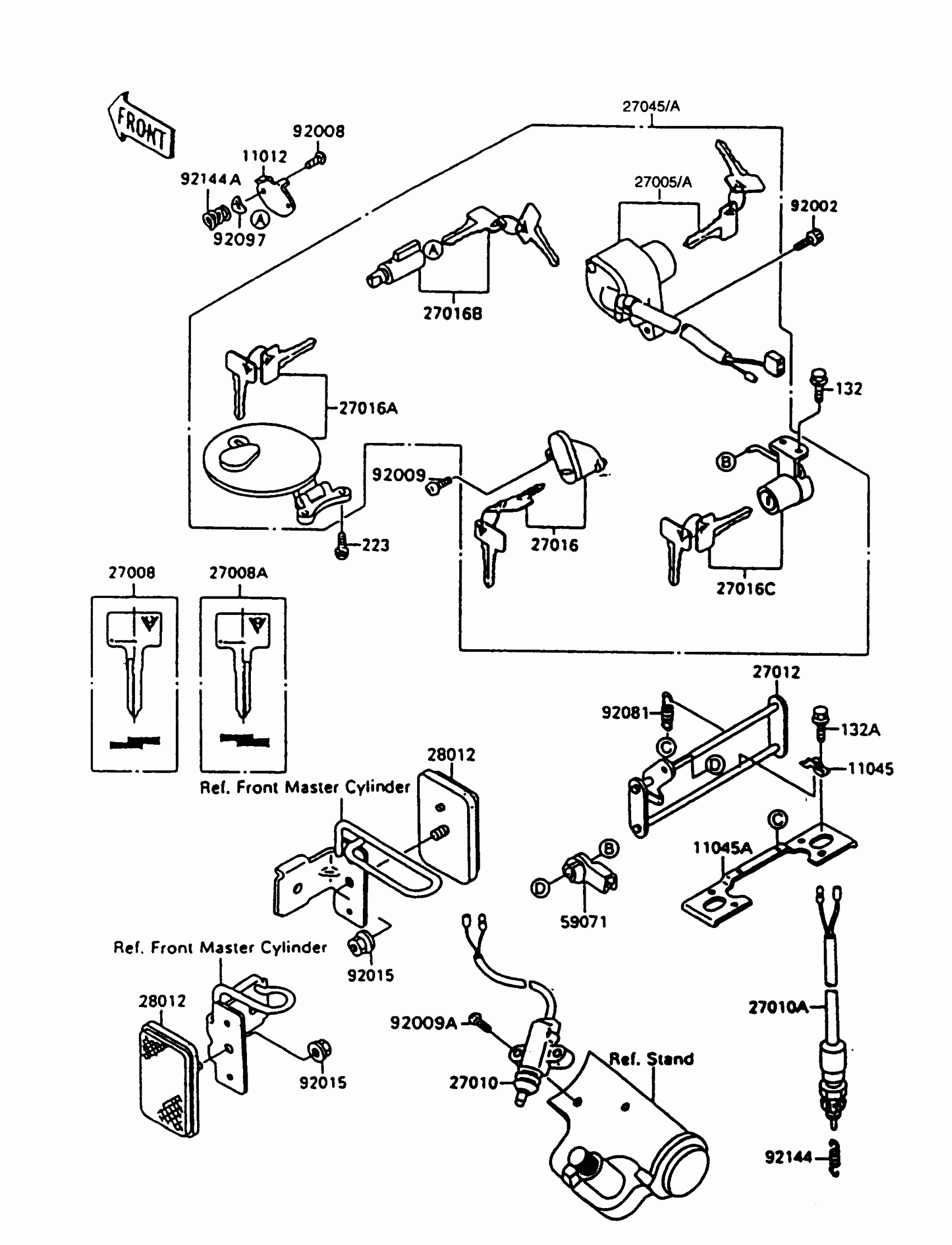

Kawasaki Vulcan 1500 Ignition Switch/Locks/Reflectors Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X8

132G0608

$2.33

132A

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

223

SCREW-PAN-WS-CROS

223B0410

$0.67

11012

CAP,STEERING LOCK

11012-1586

$7.73

11045

BRACKET,SEAT HOOK

11045-1700

$6.82

11045A

BRACKET,SEAT HOOK

11045-1701

Unavailable

27005A

SWITCH-ASSY-IGNITION

27005-1205

$172.06

27008

KEY-LOCK,BLANK,#A

27008-1138

$20.87

27008A

KEY-LOCK,BLANK,#B

27008-1139

$20.87

27010

SWITCH,SIDE STAND

27010-1223

$72.14

27010A

SWITCH,REAR BRAKE

27010-1238

Unavailable

27012

HOOK,SEAT

27012-1371

Unavailable

27016

LOCK-ASSY,HELMET

27016-5129

$67.81

27016A

LOCK-ASSY,FUEL TANK COVER

27016-5130

Unavailable

27016B

LOCK-ASSY,STEERING

27016-5131

$85.90

27016C

LOCK-ASSY,SEAT

27016-5132

Unavailable

27045A

SWITCH-ASSY

27045-5046

$492.51

28012

REFLECTOR-REFLEX,FR

28012-1009

$26.23

59071

JOINT

59071-1103

$8.68

92002

BOLT,SOCKET,5X12

92002-1173

Unavailable

92008

SCREW,3.51MM

92008-007

$4.11

92009

SCREW,5X12

92009-1296

$3.92

92009A

SCREW,5X20

92009-1459

$4.38

92015

NUT,FLANGED,5MM

92015-1656

$3.21

92081

SPRING,HOOK RETURN

92081-1466

$8.51

92097

WASHER,WAVE

92097-003

$4.50

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92144A

SPRING,STEERING LOCK

92144-1222

$4.46
