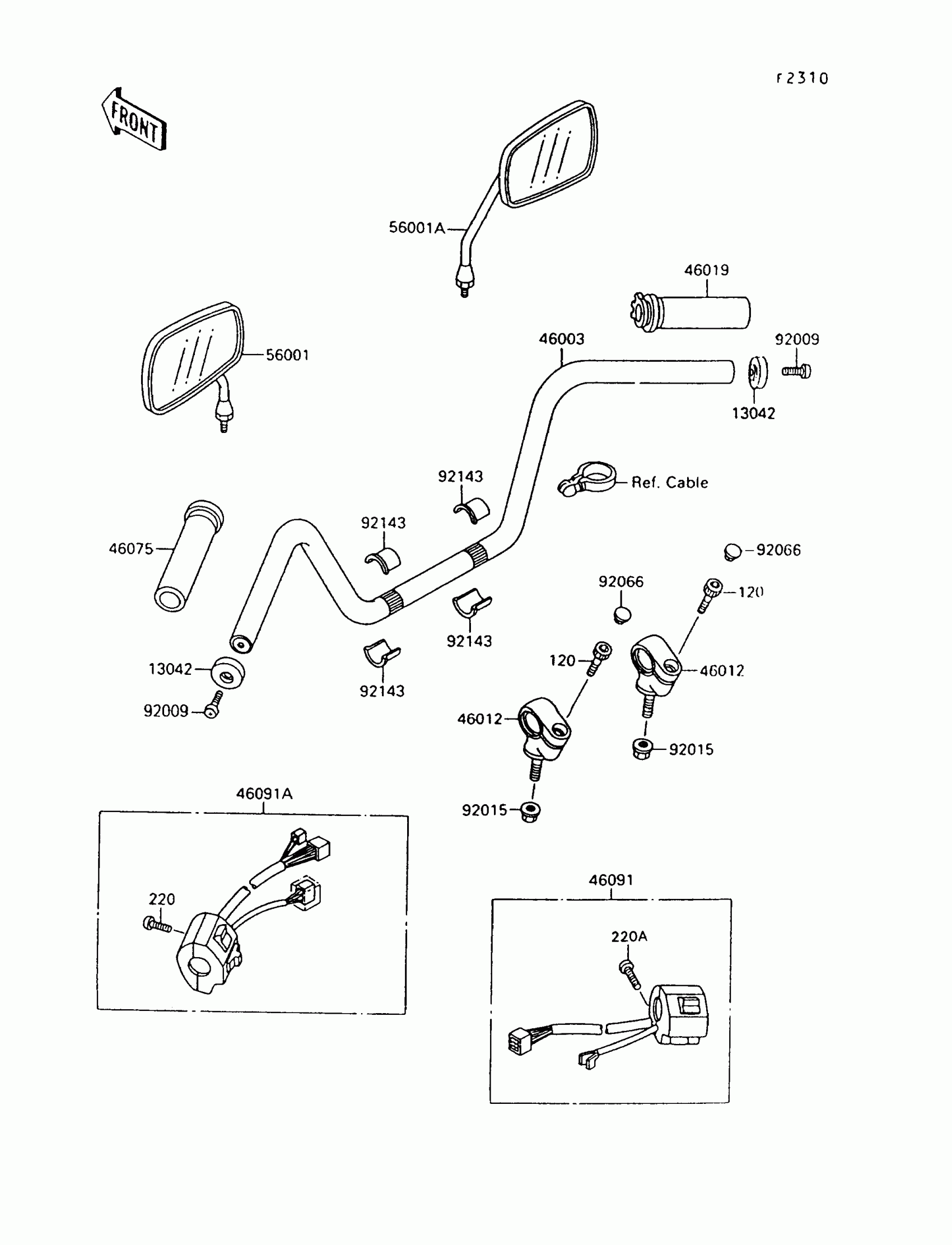

Kawasaki Vulcan 1500 Handlebar Diagram

Description

Price

120

BOLT-SOCKET,10X25

120P1025

Unavailable

220

SCREW-PAN-CROS,5X14

220E0514

$3.22

220A

SCREW-PAN-CROS,5X16

220E0516

$4.11

13042

WEIGHT,HANDLE

13042-1068

$35.38

46003

HANDLE

46003-1243

$150.69

46012

HOLDER-HANDLE

46012-1171

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1065

$41.45

46075

GRIP,LH

46075-1074

$24.48

46091

HOUSING-ASSY-CONTROL,RH

46091-1448

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1449

Unavailable

56001

MIRROR-ASSY,LH

56001-1303

$87.61

56001A

MIRROR-ASSY,RH

56001-1304

$81.59

92009

SCREW,8X20

92009-1484

$5.59

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92066

PLUG

92066-1285

$7.77

92143

COLLAR,HANDLE HOLDER

92143-1098

$9.75
