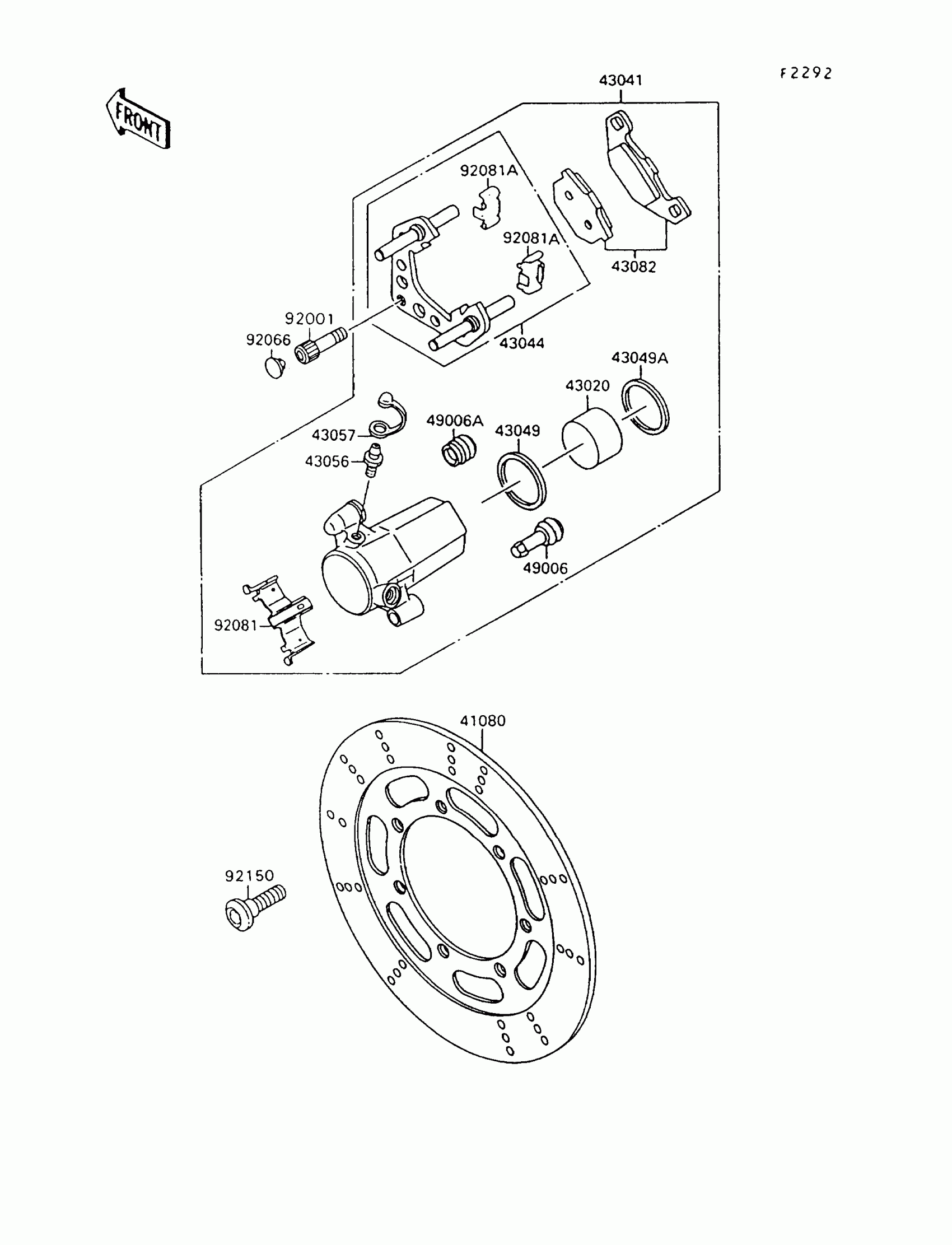

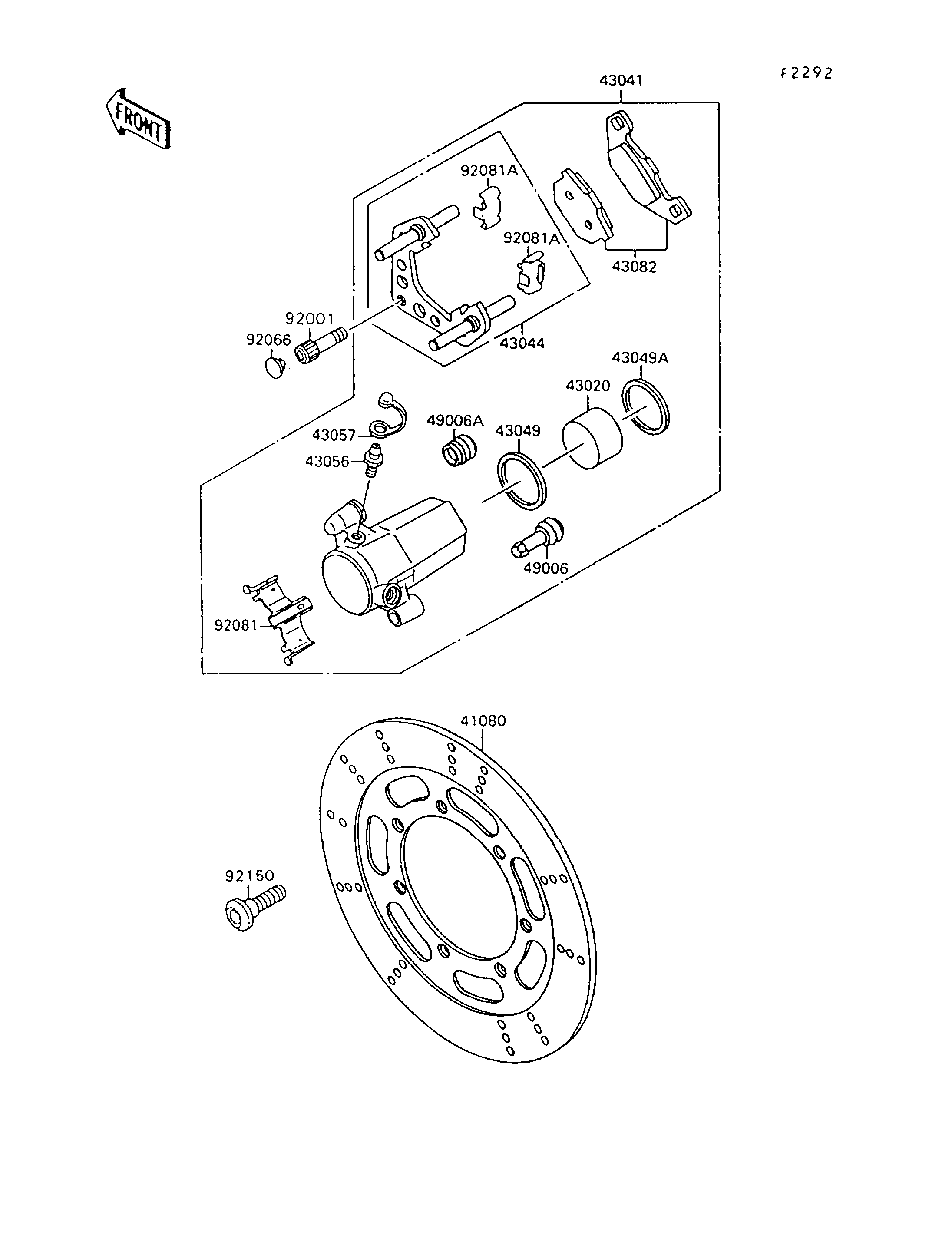

Kawasaki Vulcan 1500 Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1186

Unavailable

43020

PISTON-COMP-BRAKE

43020-1066

$105.36

43041

CALIPER-ASSY,FR,LH,SILVER NO.1

43041-1587-GN

$582.40

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1102

$186.26

43049

PACKING,PISTON SEAL

43049-002

$13.90

43049A

PACKING,PISTON

43049-1028

$12.65

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1029

$58.88

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92001

BOLT,SOCKET,10X33

92001-1901

$10.62

92066

PLUG

92066-1285

$7.77

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
