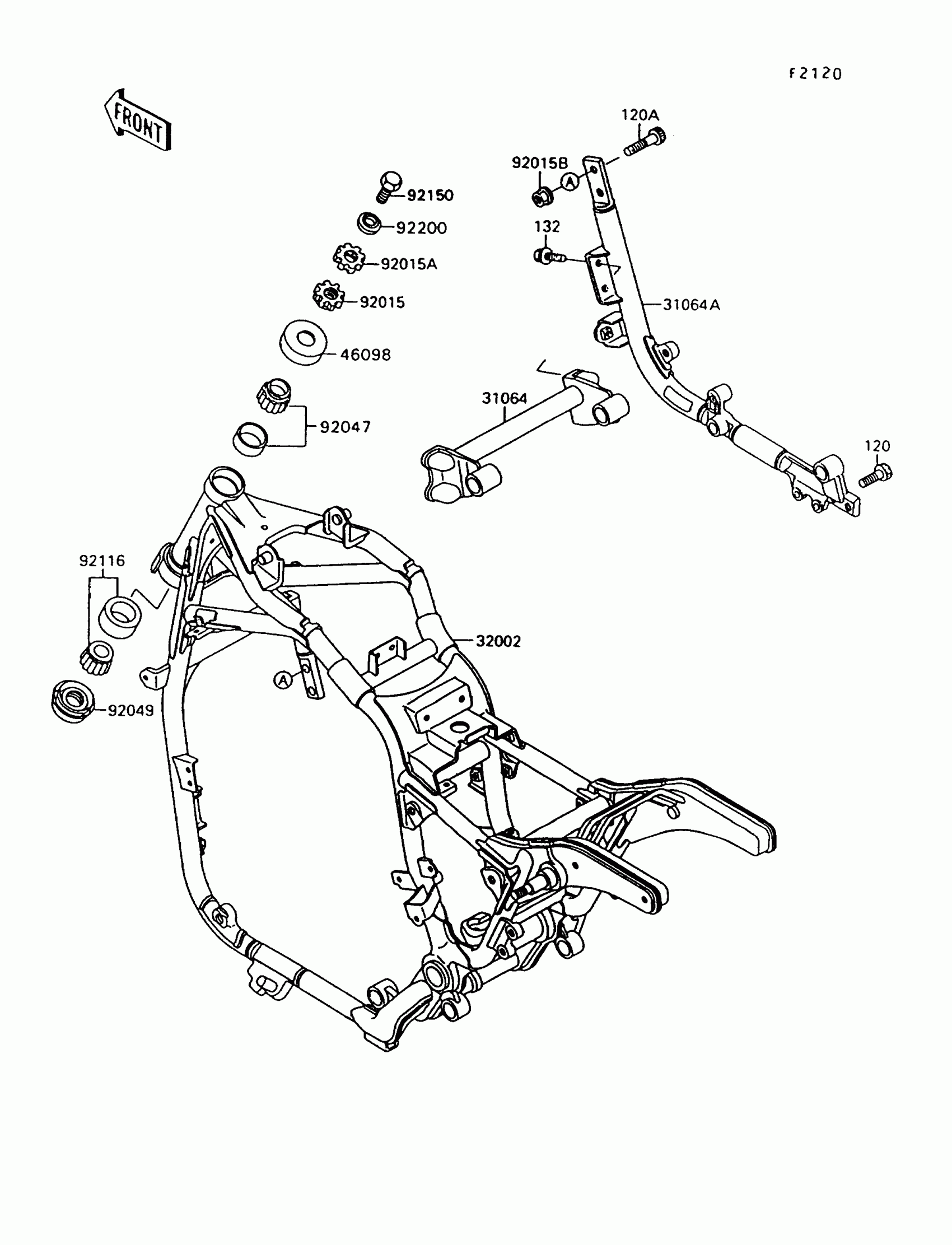

Kawasaki Vulcan 1500 Frame Diagram

Description

Price

120

BOLT-SOCKET,10X20

120S1020

$5.44

120A

BOLT-SOCKET,10X30

120S1030

$6.22

132

BOLT-FLANGED-SMALL,8X16

132J0816

$3.84

31064

PIPE-COMP,FRAME,CROSS

31064-1083

Unavailable

31064A

PIPE-COMP,FRAME,RH

31064-1084

Unavailable

32002

FRAME-COMP

32002-1987

Unavailable

46098

CAP,STEERING STEM

46098-017

$6.16

92015

NUT,25MM,T=10

92015-1377

$27.29

92015A

NUT,25MM,T=6

92015-1378

$20.96

92015B

NUT,FLANGED,10MM

92015-1669

Unavailable

92047

RACE,ROLLER,32005JR RS

92047-017

$43.75

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92150

BOLT,14X25

92150-1672

$14.23

92200

WASHER

92200-1140

$11.50
