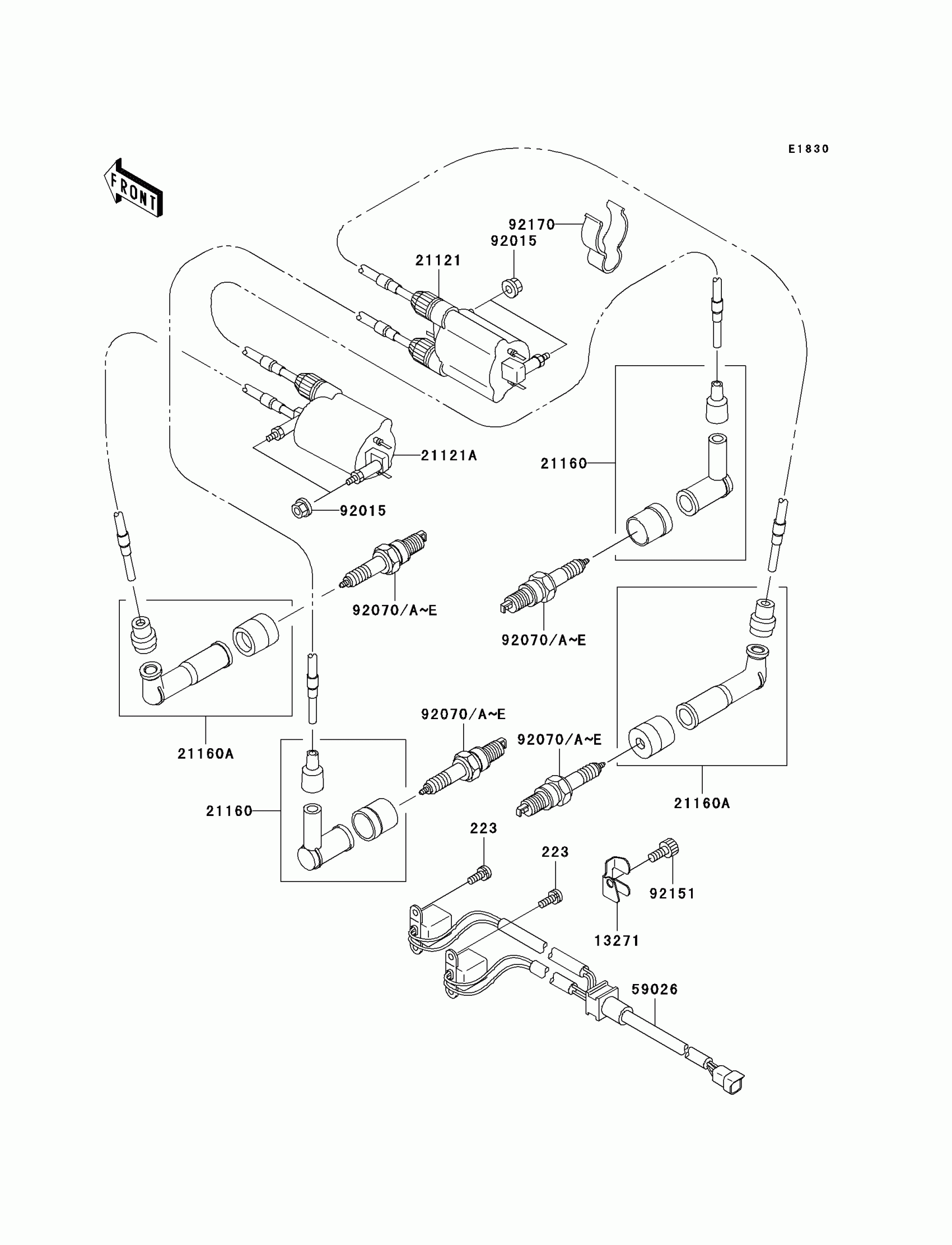

Kawasaki Vulcan 1500 Drifter Ignition System Diagram

Description

Price

223

SCREW-PAN-WS-CROS,5X16

223B0516

$5.19

13271

PLATE

13271-1339

$3.74

21121

COIL-IGNITION,RR

21121-1288

$149.76

21121A

COIL-IGNITION,FR

21121-1289

$149.76

21131

GROMMET,HIGH TENSION

21131-005

$6.16

21132

GROMMET,HIGH TENSION

21132-005

$4.26

21160

CAP-ASSY-PLUG

21160-1085

$30.12

21160A

CAP-ASSY-PLUG

21160-1091

$30.91

59026

COIL-PULSING

59026-1158

$124.50

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92070

Not Available As Spare Part - Friction Washer

Unavailable

92070A

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

Unavailable

92070B

PLUG-SPARK,DPR6EA9(NGK)

92070-1138

$3.62

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92070D

PLUG-SPARK,DPR5EA9(NGK)

92070-1250

Unavailable

92070E

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,PLUG CAP

92071-1184

$6.16

92151

BOLT,6X10

92151-3704

$4.20

92170

CLAMP,HOSE

92170-1930

$9.47

92210

NUT,CAP,6MM

92210-0003

$0.64
