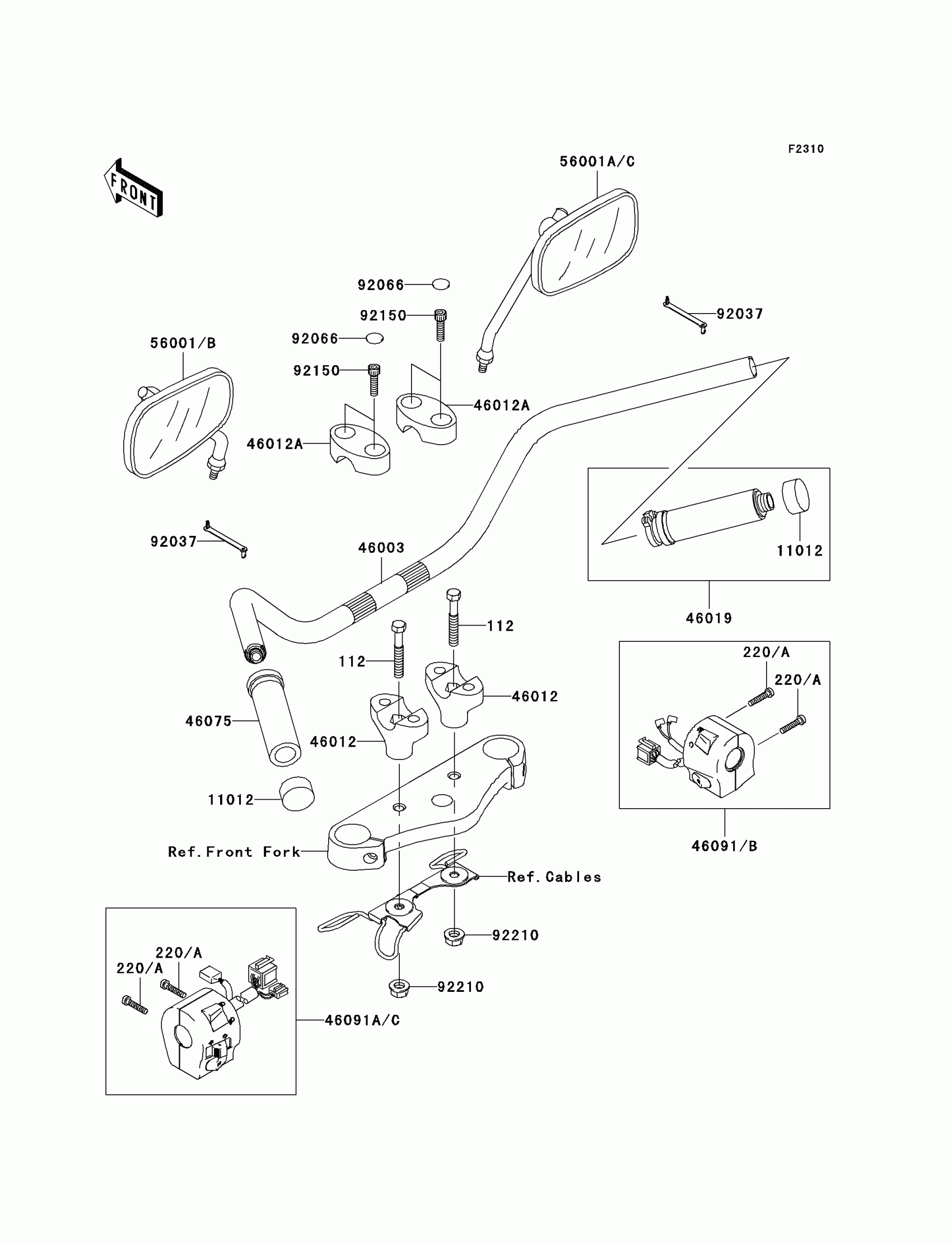

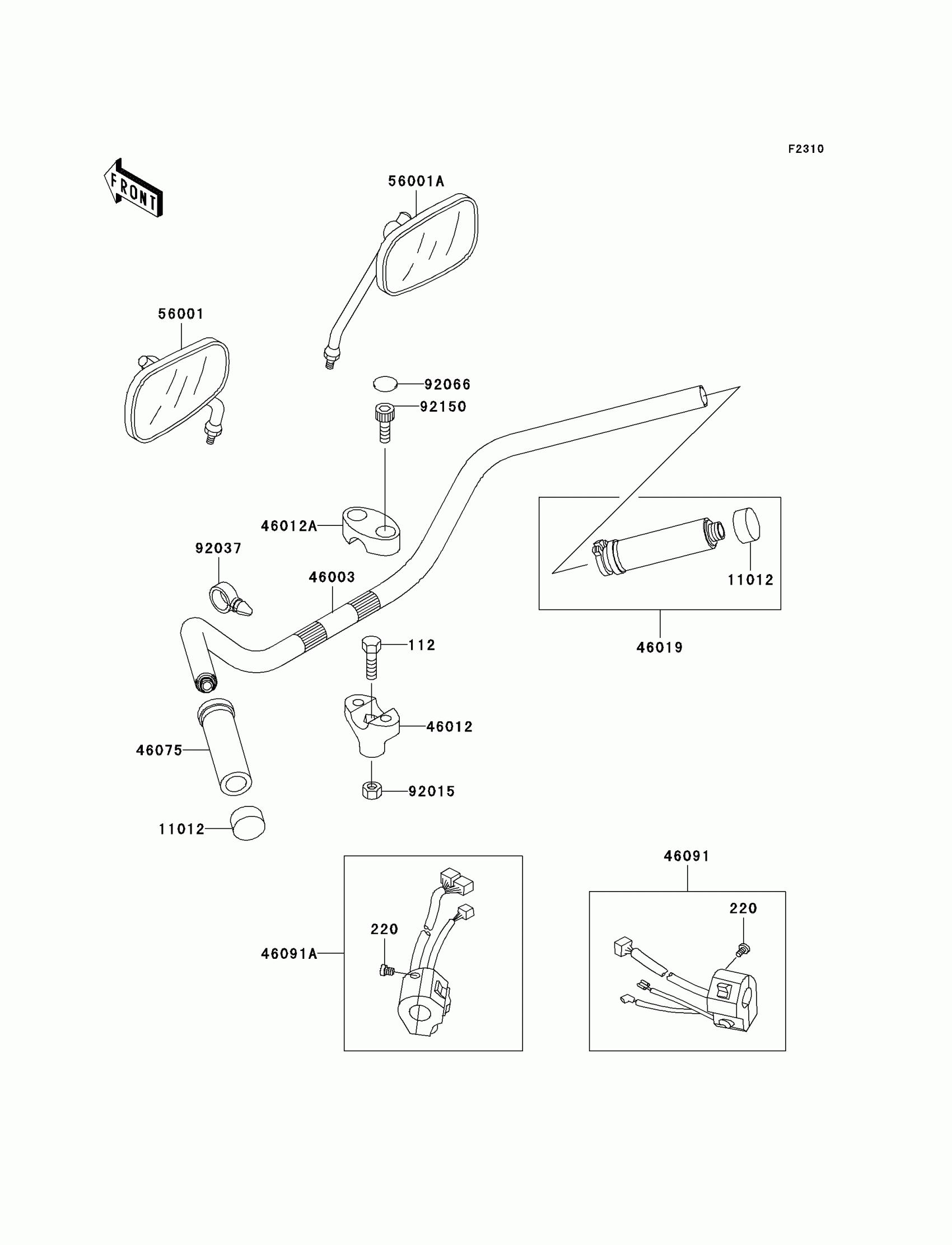

Kawasaki Vulcan 1500 Drifter Handlebar Diagram

Description

Price

112

BOLT-UPSET,10X65

112H1065

$7.20

220

SCREW-PAN-CROS,5X25

220C0525

$3.52

11012

CAP,GRIP END

11012-1975

$20.44

46003

HANDLE

46003-1508

Unavailable

46012

HOLDER-HANDLE,LWR

46012-1291

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1292

$79.19

46019

GRIP-ASSY,THROTTLE

46019-1109

$69.36

46075

GRIP,LH

46075-1074

$24.48

46091

HOUSING-ASSY-CONTROL,RH

46091-1759

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1783

Unavailable

56001

MIRROR-ASSY,LH

56001-1503

$68.36

56001A

MIRROR-ASSY,RH

56001-1504

$68.36

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92037

CLAMP,HOSE

92037-1827

$7.45

92066

PLUG

92066-1285

$7.77

92150

BOLT,SOCKET,10X23

92150-1942

$7.34
