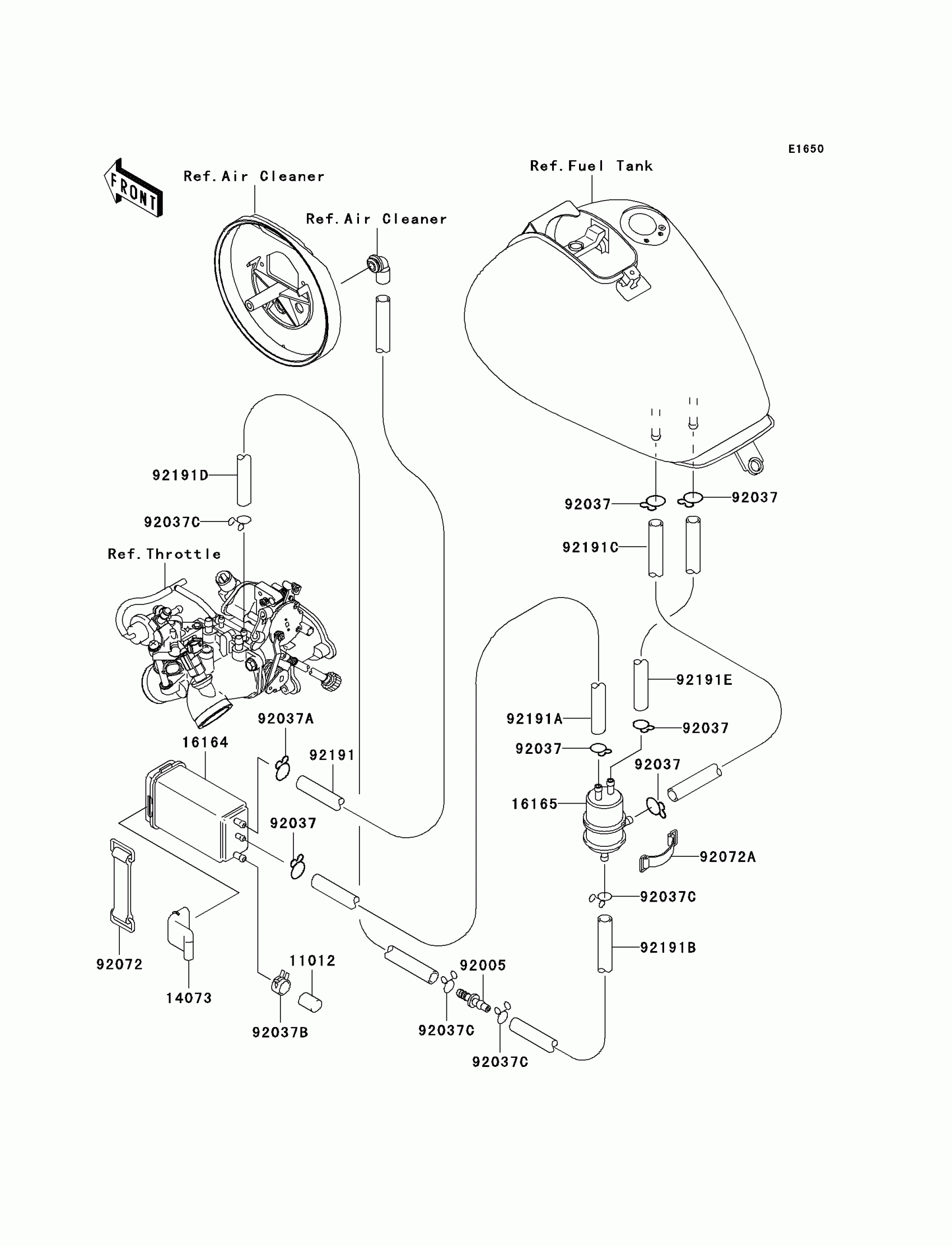

Kawasaki Vulcan 1500 Drifter Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

14073

DUCT,CANISTER

14073-1219

$20.80

16164

CANISTER

16164-1070

$145.42

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1206

$8.68

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92072

BAND,L=150

92072-1188

$13.75

92072A

BAND,L=50

92072-1419

$16.08

92191

TUBE,CANISTER-CLEANER,GREEN

92191-1304

Unavailable

92191A

TUBE,SEPARATOR-CANISTER,BLUE

92191-1305

Unavailable

92191B

TUBE,THROTTLE-SEPARATOR,WHITE

92191-1375

$24.55

92191C

TUBE,TANK-SEPARATER,RED

92191-1413

Unavailable

92191D

TUBE,4X9X180,WHITE

92191-1414

$5.54

92191E

TUBE,TANK-SEPARATOR,BLUE

92191-1424

Unavailable
