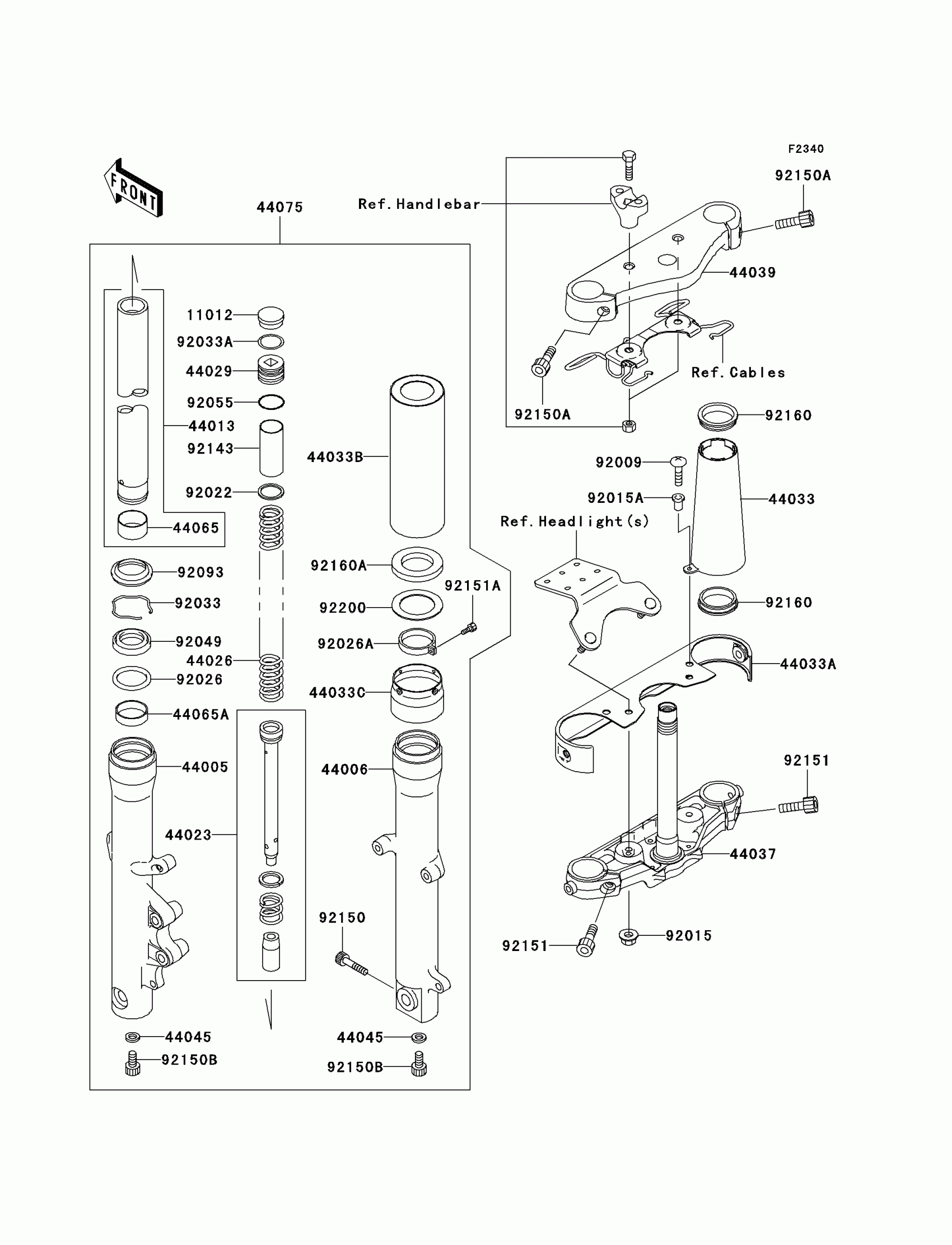

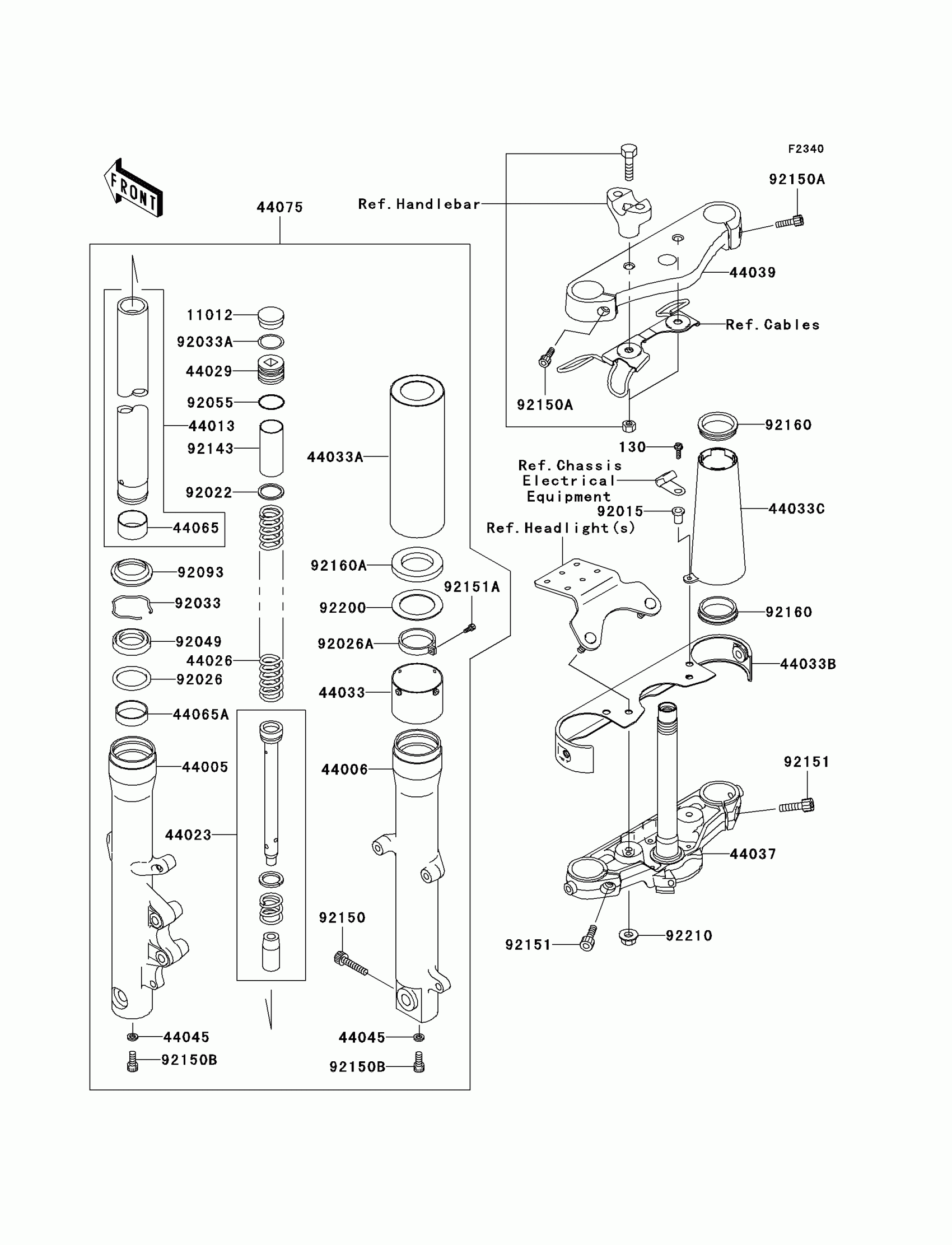

Kawasaki Vulcan 1500 Drifter Front Fork Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1618

$25.14

44005

PIPE-LEFT FORK OUTER

44005-1393

Unavailable

44006

PIPE-RIGHT FORK OUTER

44006-1392

Unavailable

44013

PIPE-FORK INNER

44013-1459

Unavailable

44023

CYLINDER-SET-FORK

44023-1131

$133.68

44026

SPRING-FRONT FORK

44026-1689

$103.60

44029

SEAT-FORK SPRING

44029-1125

$42.88

44033

COVER-FORK

44033-1239

$95.88

44033A

COVER-FORK

44033-1240

Unavailable

44033B

COVER-FORK

44033-1241

$104.22

44033C

COVER-FORK

44033-1252

$24.25

44037

HOLDER-FORK UNDER

44037-1383

Unavailable

44039

HOLDER-FORK UPPER

44039-1287

Unavailable

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1126

$21.42

44065A

BUSHING-FRONT FORK

44065-1127

$22.46

44075

DAMPER-SET-FORK

44075-1087

Unavailable

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015A

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER

92022-1909

$11.49

92026

SPACER,FORK OUTER

92026-1276

$9.51

92026A

SPACER

92026-1515

$15.83

92033

RING-SNAP

92033-1222

$6.51

92033A

RING-SNAP,SPRING SEAT

92033-1223

$6.82

92049

SEAL-OIL,FORK

92049-1363

$25.52

92055

RING-O,SPRING SEAT

92055-1363

$7.34

92093

SEAL,FORK

92093-1268

$24.97

92143

COLLAR,FORK,L=100

92143-1923

$19.30

92150

BOLT,SOCKET,10X40

92150-1029

$11.07

92150A

BOLT,SOCKET,8X30

92150-1031

$9.63

92150B

BOLT,SOCKET,8X18

92150-1432

$9.91

92151

BOLT,SOCKET,10X25

92151-1083

$9.89

92151A

BOLT,SOCKET,4X16

92151-1356

$2.46

92160

DAMPER

92160-1892

$3.57

92160A

DAMPER

92160-1927

$7.91

92200

WASHER

92200-1417

$7.57
