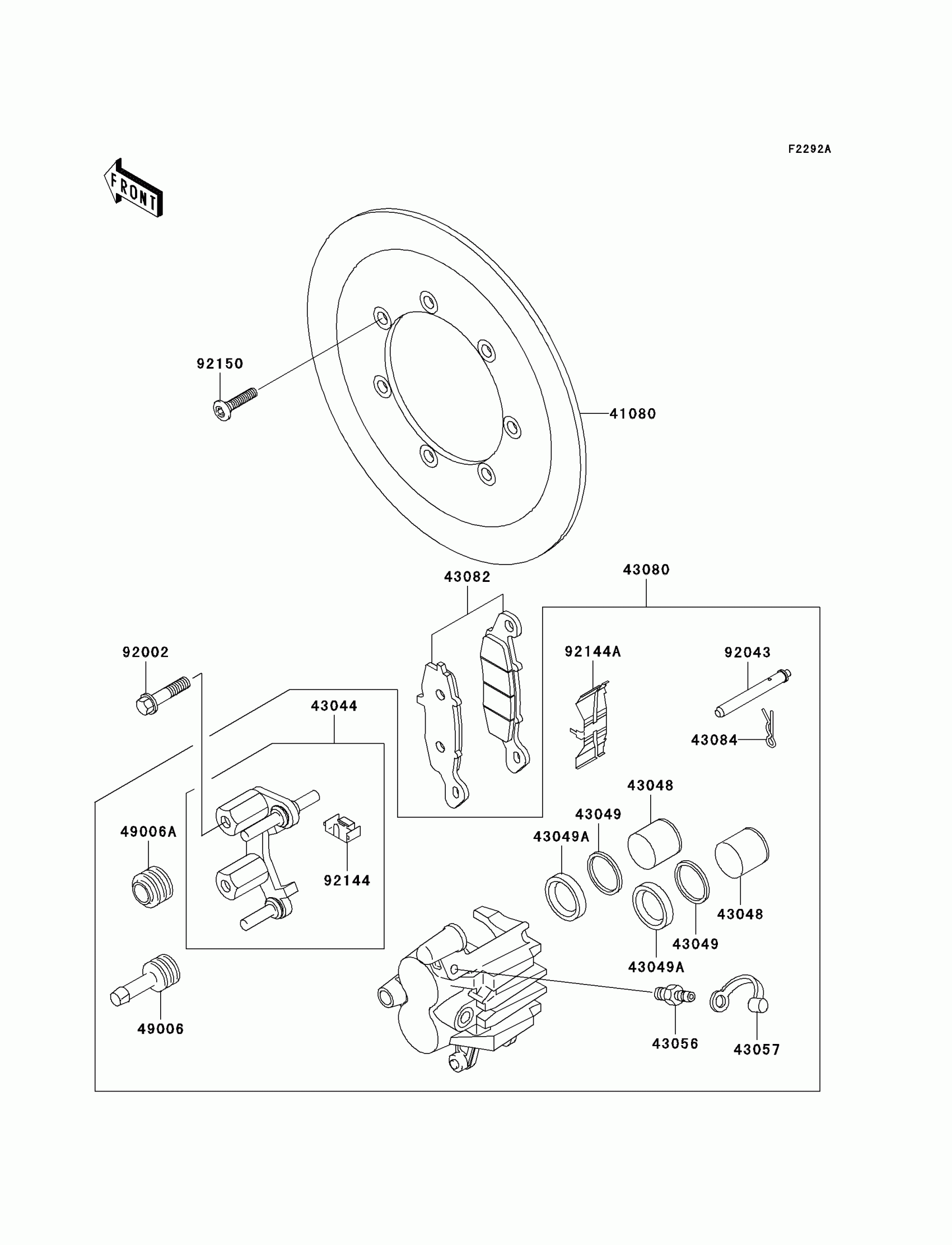

Kawasaki Vulcan 1500 Drifter Front Brake(R4/R5) Diagram

Description

Price

41080

DISC,SILVER

41080-0060-CM

$460.44

43044

HOLDER-COMP-CALIPER,FR

43044-1126

$183.72

43048

PISTON-CALIPER

43048-1073

$65.22

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-5096-GN

$428.20

43082

PAD-ASSY-BRAKE

43082-1234

$56.57

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,FLANGED,10X35

92002-1829

$7.90

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,LH

92144-1832

$26.35

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
