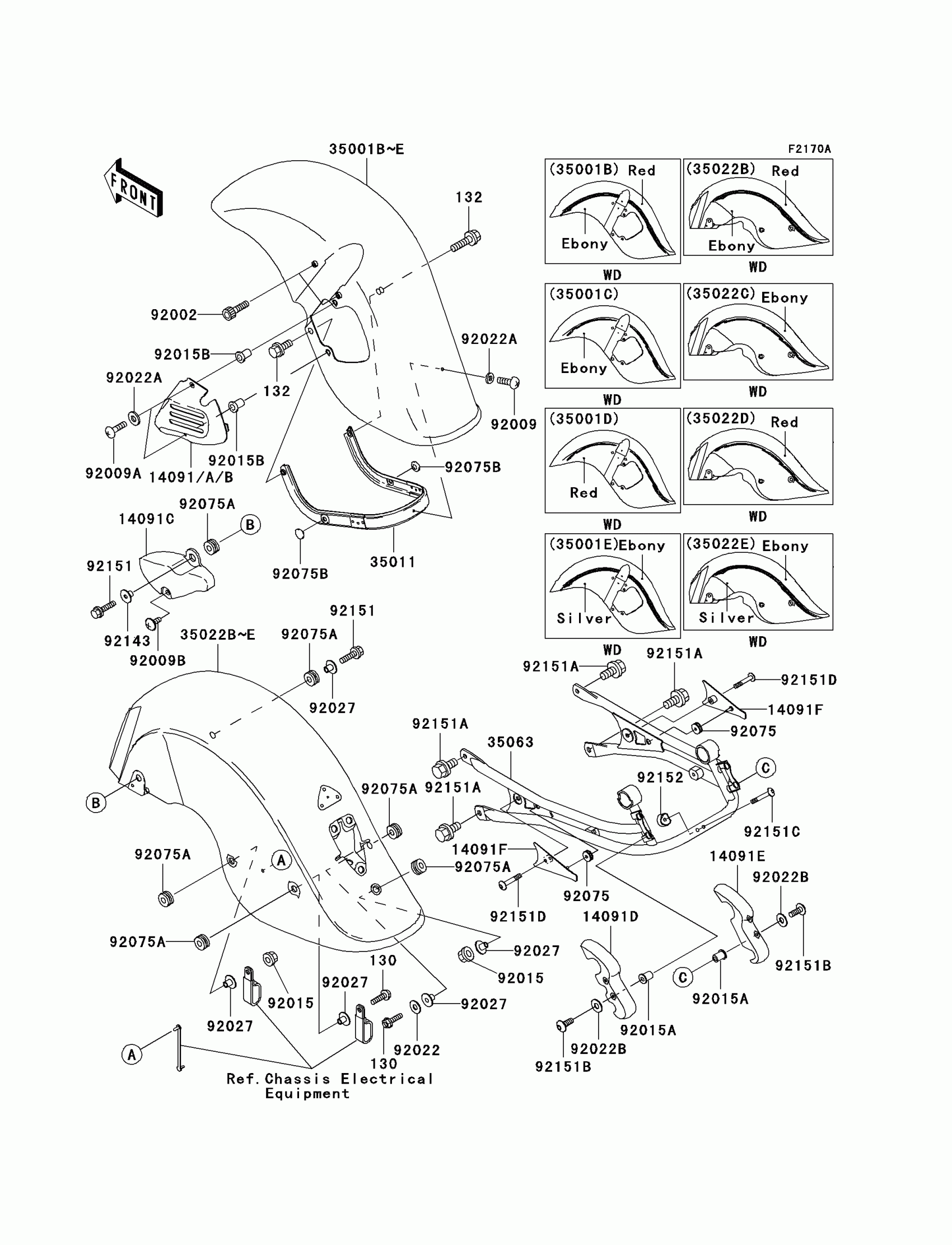

Kawasaki Vulcan 1500 Drifter Fenders(R2-R5) Diagram

#

Description
Price

14091B

COVER,FRONT CALIPER,G.SILVER

14091-1059-474

$104.83

14091C

COVER,COUPLER

14091-1071

$11.17

14091D

COVER,RR FENDER STAY,RR,LH

14091-1289

$35.20

14091E

COVER,RR FENDER STAY,RR,RH

14091-1291

Unavailable

14091F

COVER,RR FENDER STAY(L/R)

14091-1293

Unavailable

35001E

FENDER-ASSY-FRONT,SILVER/EBONY

35001-5063-686

$913.58

35011

STAY,FRONT FENDER

35011-1962

$79.68

35022E

FENDER-COMP-REAR,SILVER/EBONY

35022-5157-686

$1,054.62

35063

STAY,RR FENDER

35063-1147

$306.91

92002

BOLT,SOCKET,8X30

92002-1179

$5.53

92009

SCREW,5X12

92009-1652

$3.03

92009A

SCREW,5X16,BLACK

92009-1654

$2.17

92009B

SCREW,6X12

92009-1877

$1.80

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT

92015-1700

$6.55

92015B

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92022B

WASHER,6.5X16X1.0

92022-1654

$2.76

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92075

DAMPER

92075-1629

$3.81

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER,RUBBER

92075-261

$3.85

92143

COLLAR

92143-1960

$4.85

92151

BOLT,FLANGED,6X25

92151-1488

$2.84

92151A

BOLT,FLANGED,10X20

92151-1511

$3.58

92151B

BOLT,SOCKET,6X20

92151-1750

$2.03

92151C

BOLT,SOCKET,6X50

92151-1902

$7.61

130

BOLT-FLANGED,6X22,BLACK

130J0622

Unavailable

132

BOLT-FLANGED-SMALL,8X20

132E0820

$3.57

92151D

BOLT,SOCKET,6X40

92151-1921

$4.85

92152

COLLAR

92152-1283

$8.07
