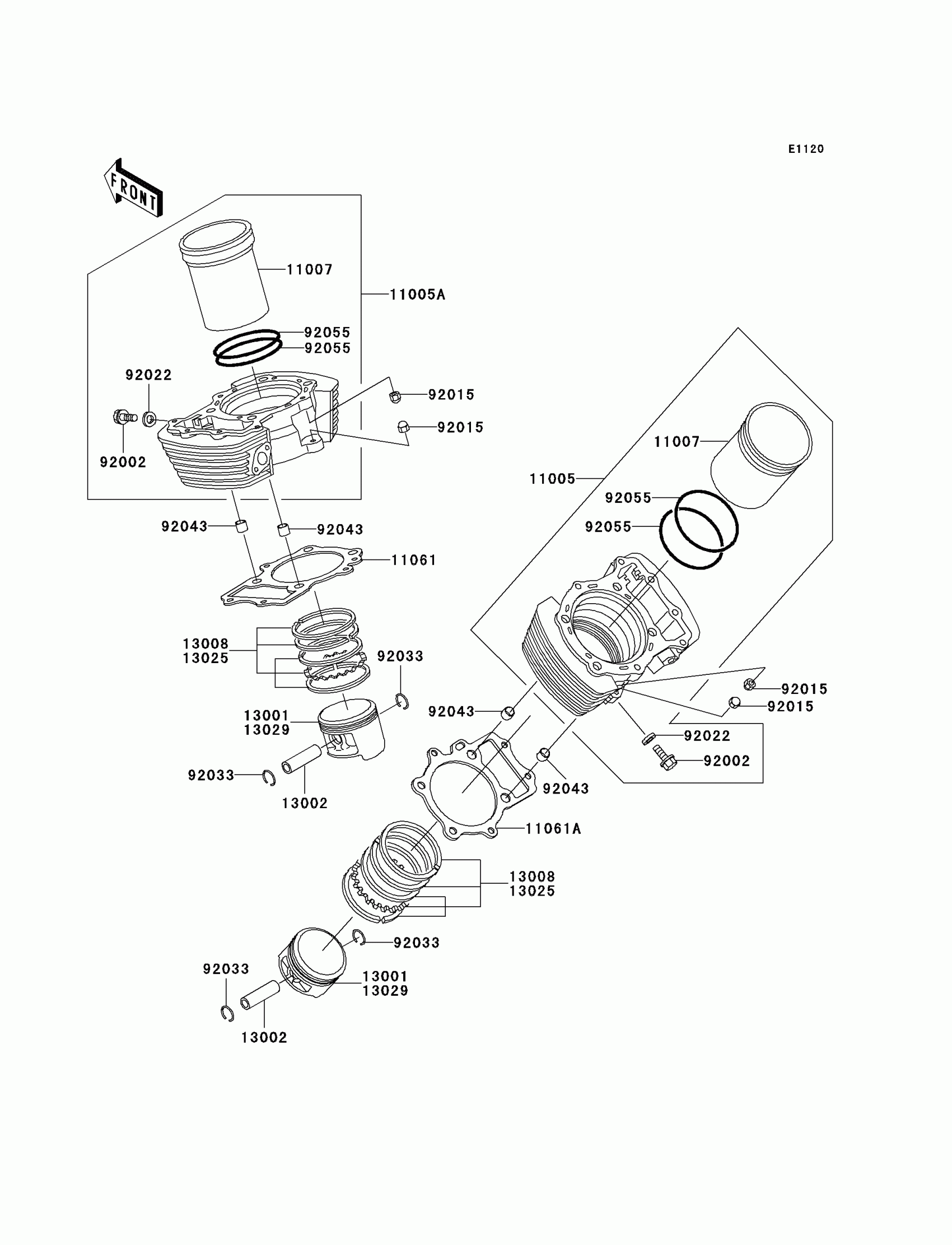

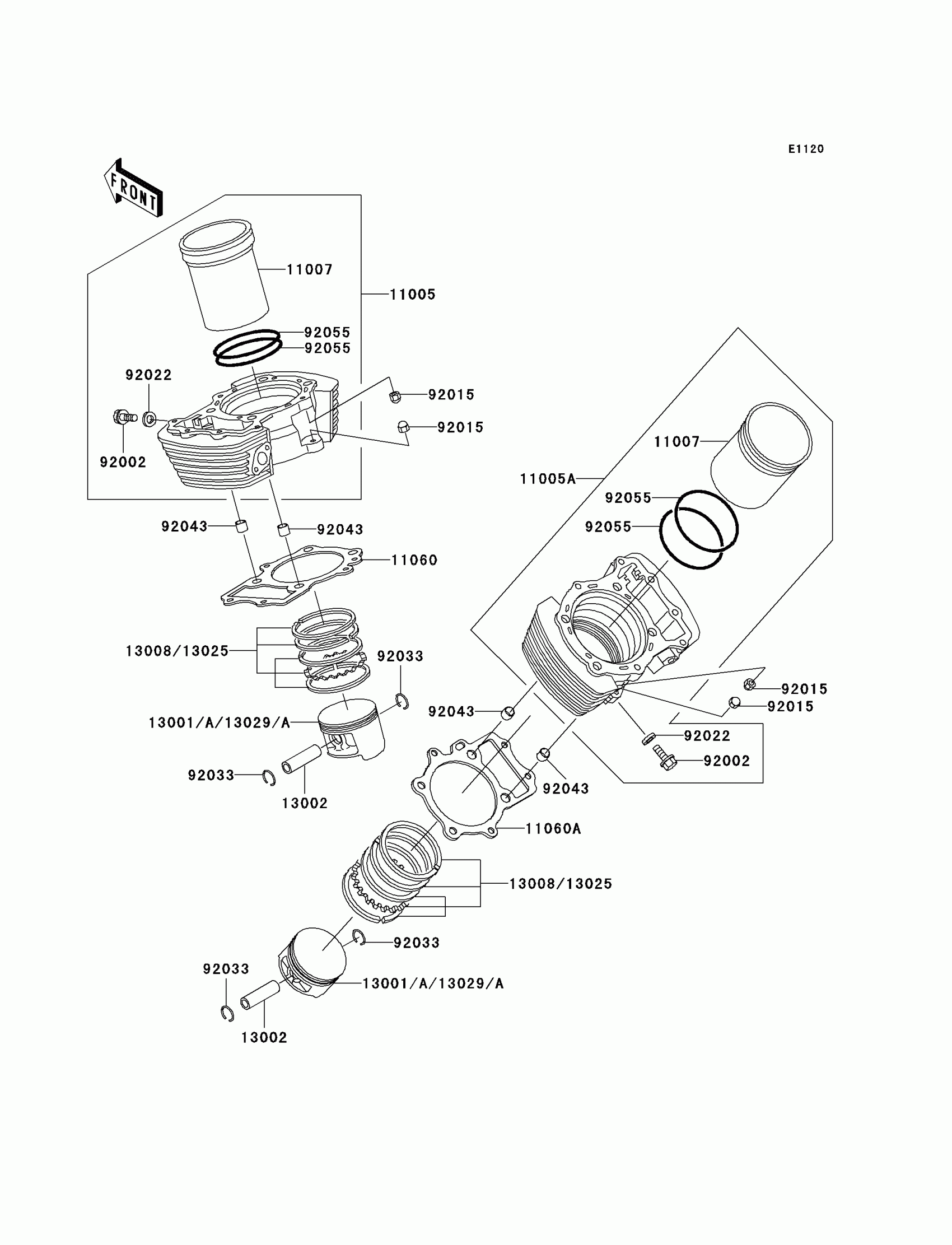

Kawasaki Vulcan 1500 Drifter Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,RR

11005-0008

$915.28

11005A

CYLINDER-ENGINE,FR

11005-1863

Unavailable

11007

LINER-CYLINDER

11007-1176

$205.35

11061

GASKET,CYLINDER BASE,FR

11061-1083

$17.20

11061A

GASKET,CYLINDER BASE,RR

11061-1084

$17.94

13001

PISTON-ENGINE,STD

13001-1617

$210.51

13002

PIN-PISTON

13002-1107

$37.85

13008

RING-SET-PISTON,STD

13008-1172

$96.45

13025

RING-SET-PISTON L,O/S 0.50

13025-1081

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1286

Unavailable

92002

BOLT,6X12

92002-1569

Unavailable

92015

NUT,CAP,8MM

92015-1370

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92033

RING-SNAP

92033-1226

$3.89

92043

PIN,13X16X14

92043-1608

$5.00

92055

RING-O,110.5X2.5

92055-1371

$10.65
