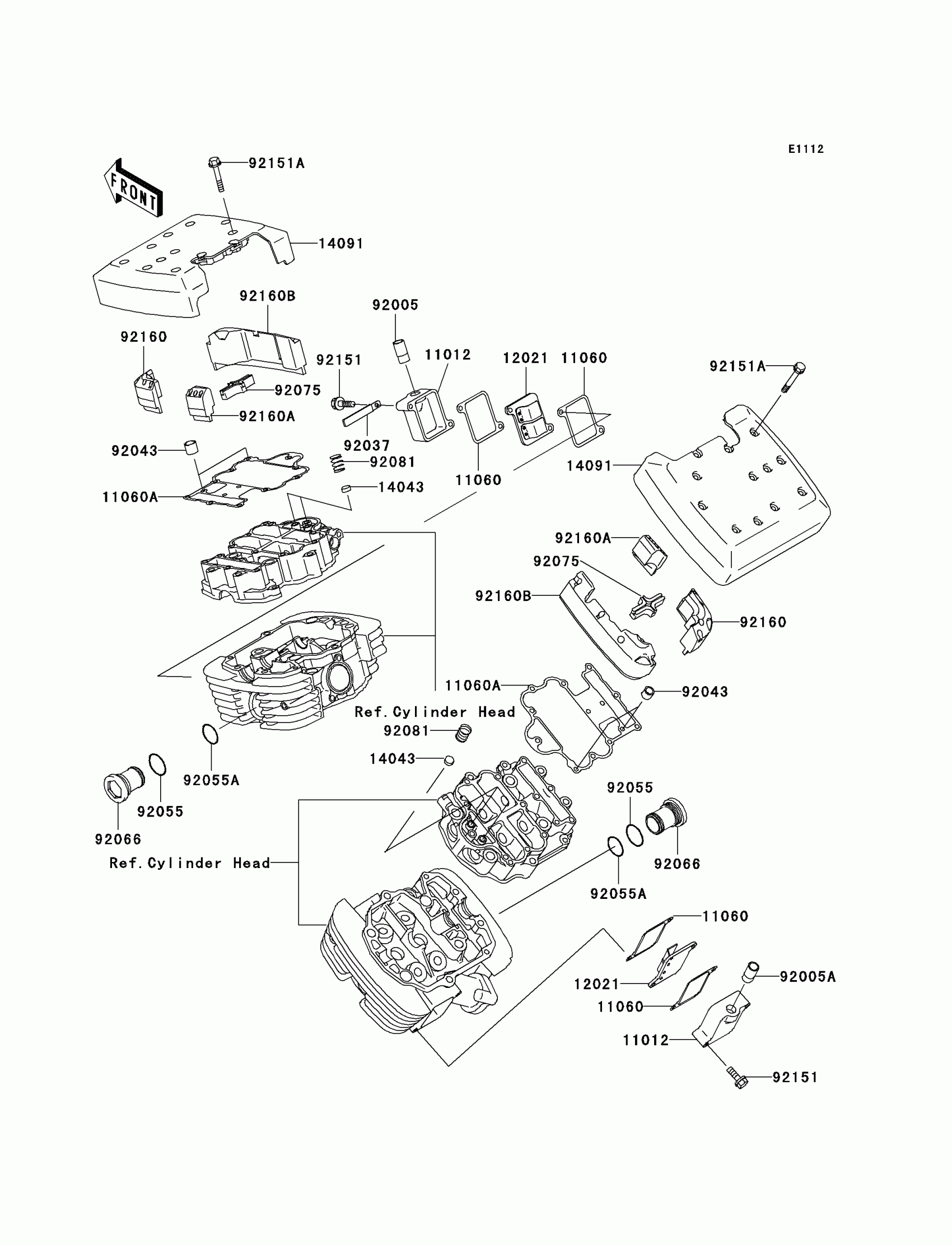

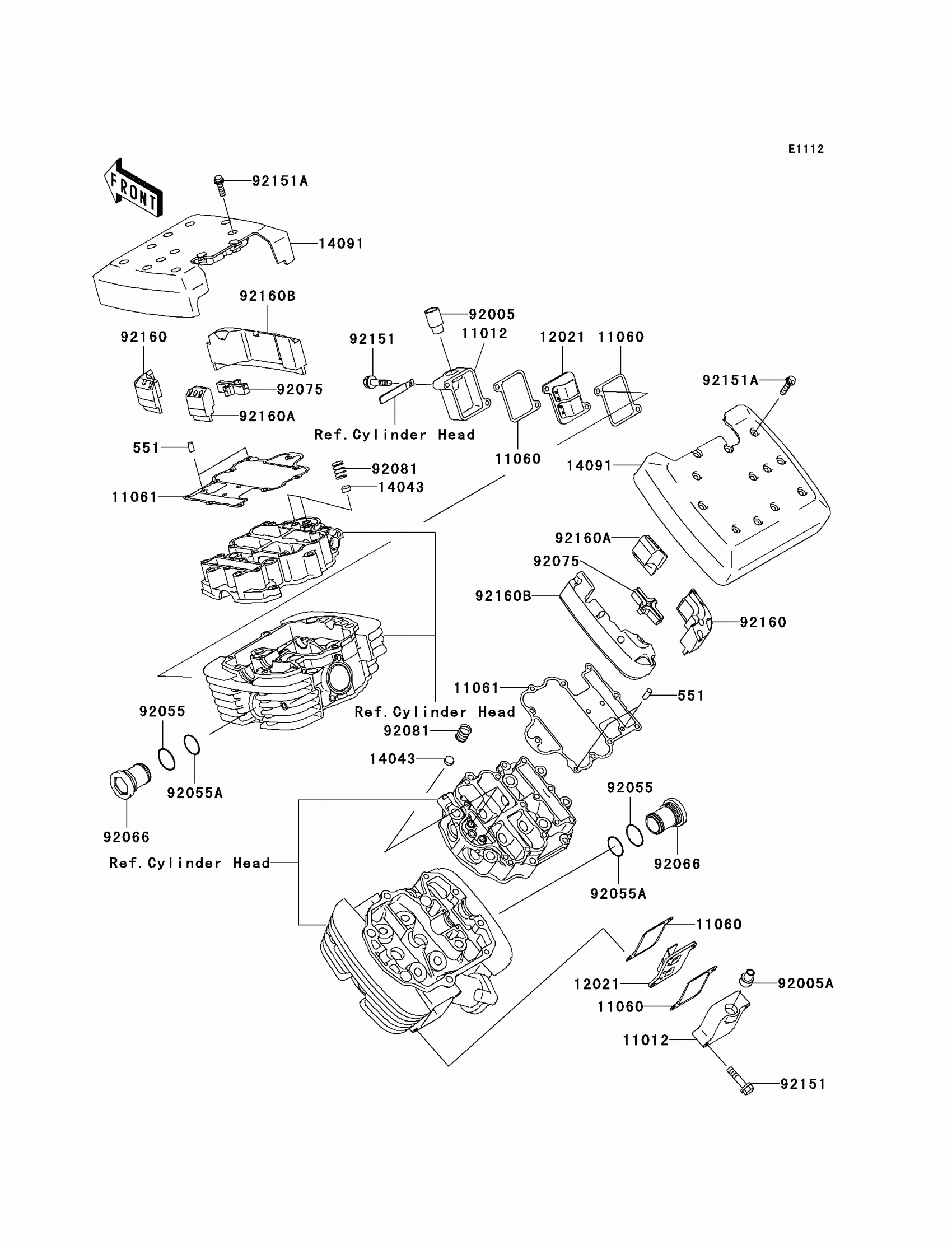

Kawasaki Vulcan 1500 Drifter Cylinder Head Cover Diagram

Description

Price

11012

CAP,REED VALVE

11012-1953

$64.18

11060

GASKET,REED VALVE CAP

11060-1733

Unavailable

11060A

GASKET,ROCKER CASE COVER

11060-1917

Unavailable

12021

VALVE-ASSY-REED

12021-1108

$126.71

14043

FILTER,OIL

14043-1056

$10.30

14091

COVER,ROCKER CASE

14091-1166

Unavailable

92005

FITTING,REED VALVE

92005-1006

$9.80

92005A

FITTING

92005-1363

$13.16

92037

CLAMP,L=45

92037-1539

$5.00

92043

PIN,4.2X6X12

92043-1262

$4.31

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,27.7X1.9

92055-1272

$5.52

92066

PLUG,SLEEVE

92066-1445

$37.14

92075

DAMPER

92075-1998

$9.58

92081

SPRING,OIL FILTER

92081-1776

$6.10

92151

BOLT,6X45

92151-1059

$2.75

92151A

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92160

DAMPER

92160-1698

$20.98

92160A

DAMPER

92160-1699

$14.64

92160B

DAMPER

92160-1711

$72.09
