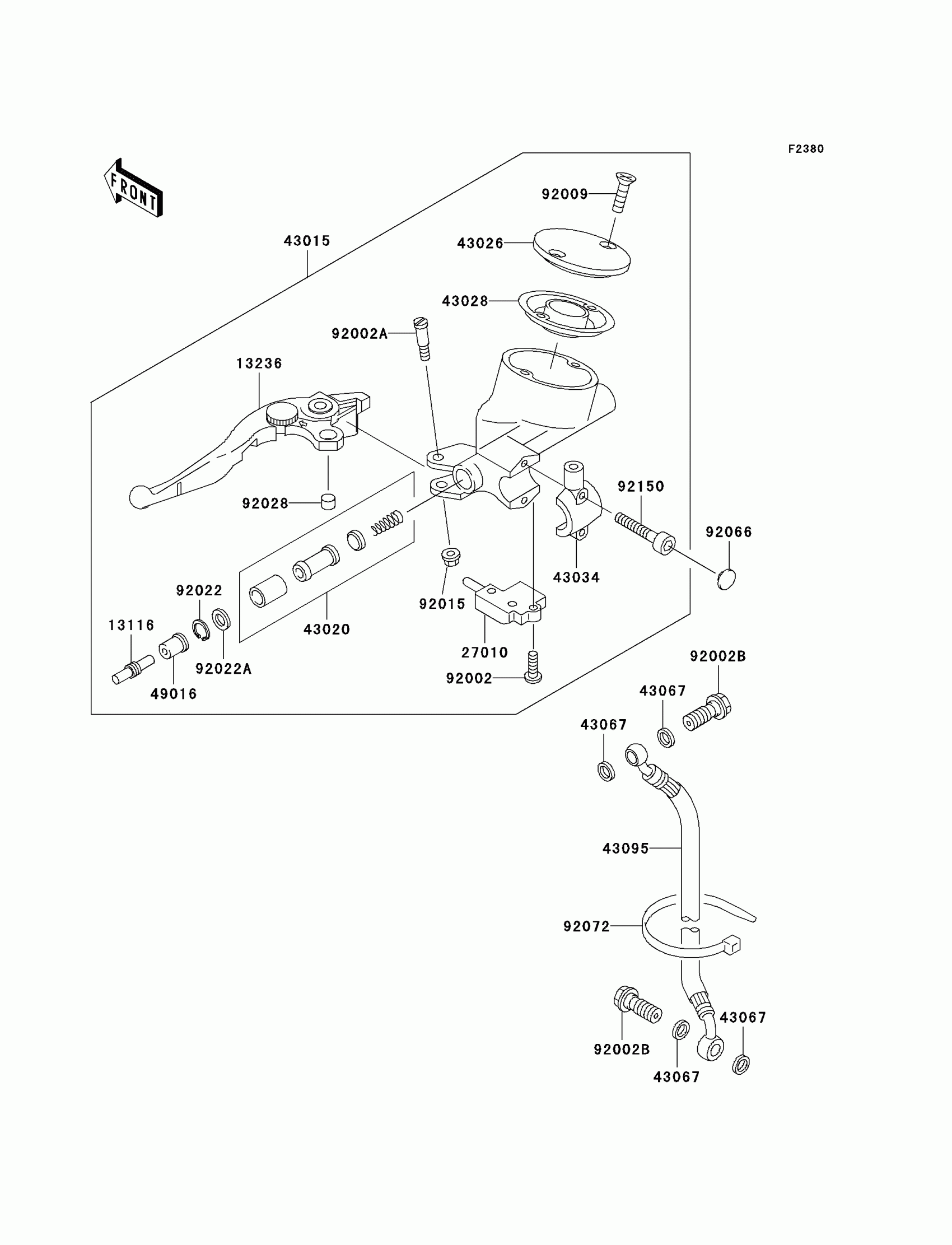

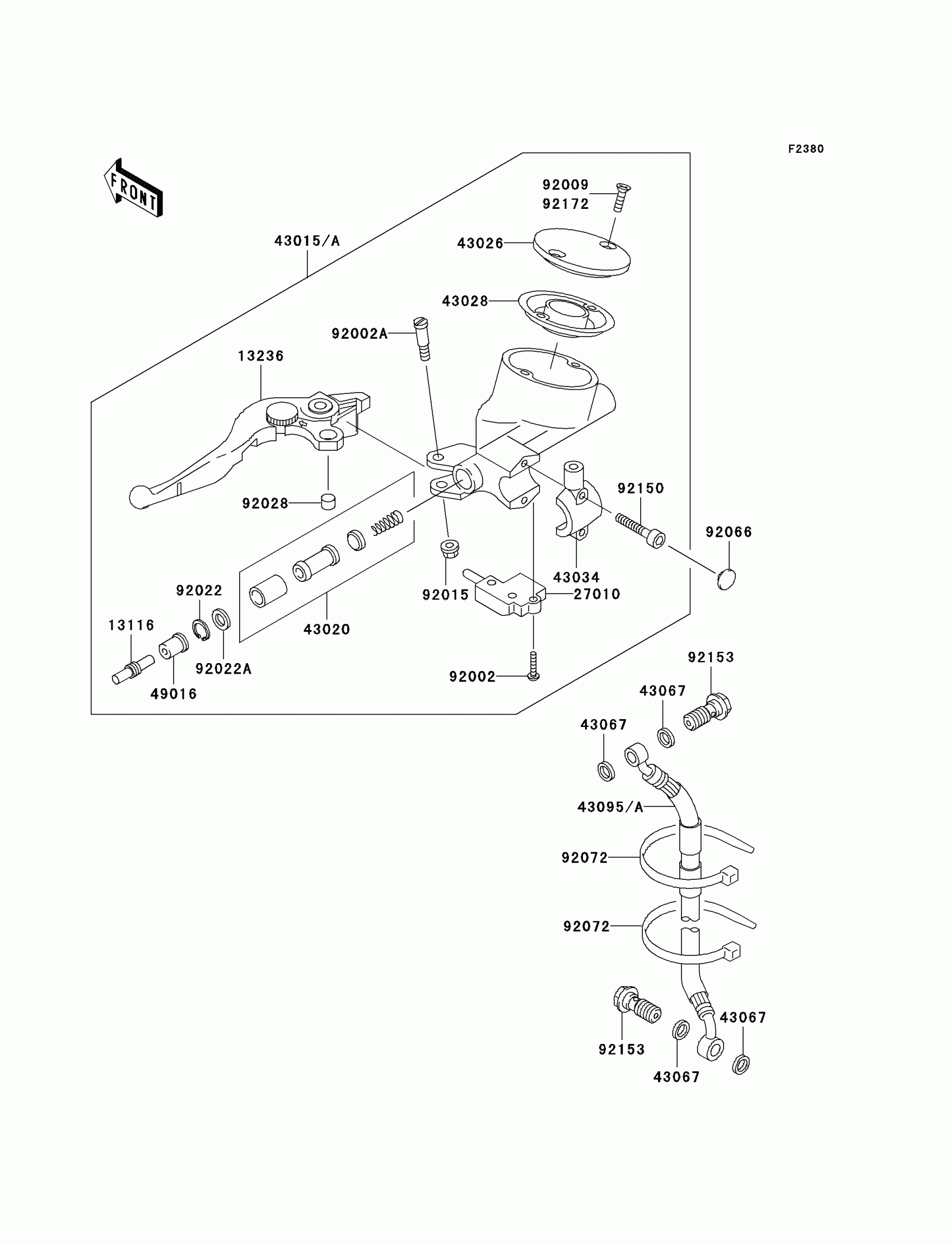

Kawasaki Vulcan 1500 Drifter Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$32.77

13236

LEVER-COMP,CLUTCH

13236-1316

$51.12

27010

SWITCH,CLUTCH

27010-1406

$36.01

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1641

Unavailable

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE,BLACK

43026-1079

$15.47

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$24.21

43034

HOLDER-BRAKE,BLACK

43034-1138

$119.16

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43095

HOSE-BRAKE,CLUTCH

43095-1102

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

SCREW,4X16

92002-1325

$7.99

92002A

BOLT,LEVER SET

92002-1561

$11.71

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,5MM

92009-1440

$4.11

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

CIRCLIP

92022-1605

$5.00

92022A

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92066

PLUG

92066-1301

$6.11

92072

BAND,L=365

92072-1197

$7.84

92150

BOLT,SOCKET,6MM

92150-1025

$7.69
