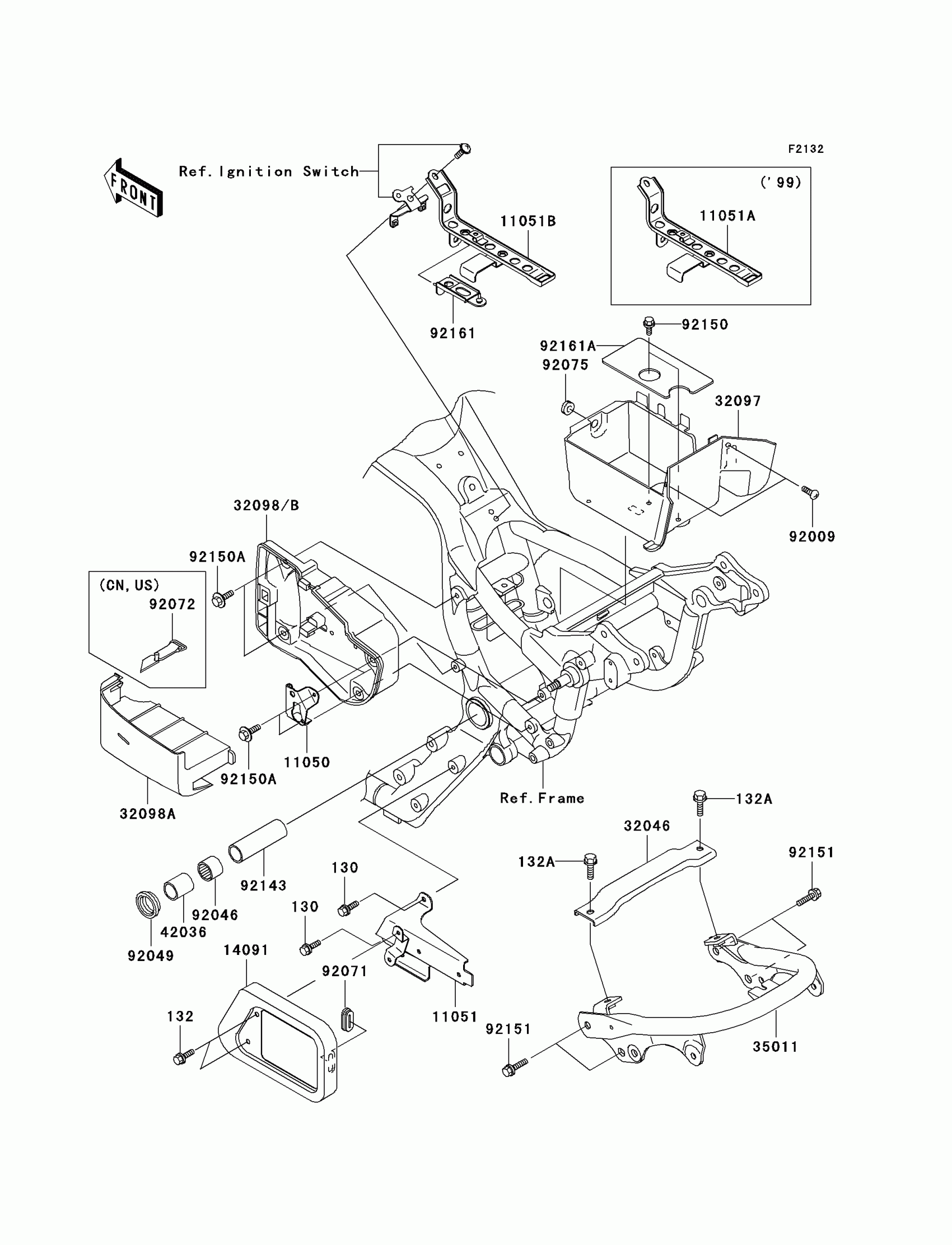

Kawasaki Vulcan 1500 Drifter Battery Case Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

132A

BOLT-FLANGED-SMALL,8X16

132J0816

$3.84

11050

BRACKET,SIDE COVER LOCK

11050-1958

$20.46

11051

BRACKET,REGULATOR

11051-1163

$69.53

11051B

BRACKET,BATTERY BAND

11051-1798

$32.34

14091

COVER,REGULATOR

14091-1079

$58.13

32046

BRACKET-SEAT

32046-1478

$20.70

32097

CASE-BATTERY

32097-1175

$39.94

32098A

CASE-TOOL,COVER

32098-1126

$137.22

35011

STAY,SEAT

35011-1968

$248.21

42036

SLEEVE,L=45

42036-1330

$29.70

92009

SCREW,6X10

92009-1402

$2.41

92046

BEARING-NEEDLE,BM2824

92046-1202

$25.10

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92071

GROMMET

92071-1187

$4.96

92075

DAMPER

92075-1067

$4.69

92143

COLLAR,20.2X27X90

92143-1878

$34.47

92150

BOLT,6X14

92150-1133

$4.31

92150A

BOLT,6X16

92150-1198

$4.13

92151

BOLT,FLANGED,10X18

92151-1440

$4.39

92161

DAMPER,BATTERY BAND

92161-1096

$12.62

92161A

DAMPER,BATTERY

92161-1097

$6.57

32098

CASE-TOOL

32098-1125

$141.76

32098B

CASE-TOOL

32098-1127

$141.76

92072

BAND,L=470

92072-1331

$24.84
