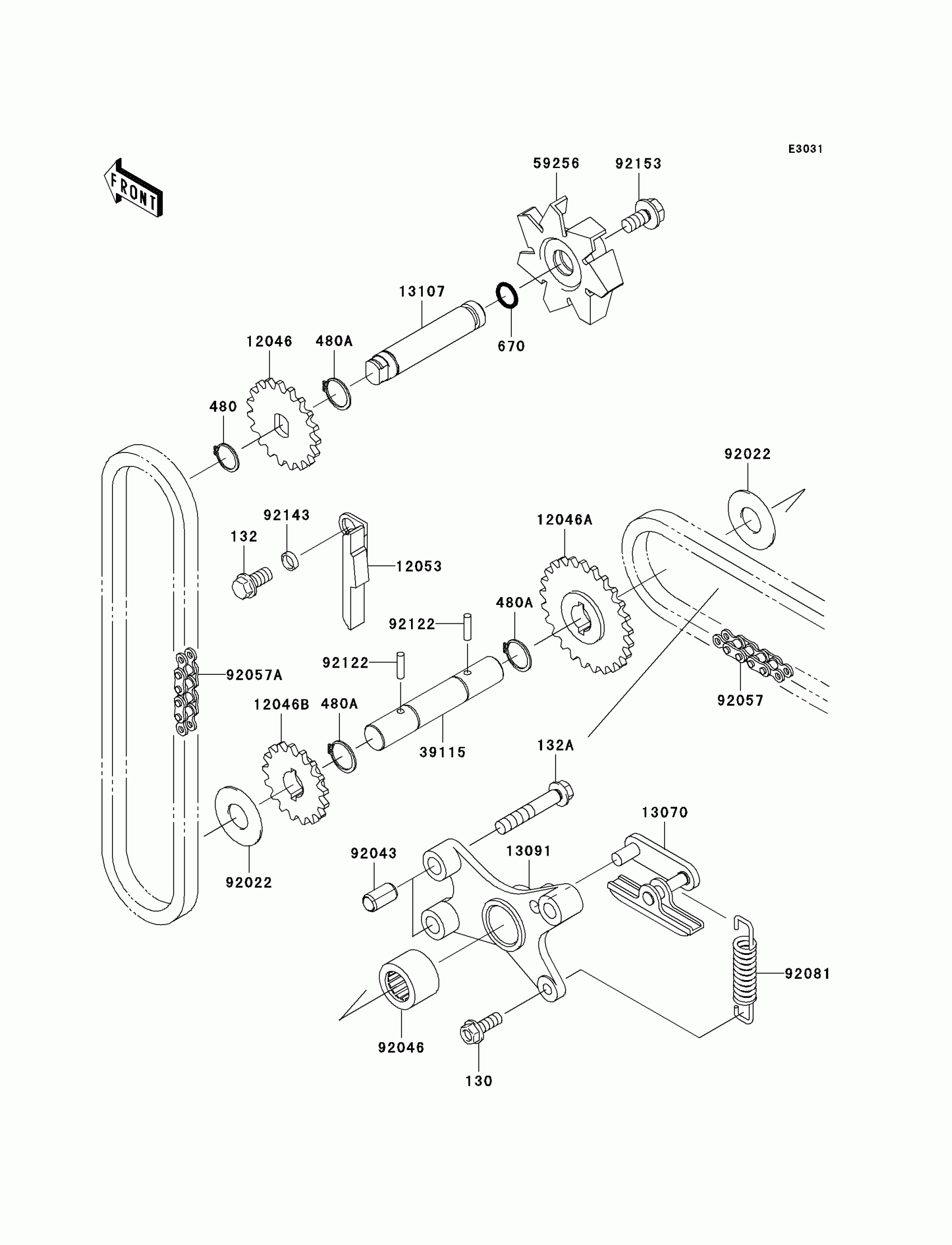

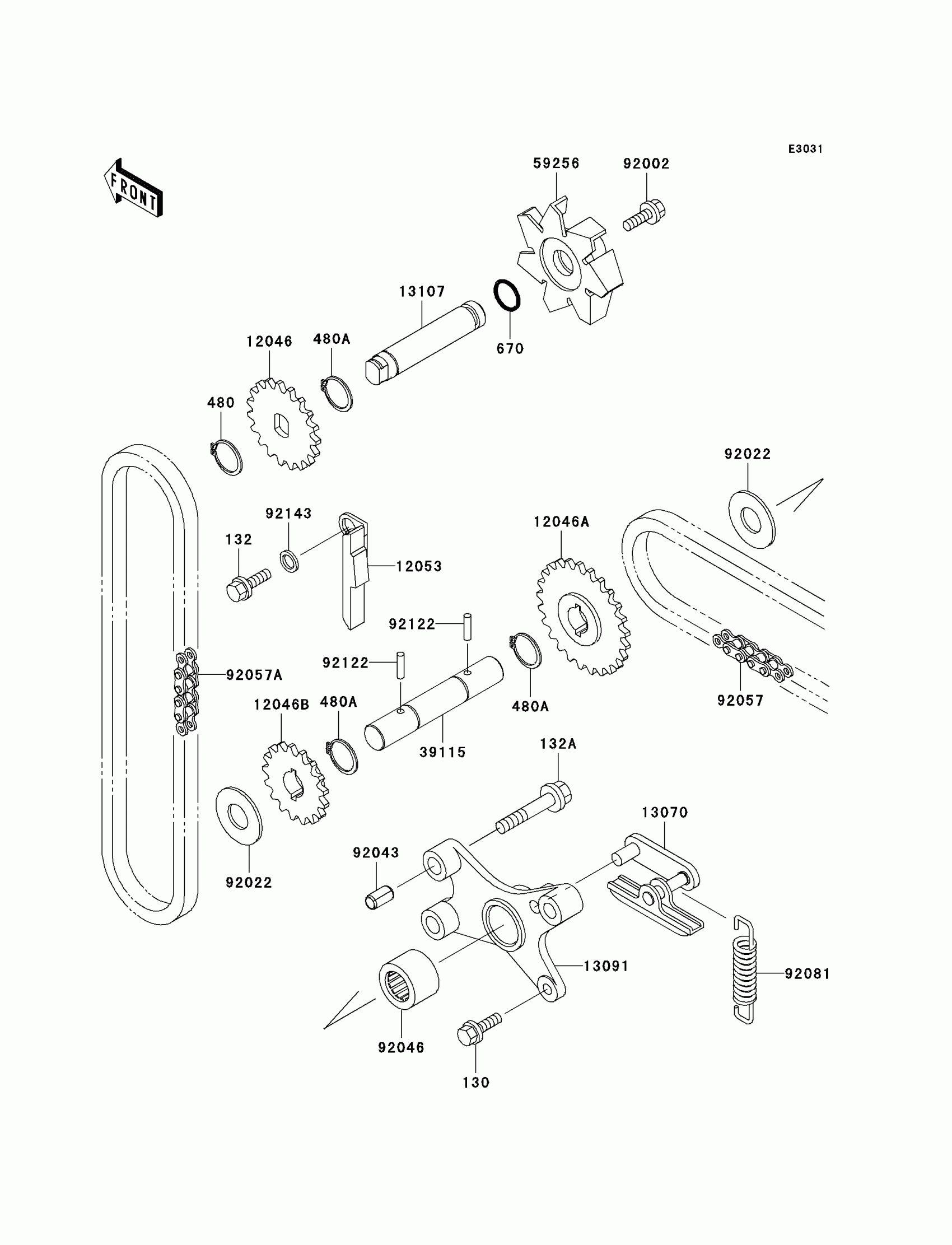

Kawasaki Vulcan 1500 Classic Water Pump Diagram

Description

Price

130

BOLT-FLANGED,5X14

130D0514

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL,6X35

132G0635

$1.92

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

480A

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

670

O RING,9MM

670D1509

$4.69

12046

SPROCKET,OIL PUMP,19T

12046-1079

$18.83

12046A

SPROCKET,CRANK IDLER,25T

12046-1096

$36.79

12046B

SPROCKET,IDLER,17T

12046-1097

$28.68

12053

GUIDE-CHAIN

12053-1227

$16.93

13070

GUIDE

13070-1178

$48.80

13091

HOLDER

13091-1471

$44.82

13107

SHAFT,IMPELLER

13107-1196

$29.70

39115

SHAFT-IDLER

39115-1058

$27.81

59256

IMPELLER

59256-1066

$42.88

92002

BOLT,6X12

92002-1902

Unavailable

92022

WASHER,12X27.5X1.0

92022-1852

$5.11

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1212

92046-1163

$15.17

92057

CHAIN,BS25HX46L

92057-1230

$15.43

92057A

CHAIN,BS25HX44L

92057-1231

$14.88

92081

SPRING,IDLER SHAFT

92081-1791

$5.54

92122

ROLLER,3X15.8

92122-1126

$3.92

92143

COLLAR

92143-1123

$5.23
