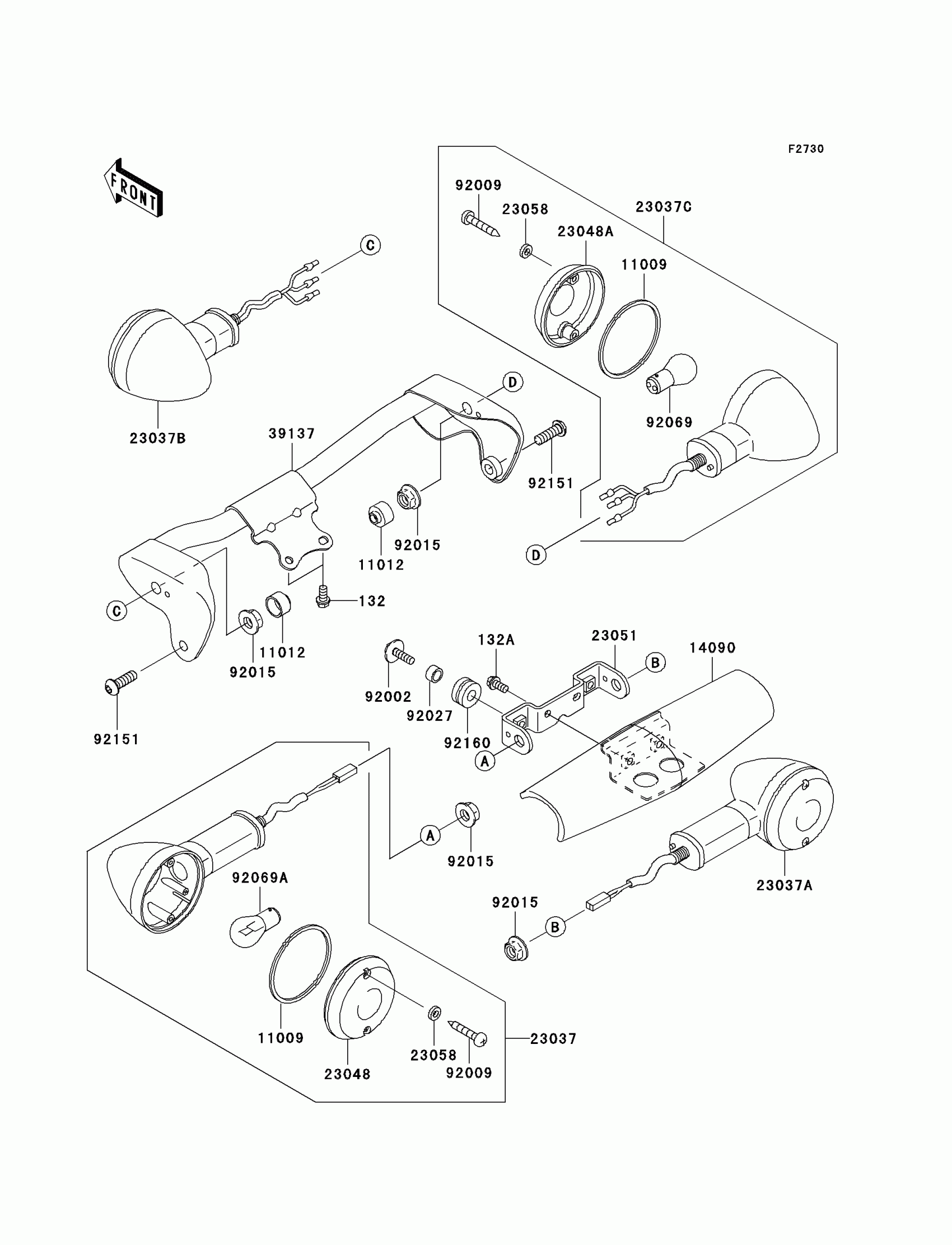

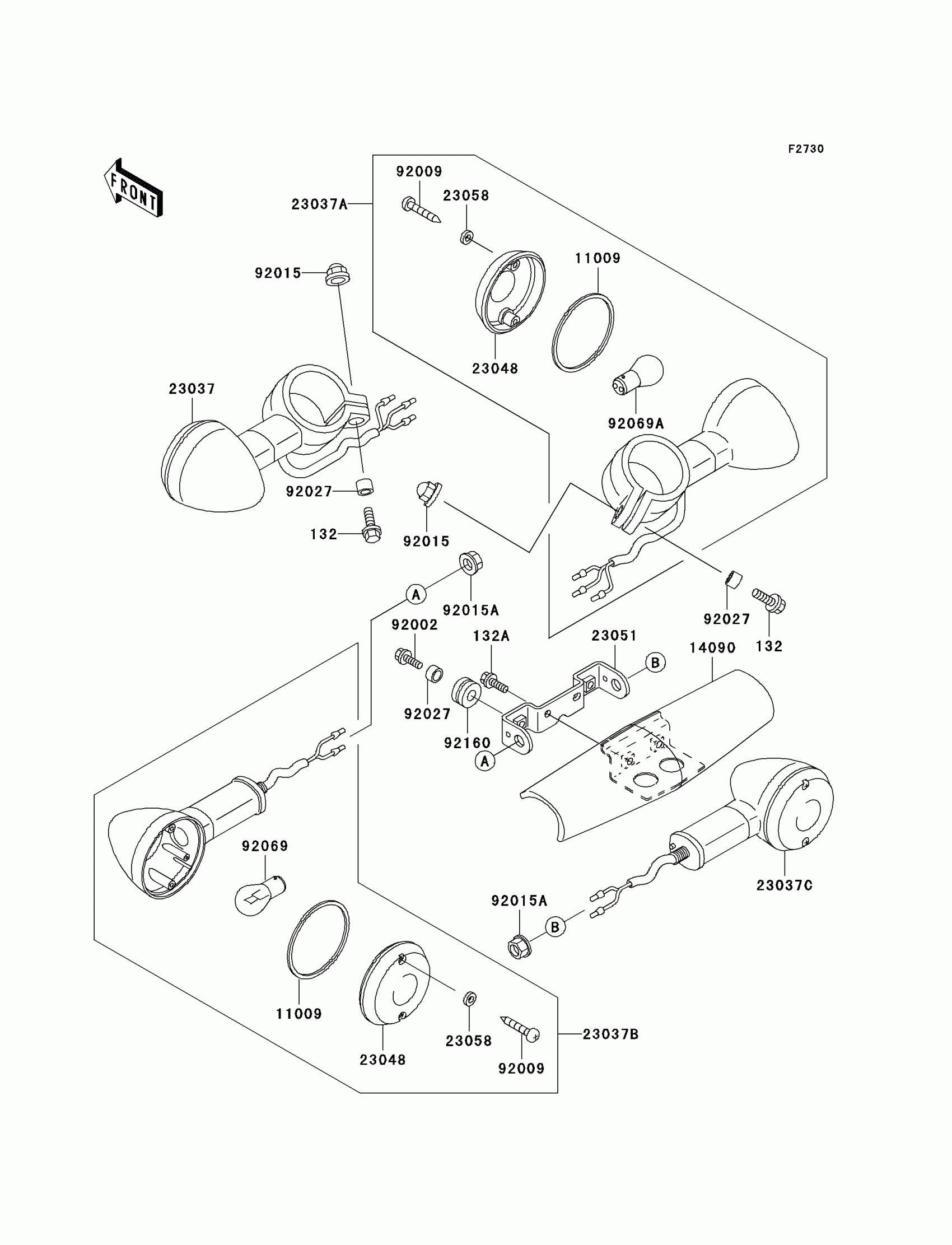

Kawasaki Vulcan® 1500 Classic Turn Signals Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

132A

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

11009

GASKET,SIGNAL LAMP

11009-1413

$4.96

11012

CAP

11012-1367

$6.51

14090

COVER

14090-1691

$69.26

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-1388

$67.93

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-1389

$67.93

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-1426

$76.92

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-1427

$76.92

23048

LENS-SIGNAL LAMP,RR

23048-1065

$9.53

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$9.53

23051

BRACKET-SIGNAL LAMP,RR

23051-1230

$20.04

23058

WASHER,PLAIN,4MM

23058-002

$2.49

39137

STAY-COMP,SIGNAL LAMP,FR

39137-1077

$166.62

92002

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,TAPPING,4X25

92009-1637

$3.92

92015

NUT,10MM

92015-1356

$3.74

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 21/5W

92069-063

$9.31

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92151

BOLT,SOCKET,8X25

92151-1327

$3.92

92160

DAMPER

92160-1162

$5.00
