2005 Kawasaki Vulcan 1500 Classic Throttle Diagram

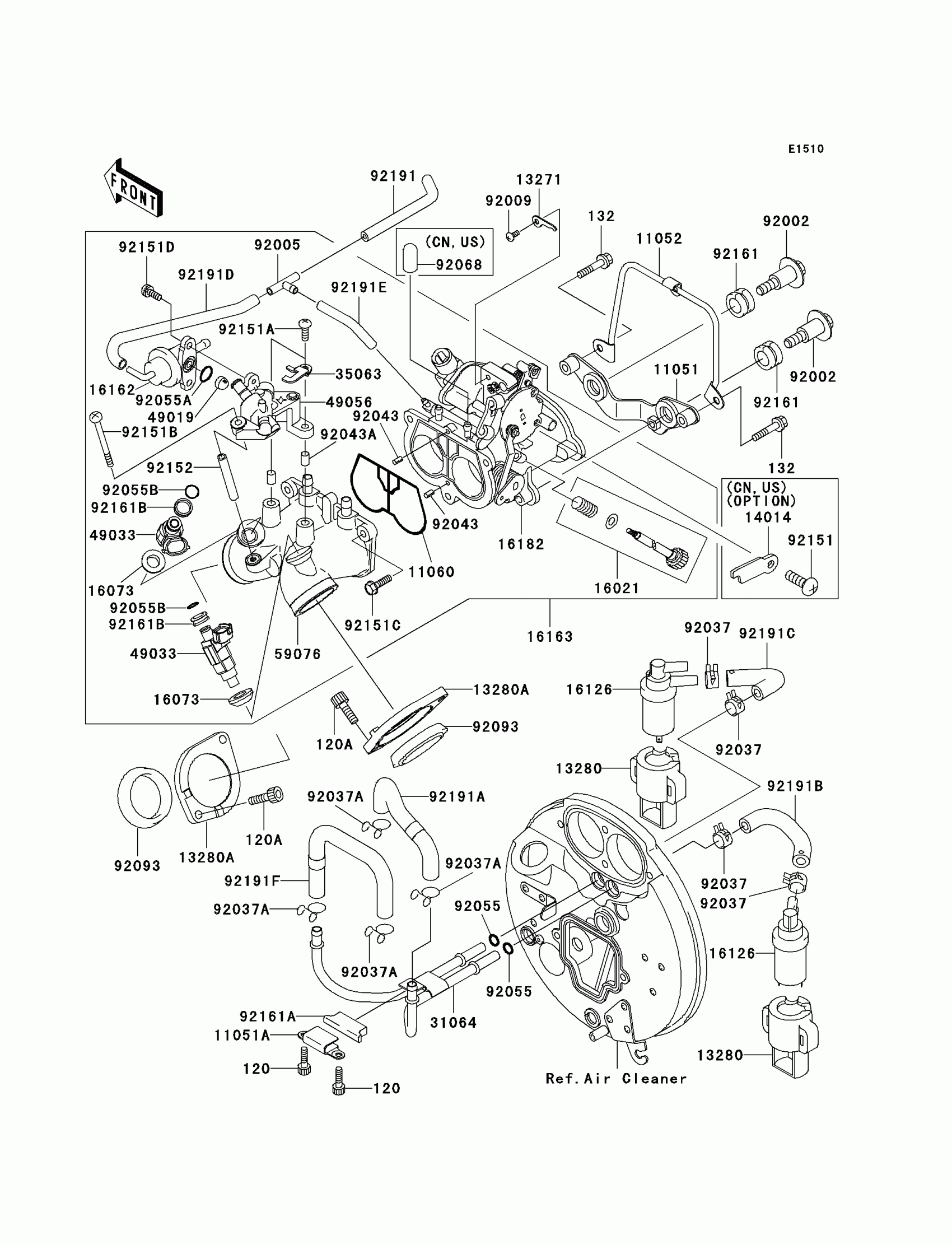

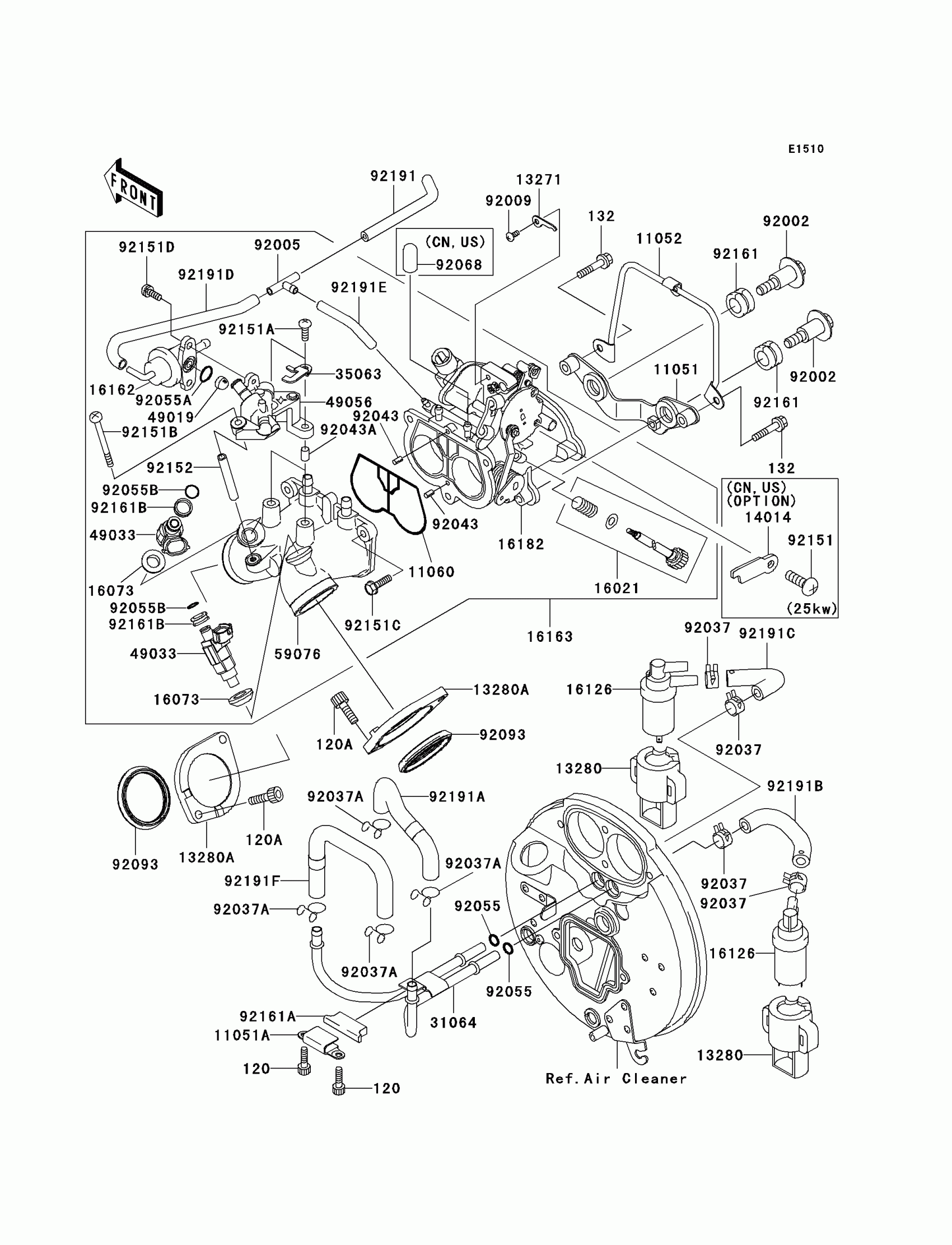

Find the part on the Throttle diagram for your 2005 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13271
PLATE,STARTER CABLE
13271-1314
16126
VALVE
16126-1372
16162
REGULATOR-FUEL
16162-1054
92002
BOLT,FLANGED,6X14X13.5
92002-1595
92005
FITTING
92005-1366
92009
SCREW,4X6
92009-1903
92055A
RING-O,FUEL REGULATOR
92055-1620
92093
SEAL
92093-1484
92151B
BOLT,5X75
92151-1586
120
BOLT-SOCKET,5X10
120S0510
120A
BOLT-SOCKET,6X20
120Z0620
132
BOLT-FLANGED-SMALL,6X25
132J0625
92152
COLLAR,DELIVERY PIPE
92152-1206
92161
DAMPER
92161-1058
92161B
DAMPER,INJECTION NOZZLE
92161-1083
92191
TUBE,THROTTLE-BOOST
92191-1298
92191A
TUBE,FRONT PORT,RED
92191-1366
92191B
TUBE,REAR VALVE,RED
92191-1367
92191C
TUBE,FRONT VALVE,BLUE
92191-1368
92191E
TUBE,L=55
92191-1403
92191F
TUBE,REAR PORT,YELLOW
92191-1564
14014
PLATE-POSITION,25KW
14014-1142
