1997 Kawasaki Vulcan 1500 Classic Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

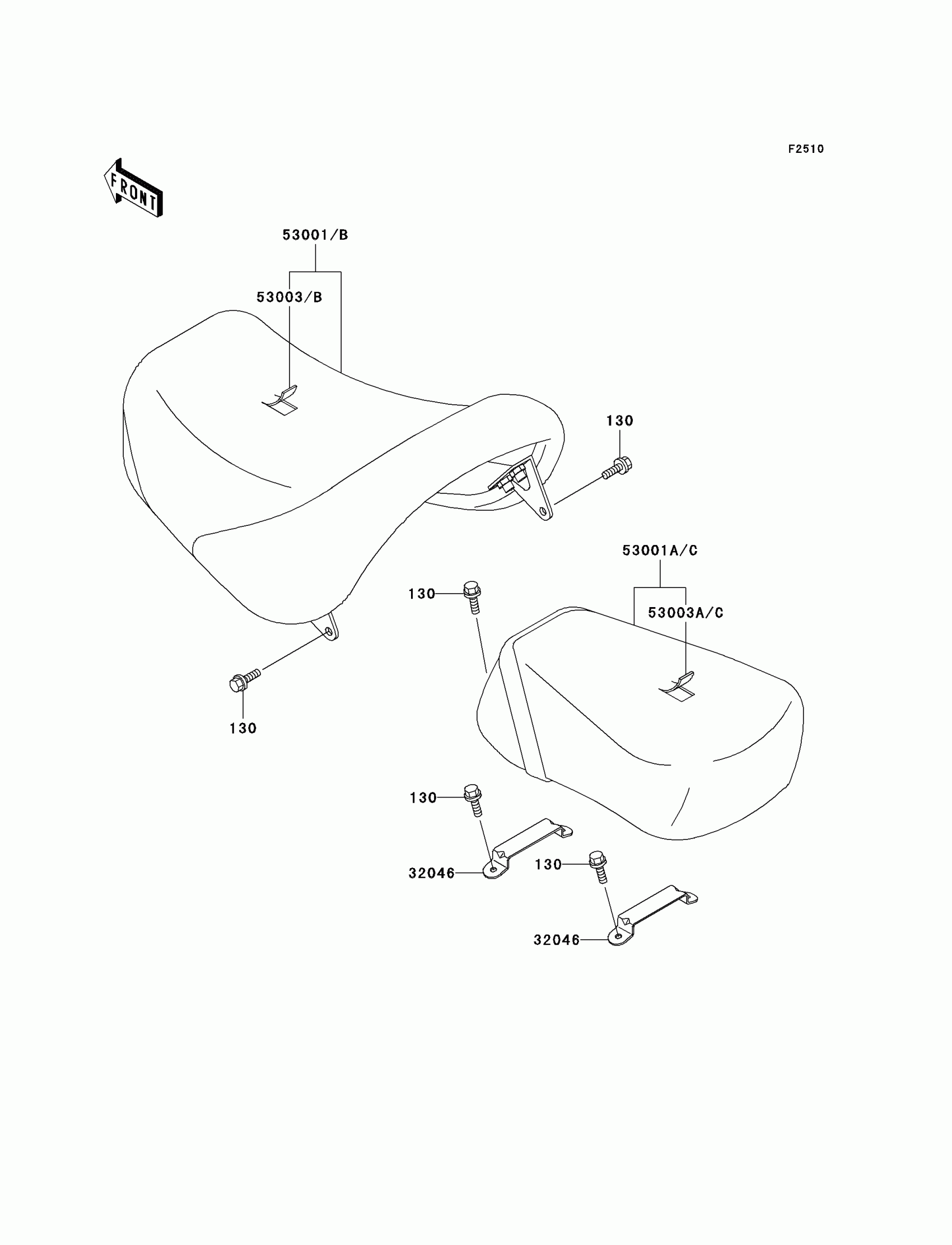

1997 Kawasaki Vulcan 1500 Classic Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

32046

BRACKET-SEAT,RR

32046-1412

1

$9.88

In stock

53001B

SEAT-ASSY,FR,BLACK

53001-1840-MA

1

$792.69

In stock

53001C

1

$485.94

In stock

53003B

LEATHER,FRONT SAET,BLACK

53003-1388-MA

1

$276.94

In stock

53003C

LEATHER,REAR SEAT,BLACK

53003-1389-MA

1

$225.30

In stock
