1997 Kawasaki Vulcan 1500 Classic Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

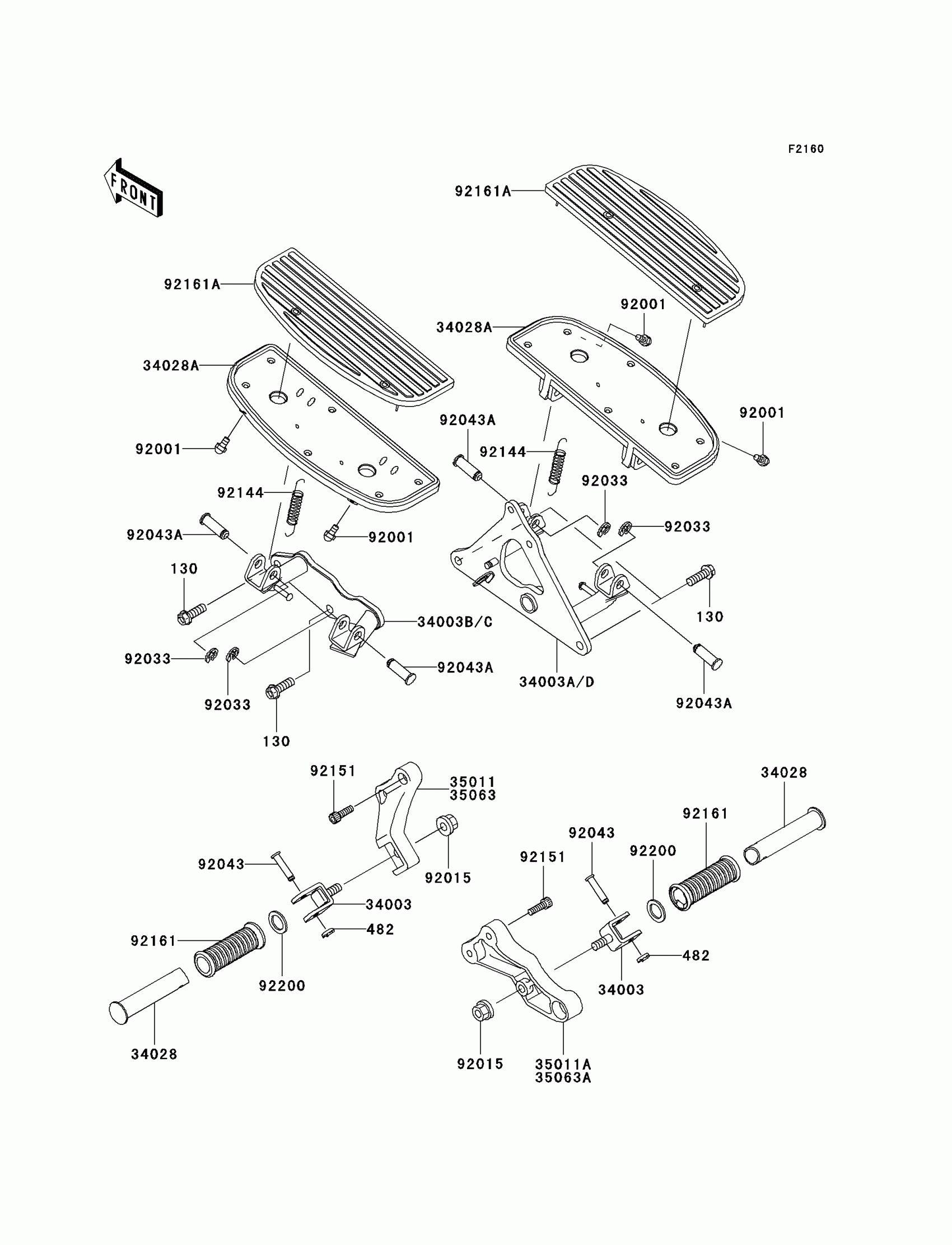

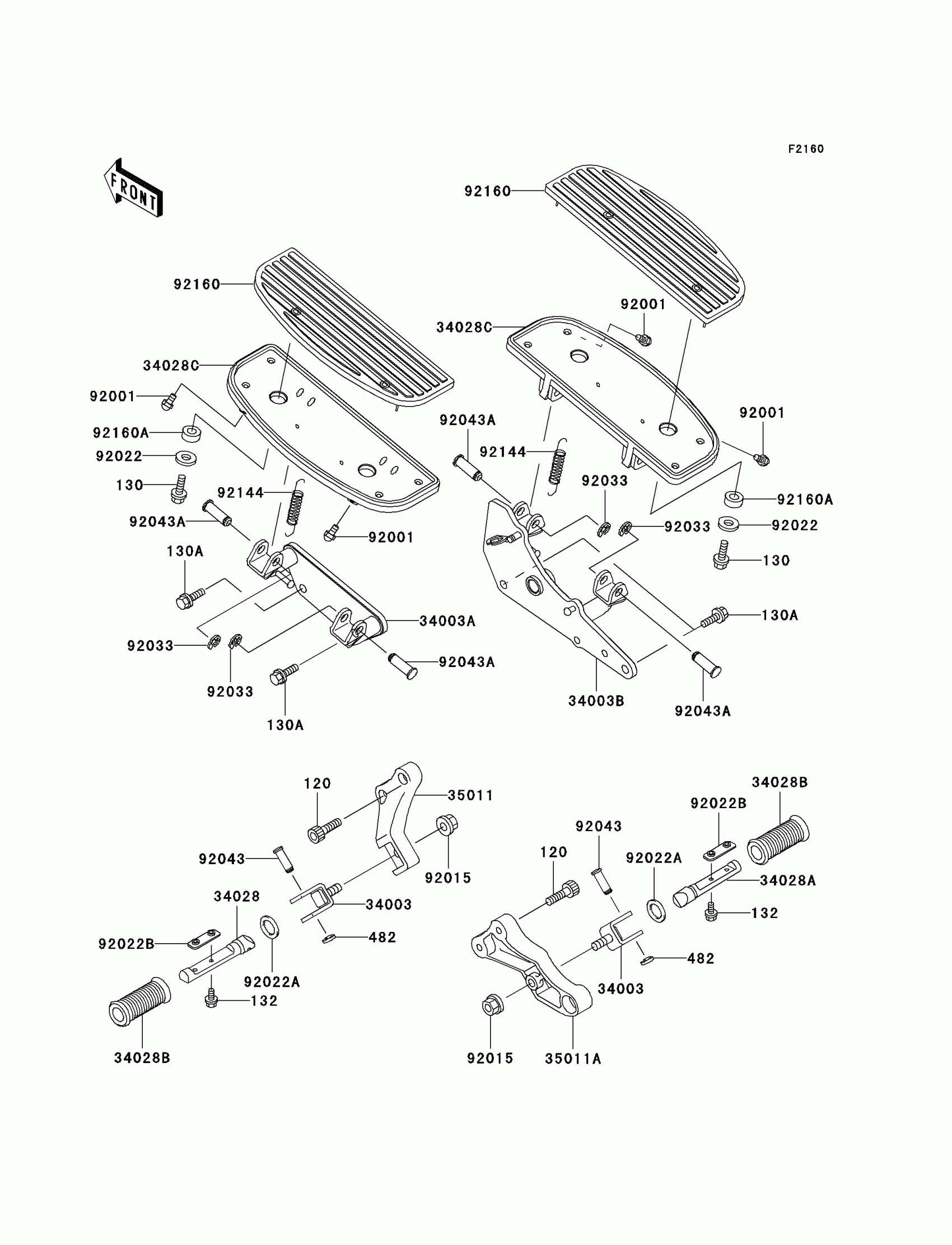

1997 Kawasaki Vulcan 1500 Classic Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X25

120S0825

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,10X30

130J1030

1
Out of stock

132

BOLT-FLANGED-SMALL,5X10

132J0510

1
Out of stock

482

CIRCLIP-TYPE-E

482L7000

1
Out of stock

34003

HOLDER-STEP,RR

34003-1292

1
Out of stock

34003A

HOLDER-STEP,FR,LH

34003-1448

1
Out of stock

34003B

HOLDER-STEP,FR,RH

34003-1449

1
Out of stock

34028

STEP,RR,LH

34028-1219

1
Out of stock

34028A

STEP,RR,RH

34028-1220

1
Out of stock

34028B

STEP,RR,RUBBER

34028-1221

1
Out of stock

34028C

STEP,FR

34028-1417

1
Out of stock

35011

STAY,REAR STEP,LH

35011-1770

1
Out of stock

35011A

STAY,REAR STEP,RH

35011-1771

1
Out of stock

92001

BOLT,BANK SENSOR

92001-1905

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92022

WASHER,7X28X1.6,BLACK

92022-1392

1
Out of stock

92022A

WASHER,20X30X2.3

92022-1568

1
Out of stock

92022B

WASHER,STEP

92022-1874

1
Out of stock

92033

RING-SNAP,10MM

92033-1166

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,12X37

92043-1358

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92160

DAMPER,FRONT STEP

92160-1727

1
Out of stock

92160A

DAMPER

92160-1728

1
Out of stock
