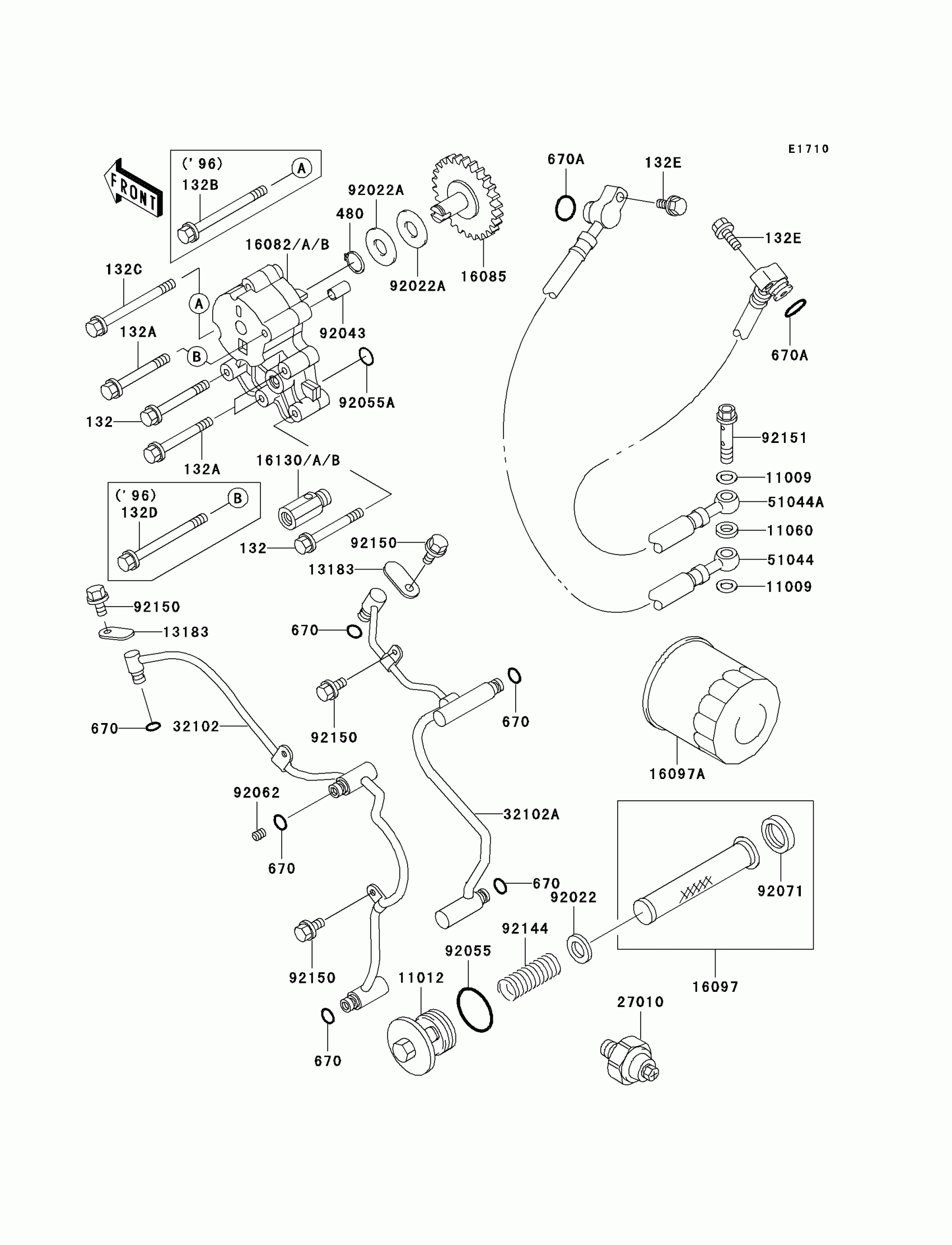

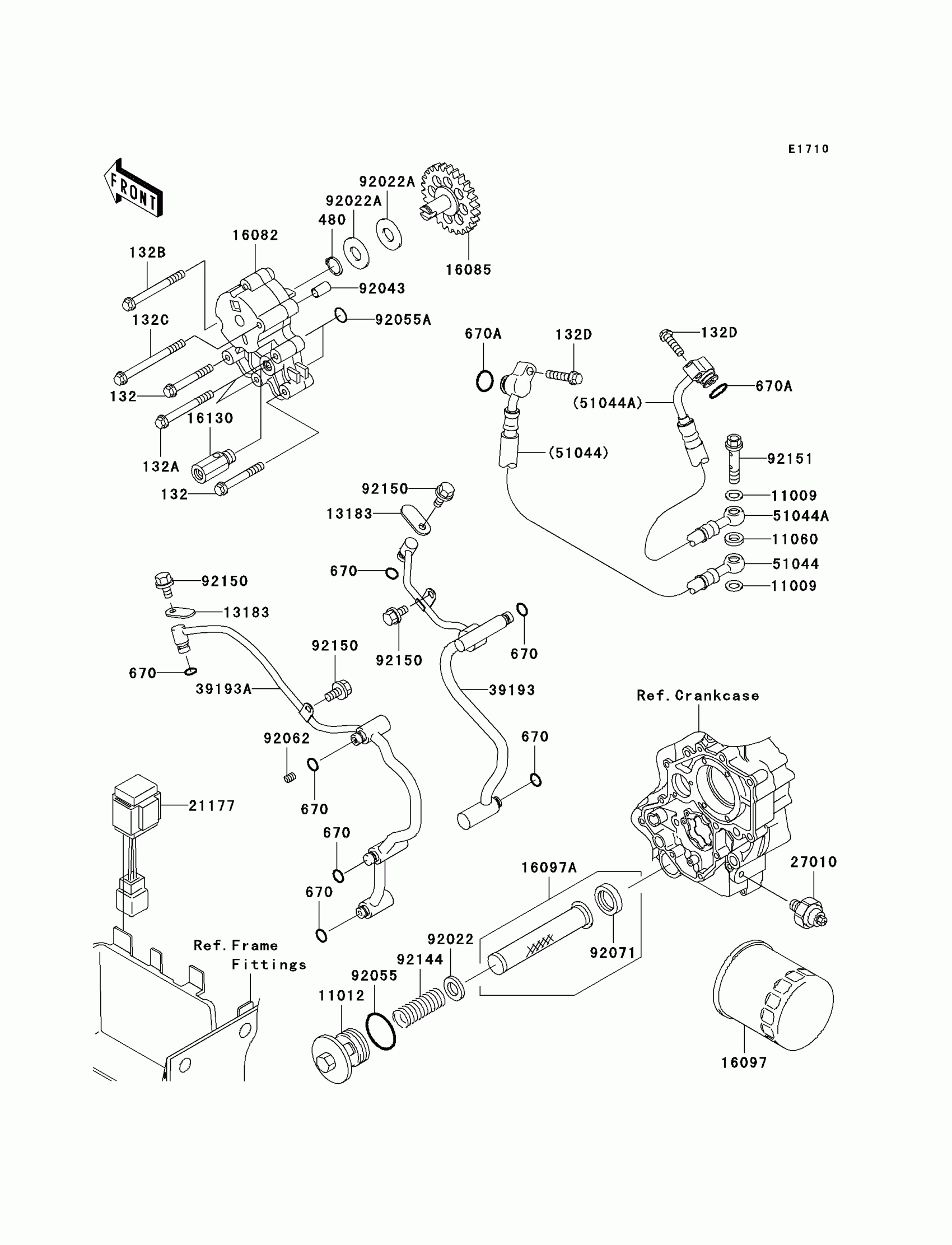

Kawasaki Vulcan 1500 Classic Oil Pump/Oil Filter Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X45

132G0645

$4.15

132A

BOLT-FLANGED-SMALL,6X55

132G0655

$2.62

132C

BOLT-FLANGED-SMALL,6X65

132G0665

$4.15

132E

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11012

CAP,OIL FILTER

11012-1461

$45.18

11060

GASKET,PIPE JOINT

11060-1739

$3.10

13183

PLATE

13183-1071

$5.59

16082B

PUMP-ASSY-OIL

16082-1152

$350.90

16085

GEAR,OIL PUMP,39T

16085-1177

$93.28

16097

FILTER-ASSY-OIL

16097-1058

$14.37

16097A

FILTER-ASSY-OIL

16097-1063

$14.50

16130A

VALVE-ASSY-RELIEF

16130-1059

$41.98

27010

SWITCH,OIL PRESSURE

27010-1360

$42.79

32102

PIPE

32102-1408

Unavailable

32102A

PIPE

32102-1409

$117.10

51044

TUBE-ASSY,FR

51044-1182

$191.61

51044A

TUBE-ASSY,RR

51044-1183

$191.61

92022

WASHER,20.1X28X1

92022-1547

$4.31

92022A

WASHER,12X27.5X1.0

92022-1852

$5.11

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,35.2X2.4

92055-1358

$7.34

92055A

RING-O,13.2X2.4

92055-1373

$5.24

92062

NOZZLE,6X8,GREEN

92062-1078

$4.69

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92144

SPRING

92144-1106

$6.51

92150

BOLT,6X12

92150-1868

$3.32

92151

BOLT,8X35

92151-1355

$13.77

670

O RING,8MM

670D1508

$4.31

670A

O RING,10MM

670D2010

$1.94
