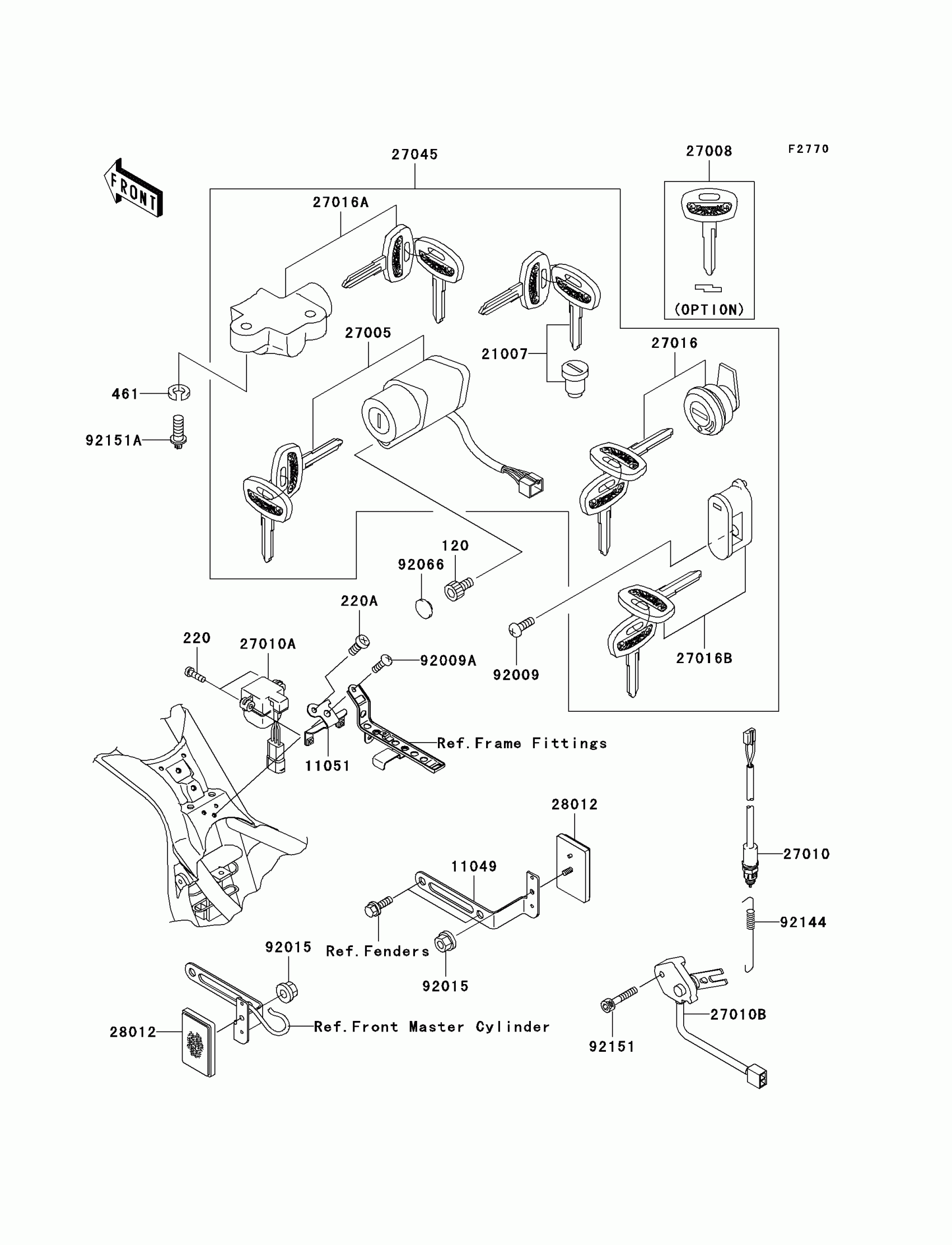

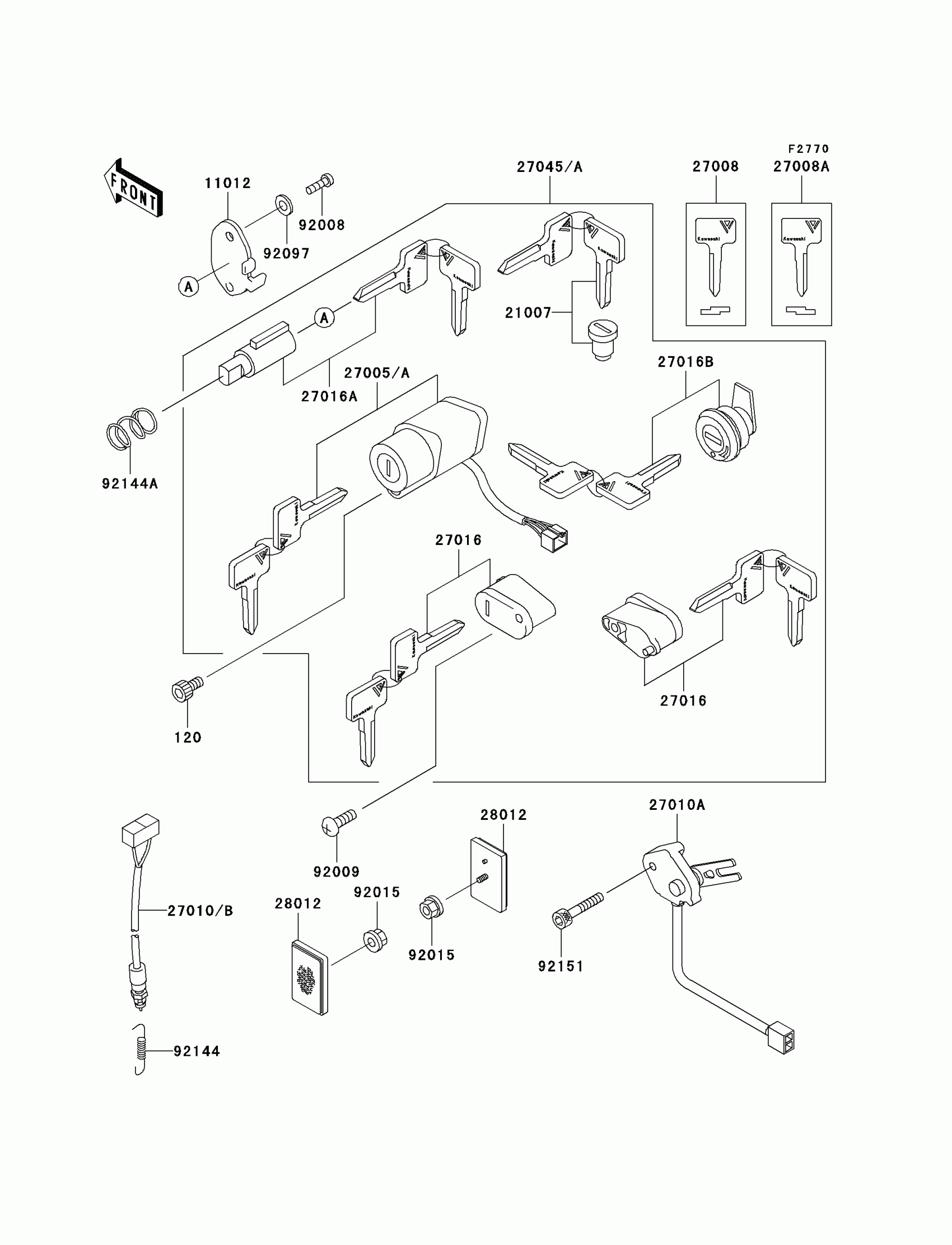

Kawasaki Vulcan® 1500 Classic Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET

120P0512

$1.47

220

SCREW-PAN-CROS,4X20

220C0420

$0.94

220A

SCREW-PAN-CROS,6X12

220C0612

$4.35

461

WASHER-SPRING

461L0600

$0.71

11049

BRACKET

11049-1820

$11.91

11051

BRACKET,DOWN SENSOR

11051-1763

$14.60

21007

ROTOR,LOCK,TANK CAP

21007-5047

$72.74

27005

SWITCH-ASSY-IGNITION

27005-1256

$181.37

27008

KEY-LOCK,BLANK

27008-1208

$26.22

27010

SWITCH,REAR BRAKE

27010-1412

$36.58

27010A

SWITCH,DOWN SENSOR

27010-1416

Unavailable

27010B

SWITCH,SIDE STAND

27010-1464

$73.58

27016

LOCK-ASSY,LID

27016-5267

$73.22

27016A

LOCK-ASSY,STEERING

27016-5269

$69.63

27016B

LOCK-ASSY,HELMET

27016-5316

$67.81

27045

SWITCH-ASSY

27045-5245

$607.20

28012

REFLECTOR-REFLEX,FR

28012-1009

$26.23

92009

SCREW,5X12

92009-1296

$3.92

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,5MM

92015-1656

$3.21

92066

PLUG

92066-1435

$2.76

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92151

BOLT,SOCKET,6X35

92151-1390

$2.46

92151A

BOLT,TORX,6X22

92151-1946

$3.94
