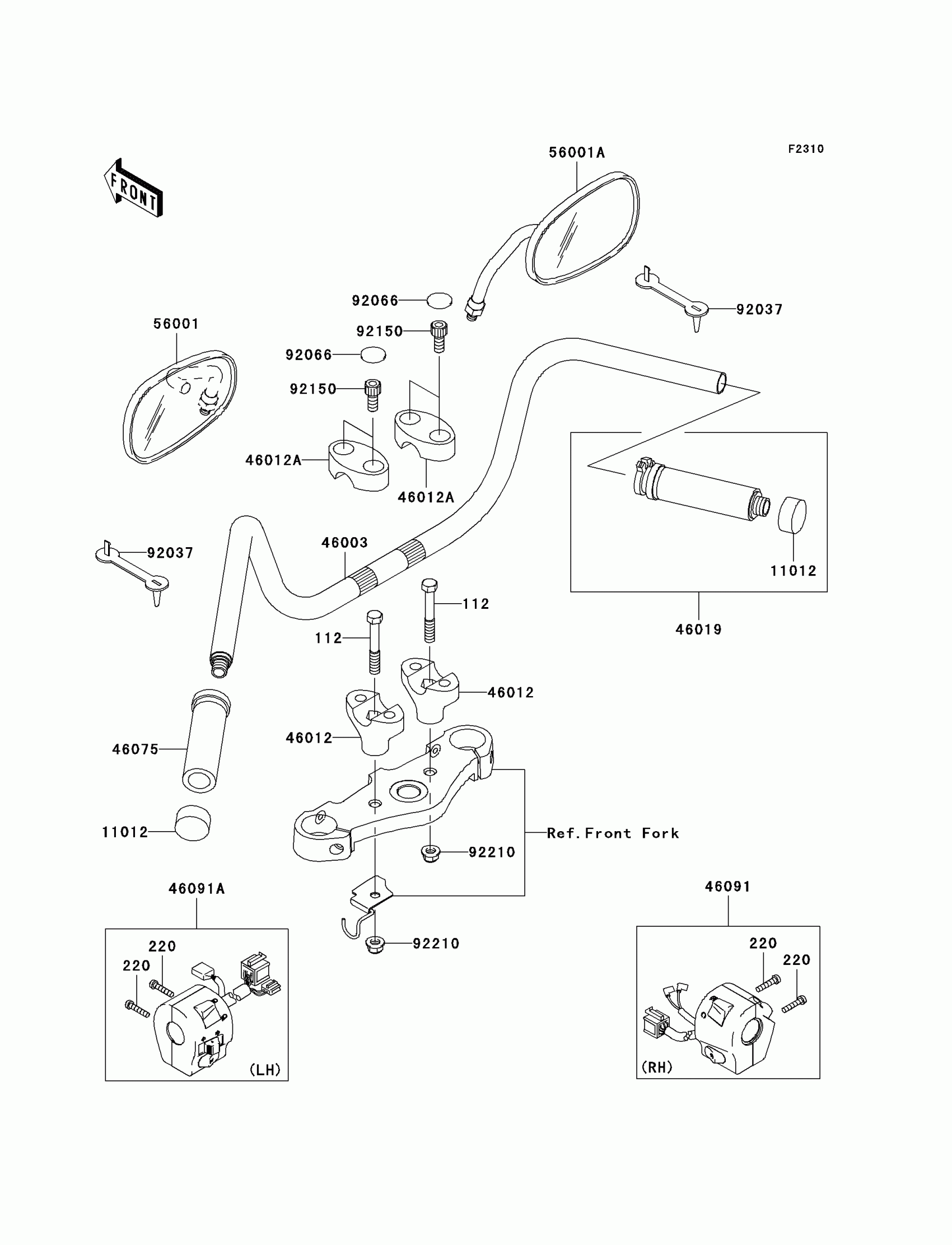

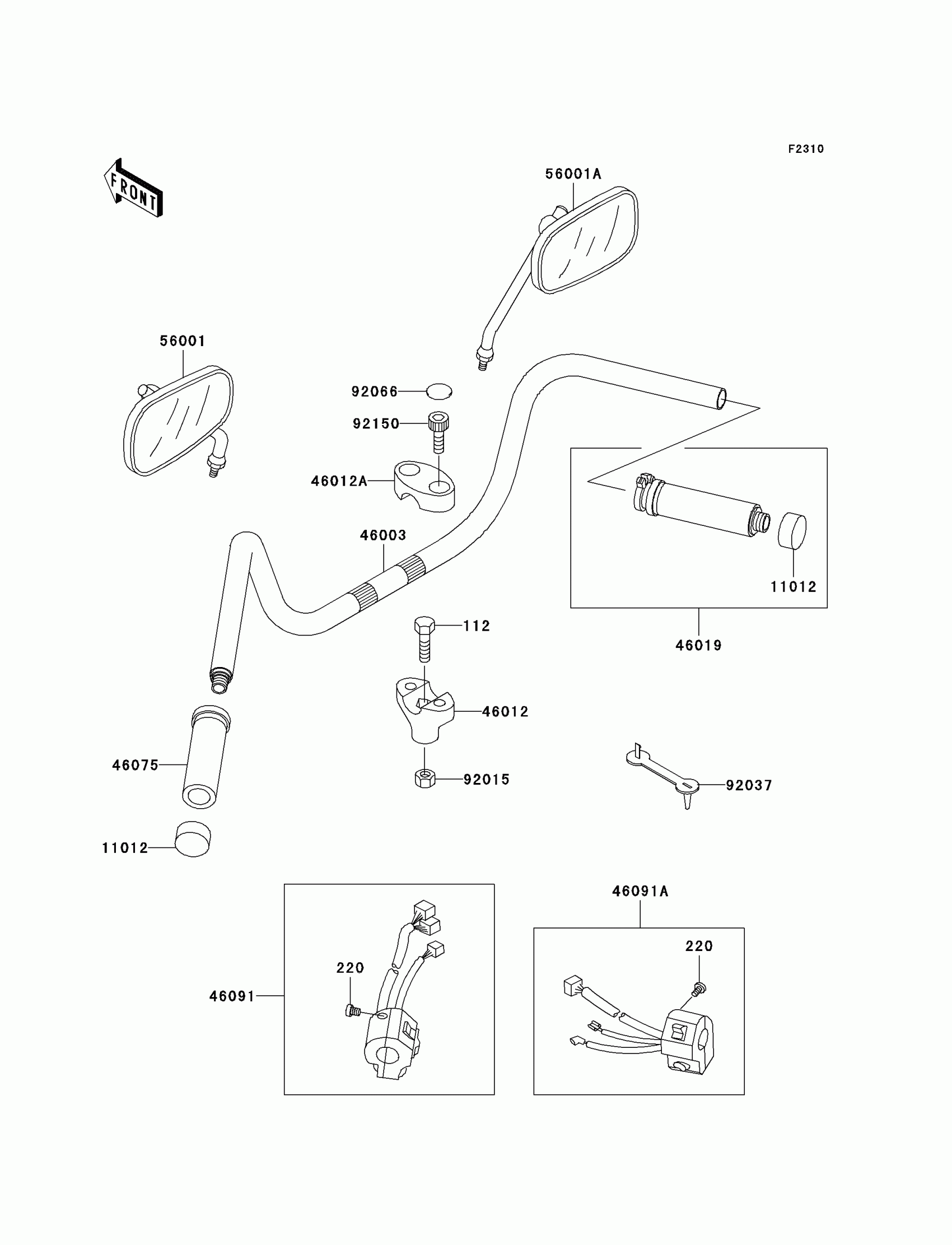

Kawasaki Vulcan 1500 Classic Handlebar Diagram

Description

Price

112

BOLT-UPSET,10X65

112H1065

$7.20

220

SCREW-PAN-CROS,5X16

220E0516

$4.11

11012

CAP,GRIP END

11012-1975

$20.44

46003

HANDLE

46003-1455

$150.69

46012

HOLDER-HANDLE,LWR

46012-1272

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1273

$51.72

46019

GRIP-ASSY,THROTTLE

46019-1086

$69.36

46075

GRIP,LH

46075-1074

$24.48

46091

HOUSING-ASSY-CONTROL,LH

46091-1641

$251.40

46091A

HOUSING-ASSY-CONTROL,RH

46091-1646

Unavailable

56001

MIRROR-ASSY,LH

56001-1451

$83.79

56001A

MIRROR-ASSY,RH

56001-1452

$83.79

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92066

PLUG

92066-1285

$7.77

92150

BOLT,SOCKET,10X23

92150-1942

$7.34
