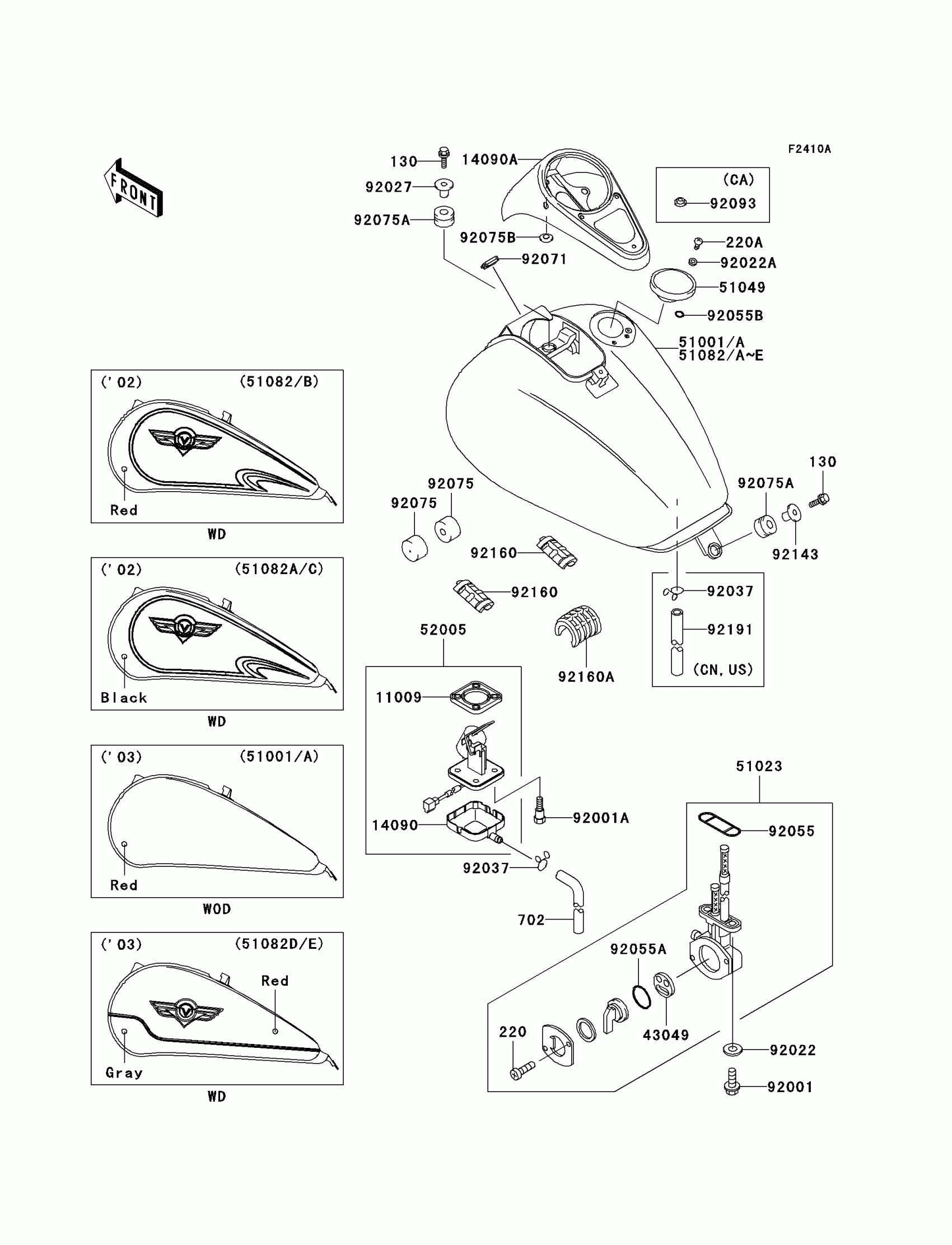

Kawasaki Vulcan 1500 Classic Fuel Tank(VN1500-E5/E6) Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$16.00

14090A

COVER,METER

14090-1674

$160.88

43049

PACKING,TAP VALVE

43049-1066

$5.54

51023

TAP-ASSY,FUEL

51023-1226

$132.70

51049

CAP-TANK,FUEL

51049-1132

$112.77

130

BOLT-FLANGED,8X30

130H0830

Unavailable

220

SCREW-PAN-CROSS

220D0308

Unavailable

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$10.11

52005

GAUGE,FUEL

52005-1129

$127.17

92001

BOLT,6X25

92001-1524

$1.54

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=19.3

92027-1780

$4.93

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92055B

RING-O,ID=9

92055-1552

$2.41

92071

GROMMET

92071-1187

$3.78

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER

92075-1736

$4.93

92075B

DAMPER,RUBBER

92075-261

$3.85

92143

COLLAR

92143-1835

Unavailable

92160

DAMPER,FUEL TANK

92160-1751

$13.27

92160A

DAMPER,FUEL TANK

92160-1799

Unavailable

51001

TANK-COMP-FUEL,C.S.RED

51001-1549-ED

$1,369.20

51001A

TANK-COMP-FUEL,C.S.RED

51001-1558-ED

$1,300.81

51082D

TANK-COMP-FUEL,RED/GRAY

51082-5318-C3

$1,556.08

51082E

TANK-COMP-FUEL,RED/GRAY

51082-5320-C3

$1,471.14

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92191

TUBE,DRAIN

92191-1272

$23.59
