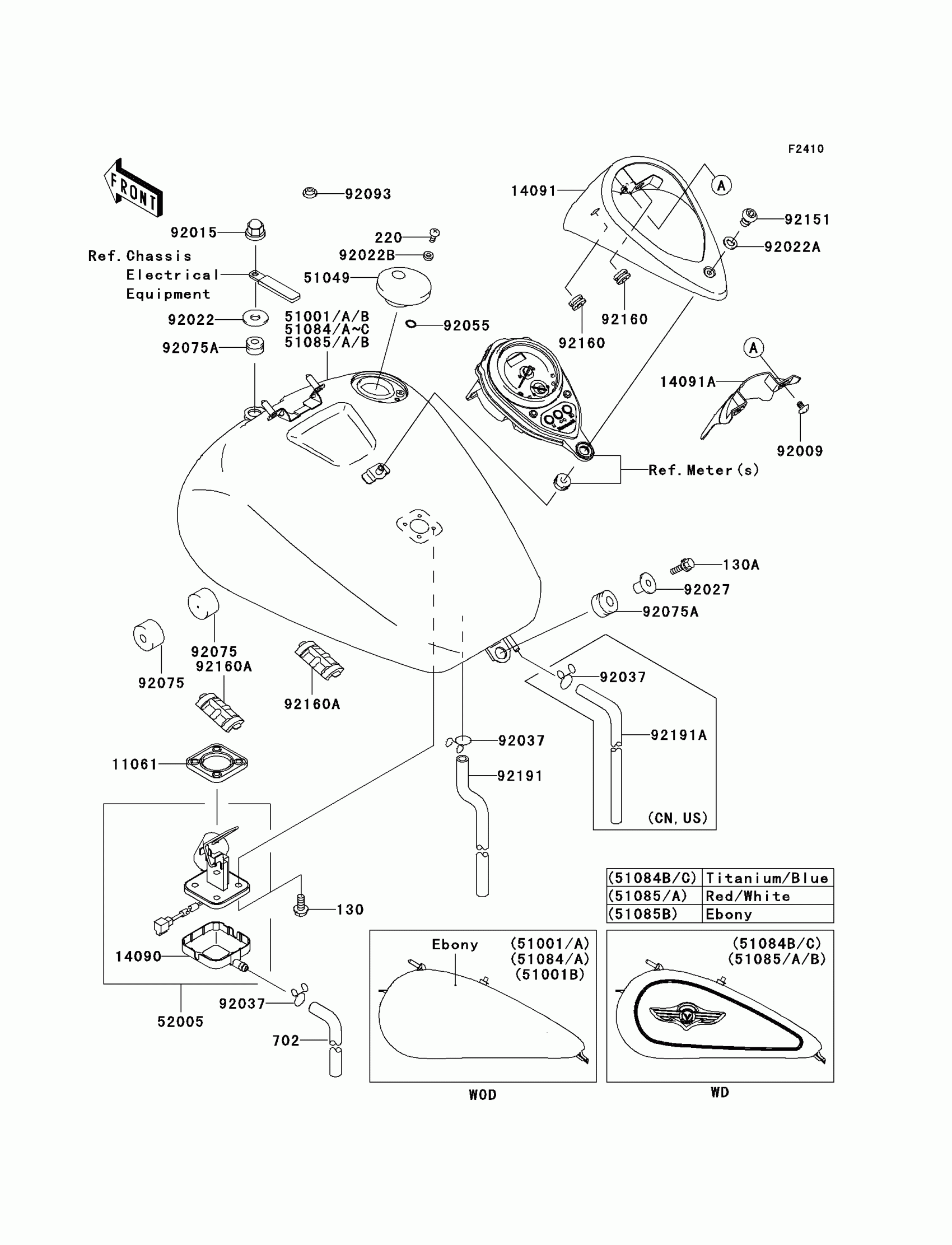

Kawasaki Vulcan® 1500 Classic Fuel Tank(7/7) Diagram

#

Description
Price

11061

GASKET,FUEL GAUGE

11061-0279

$10.24

14090

COVER,FUEL GAUGE

14090-1624

$16.00

14091

COVER,METER

14091-1208

$179.25

14091A

COVER,METER,FR

14091-1301

$45.31

51049

CAP-TANK,FUEL

51049-0003

$97.97

52005

GAUGE,FUEL

52005-0034

$135.33

92009

SCREW,6X12

92009-1877

$1.80

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92022

WASHER,8X26X2.3

92022-1345

$3.29

92022A

WASHER-PLAIN

92022-183

$2.99

92022B

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=19.3

92027-1780

$4.93

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER

92075-1736

$4.93

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X10

92151-1449

$1.57

92160

DAMPER

92160-1162

$3.81

92160A

DAMPER,FUEL TANK

92160-1907

Unavailable

92191

TUBE,DRAIN

92191-1272

$23.59

130

BOLT-FLANGED,5X12

130G0512

Unavailable

130A

BOLT-FLANGED,8X30

130H0830

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$10.11

51001B

TANK-COMP-FUEL,EBONY

51001-0209-H8

$1,436.78

51085B

TANK-COMP-FUEL,EBONY

51085-5293-H8

$1,342.99

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92191A

TUBE,5X10X650

92191-1529

Unavailable
