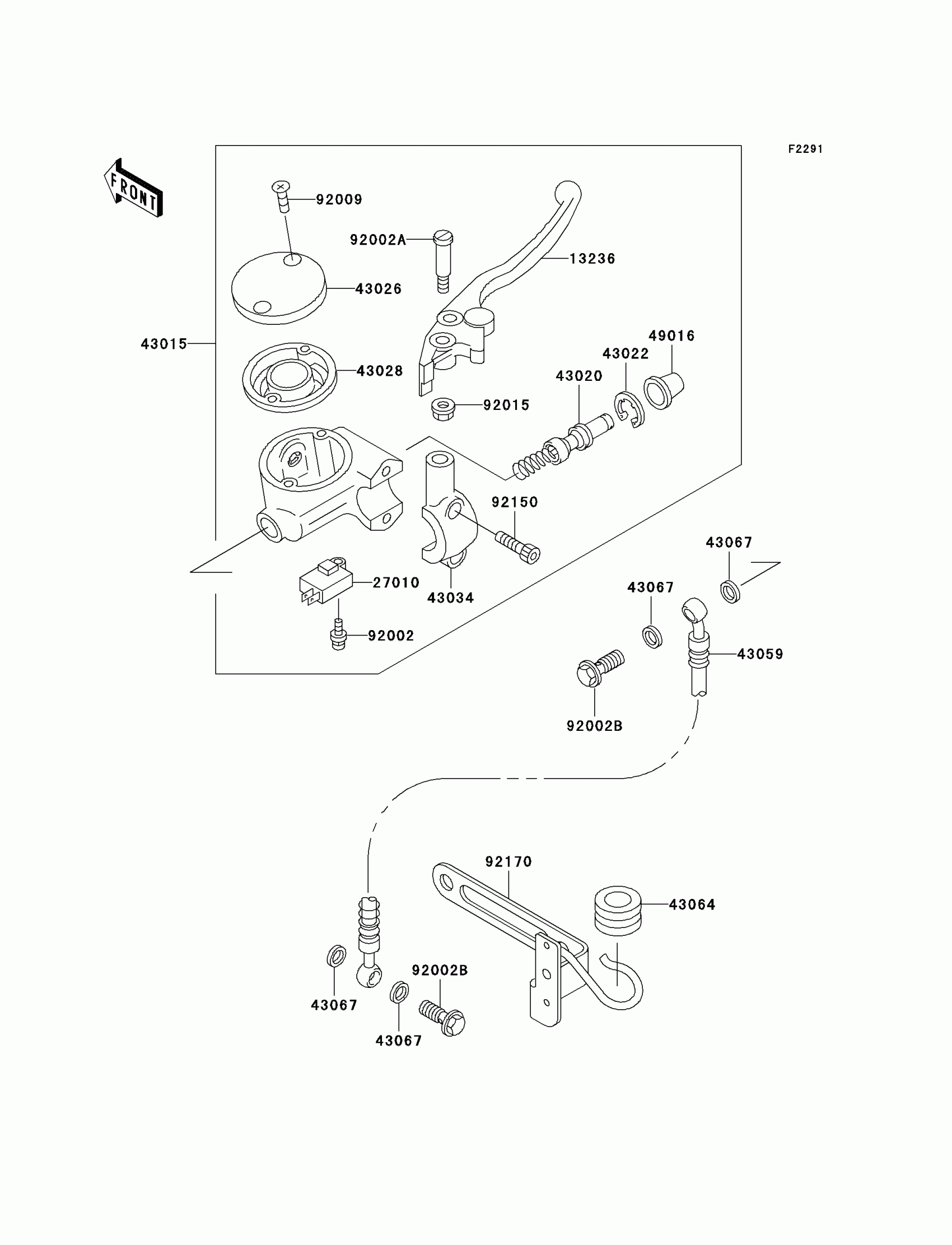

Kawasaki Vulcan 1500 Classic Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1287

$57.91

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1583

$462.58

43020

PISTON-COMP-BRAKE

43020-1098

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,SILVER

43026-1078

$63.92

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$24.21

43034

HOLDER-BRAKE,SILVER

43034-1102

$53.20

43059

HOSE-BRAKE,FR

43059-1952

$139.01

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43067

WASHER,10.5X15X1.5

43067-001

$2.15

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,LEVER SET

92002-1561

$11.71

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,5MM

92009-1440

$4.11

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92150

BOLT,SOCKET,6MM

92150-1025

$7.69

92170

CLAMP,HOSE

92170-1651

$21.00
