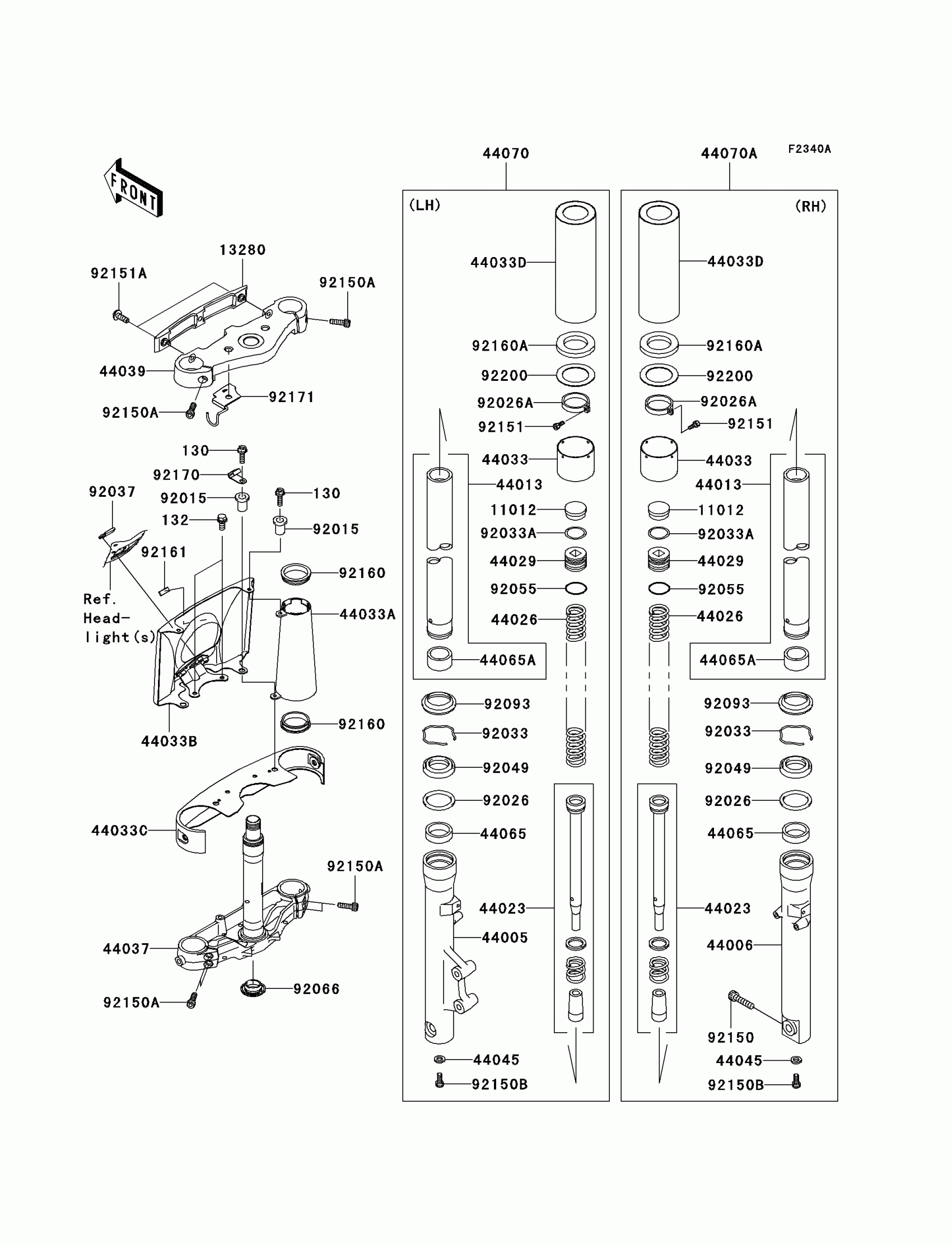

Kawasaki Vulcan® 1500 Classic Front Fork(N7F/N7FA/N8F/N8FA) Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1618

$20.38

13280

HOLDER,UPPER BRACKET

13280-1161

$135.81

44005

PIPE-LEFT FORK OUTER

44005-1366

$470.61

44006

PIPE-RIGHT FORK OUTER

44006-1365

$470.61

44013

PIPE-FORK INNER

44013-1462

$499.24

44023

CYLINDER-SET-FORK

44023-1129

$137.50

44026

SPRING-FRONT FORK

44026-1717

$104.08

44029

SEAT-FORK SPRING

44029-1125

$44.89

44033

COVER-FORK

44033-1223

$22.85

44033A

COVER-FORK,UPP

44033-1229

$122.39

44033B

COVER-FORK,CNT

44033-1255

$124.04

44033C

COVER-FORK,LWR

44033-1257

$202.72

44033D

COVER-FORK

44033-1261

$153.20

44037

HOLDER-FORK UNDER

44037-1411

$468.06

44039

HOLDER-FORK UPPER

44039-1305

$342.70

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-1079

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$26.61

44070

DAMPER-ASSY,FORK,LH

44070-1829

$1,169.19

44070A

DAMPER-ASSY,FORK,RH

44070-1830

$1,169.19

92015

NUT,WELL,5MM

92015-1757

$5.58

92026

SPACER,FORK OUTER

92026-1276

$7.25

92026A

SPACER

92026-1515

$14.97

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92037

CLAMP,L=45

92037-1539

$4.42

92049

SEAL-OIL,FORK

92049-1363

$21.55

92055

RING-O,SPRING SEAT

92055-1363

$5.61

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK

92093-1268

$20.76

92150

BOLT,SOCKET,10X40

92150-1029

Unavailable

92150A

BOLT,SOCKET,8X30

92150-1031

$9.71

92150B

BOLT,SOCKET,8X18

92150-1432

$7.54

92151

BOLT,SOCKET,4X16

92151-1356

$2.03

92151A

BOLT,SOCKET,8X25

92151-1753

$5.81

92160

DAMPER

92160-1892

$3.15

92160A

DAMPER

92160-1927

$7.76

92161

DAMPER

92161-1177

Unavailable

92170

CLAMP,HARNESS

92170-1900

$5.46

92171

CLAMP,BRAKE HOSE

92171-1353

$24.15

130

BOLT-FLANGED,5X16

130J0516

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

92200

WASHER

92200-1417

$7.46
