Frame Fittings

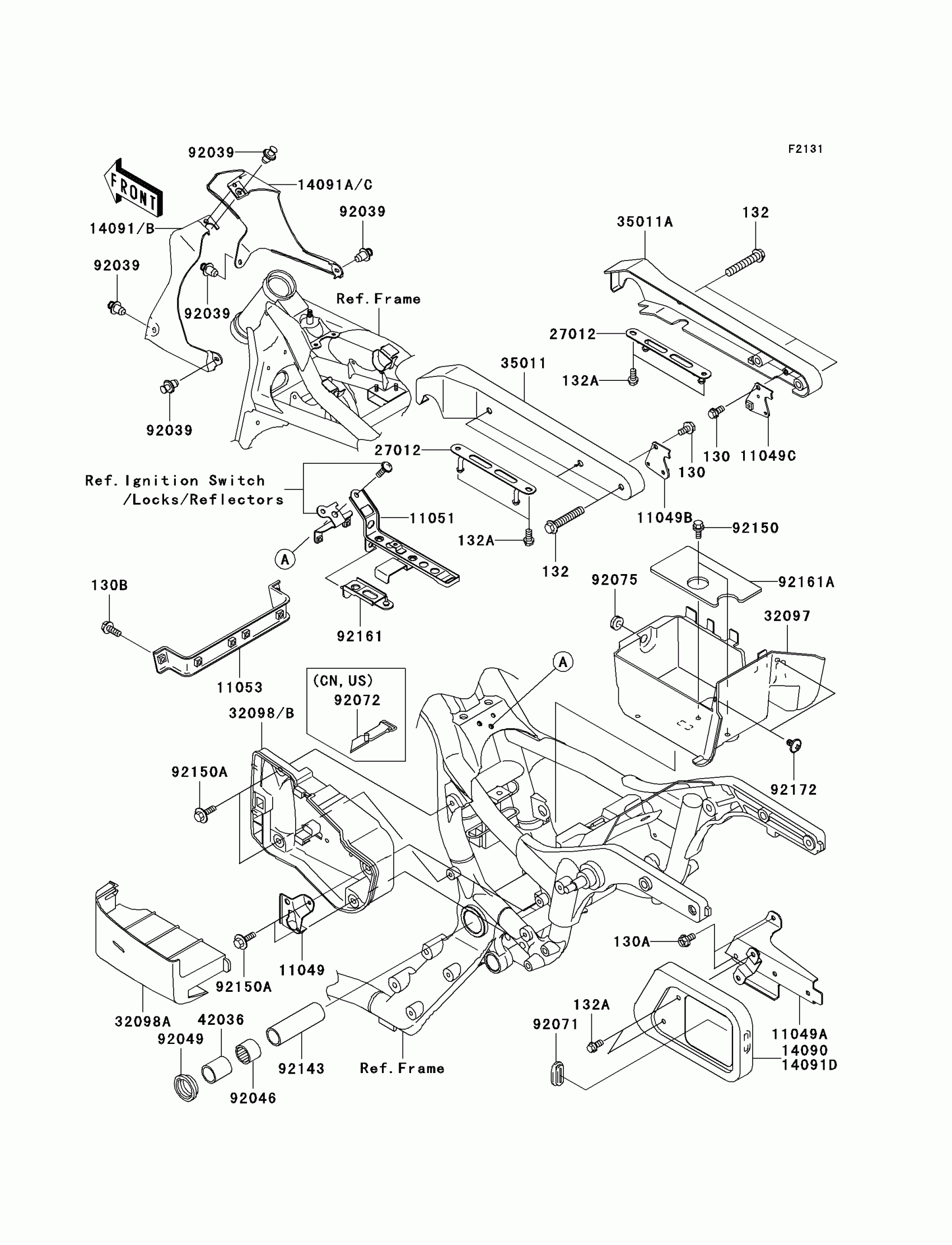

Kawasaki Vulcan® 1500 Classic Frame Fittings Diagram
#
Description
Price
130
BOLT-FLANGED,6X12
130H0612
$1.69
130A
BOLT-FLANGED,6X12
130J0612
$2.19
130B
BOLT-FLANGED,6X16,BLACK
130J0616
$1.92
132
BOLT-FLANGED-SMALL,8X45
132E0845
$7.24
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
11049
BRACKET,LOCK
11049-1600
$18.83
11049A
BRACKET,REGULATOR
11049-1607
$73.85
11049B
BRACKET,HELMET LOCK,LH
11049-1624
$6.61
11049C
BRACKET,HELMET LOCK,RH
11049-1625
$6.61
11051
BRACKET,BATTERY BAND
11051-1798
$32.34
11053
BRACKET,REGULATOR
11053-0434
$34.73
14091
COVER,HEAD PIPE,LH
14091-0849
$149.12
14091A
COVER,HEAD PIPE,RH
14091-0850
$149.12
14091D
COVER,REGULATOR
14091-0851
$61.19
27012
HOOK,BUNGEE CORD
27012-1524
$23.49
32097
CASE-BATTERY
32097-1175
$39.94
32098A
CASE-TOOL,COVER
32098-1126
$137.22
35011
STAY,REAR FENDER,LH
35011-1868
$133.16
35011A
STAY,REAR FENDER,RH
35011-1869
$115.84
42036
SLEEVE,L=45
42036-1330
$29.70
92039
RIVET
92039-1227
$1.81
92046
BEARING-NEEDLE,BM2824
92046-1202
$25.10
92049
SEAL-OIL,28X34X5.7
92049-1181
$9.28
92071
GROMMET
92071-0013
$5.54
92075
DAMPER
92075-1067
$4.69
92143
COLLAR,20.2X27X90
92143-1878
$34.47
92150
BOLT,6X14
92150-1133
$4.31
92150A
BOLT,6X16
92150-1198
$4.13
92161
DAMPER,BATTERY BAND
92161-1096
$12.62
92161A
DAMPER,BATTERY
92161-1097
$6.57
92172
SCREW,6X10
92172-0005
$2.41
32098
CASE-TOOL
32098-1125
$141.76
32098B
CASE-TOOL
32098-1127
$141.76
92072
BAND,L=470
92072-1331
$24.84
