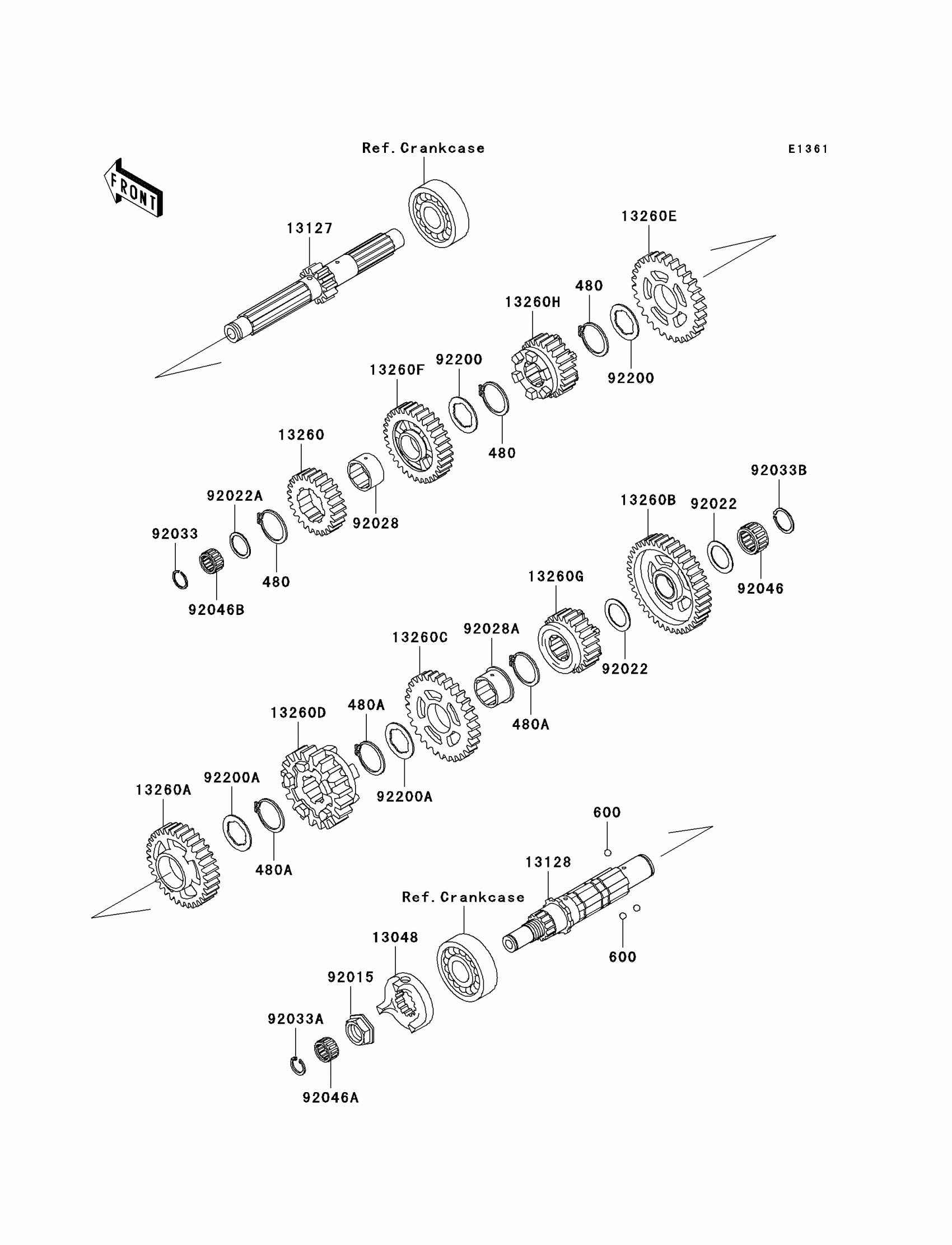

Kawasaki Vulcan 1500 Classic Fi Transmission(VN1500-N1/N2) Diagram

Description

Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

480A

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.68

13048

CAM-DAMPER

13048-1086

$109.52

13127

SHAFT-TRANSMISSION INPUT

13127-1260

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1227

Unavailable

13260

GEAR,INPUT 2ND,22T

13260-1695

Unavailable

13260A

GEAR,OUTPUT 2ND,35T

13260-1700

Unavailable

13260B

GEAR,OUTPUT LOW,40T

13260-1728

Unavailable

13260C

GEAR,OUTPUT 3RD,31T

13260-1812

$208.92

13260D

GEAR,OUTPUT TOP,25T

13260-1813

Unavailable

13260E

GEAR,INPUT 4TH,29T

13260-1814

$184.24

13260F

GEAR,INPUT TOP,32T

13260-1815

$184.24

13260G

GEAR,OUTPUT 4TH,28T

13260-1816

$190.10

13260H

GEAR,INPUT 3RD,26T

13260-1849

$209.47

92015

NUT,20MM

92015-1610

$13.00

92022

WASHER,25.5X36X1.0

92022-1855

$9.56

92022A

WASHER,22.3X35X1.6

92022-212

$9.58

92028

BUSHING,INPUT TOP GEAR

92028-1752

$36.81

92028A

BUSHING,OUTPUT 3RD GEAR

92028-1831

Unavailable

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

RING-SNAP

92033-032

$3.78

92033B

RING-SNAP,25MM

92033-1172

$3.71

92046

BEARING-NEEDLE,TK253515

92046-1259

$24.76

92046A

BEARING-NEEDLE,FWF-162222

92046-1260

$23.07

92046B

BEARING-NEEDLE,BN502250

92046-1293

$20.59

92200

WASHER,28.5X34.0X1.5

92200-1240

$7.83

92200A

WASHER,30.3X40X1.5

92200-1381

$12.03
