2002 Kawasaki Vulcan 1500 Classic Fi Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 2002 Kawasaki Vulcan 1500 Classic Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

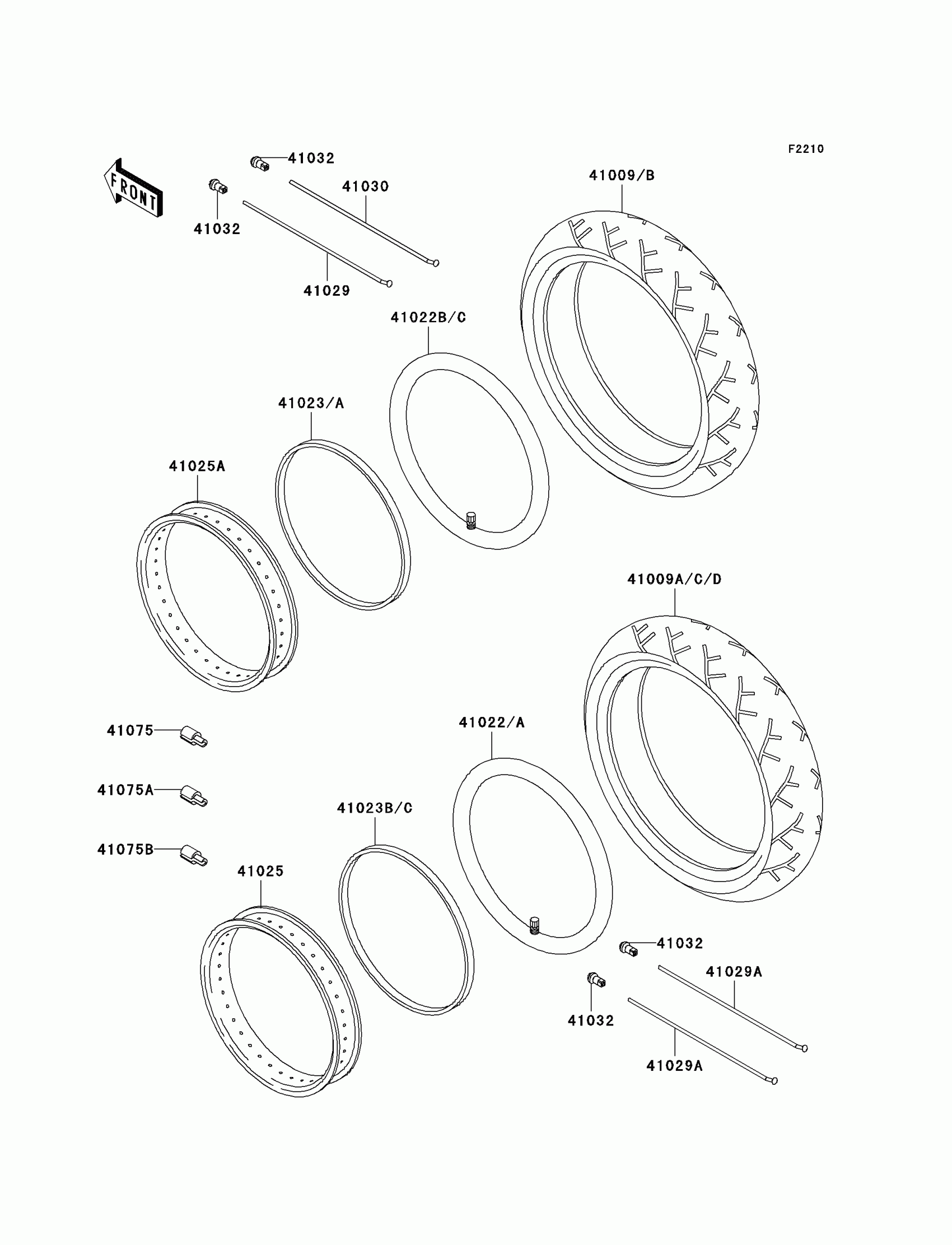

2002 Kawasaki Vulcan 1500 Classic Fi Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,130/90-16 67H,G703L(BS

41009-1338

1
Out of stock

41009B

TIRE,FR,130/90-16 67H,D404FU(D

41009-1340

1
Out of stock

41009C

TIRE,RR,150/80B16 71H,D404L(D)

41009-1341

1
Out of stock

41009D

TIRE,RR,150/80B16 71H,G702J(BS

41009-1407

1
Out of stock

41022

TUBE-TIRE,140/90-16(BS)

41022-1171

1
Out of stock

41022A

TUBE-TIRE,130-140/90-16(D)

41022-1172

1
Out of stock

41022B

TUBE-TIRE,130/90-16 M/C(BS)

41022-1191

1
Out of stock

41022C

TUBE-TIRE,130/90-16(D)

41022-1192

1
Out of stock

41023

BAND-RIM,30-16/X-16B,(BS)

41023-1101

1
Out of stock

41023A

BAND-RIM,140/90-16(D)

41023-1102

1
Out of stock

41023B

BAND-RIM,150/80-16(D)

41023-1115

1
Out of stock

41023C

BAND-RIM,X-16C(BS)

41023-1118

1
Out of stock

41025

RIM,RR,3.50X16

41025-1315

1
Out of stock

41025A

RIM,FR,3.00X16

41025-1412

1
Out of stock

41029

SPOKE-INNER,FR,154.5MMX117D

41029-1310

1
Out of stock

41029A

SPOKE,RR,81MMX155D

41029-1314

1
Out of stock

41030

SPOKE-OUTER,FR,151.5MMX116D

41030-1168

1
Out of stock

41032

NIPPLE-SPOKE

41032-1075

1
Out of stock

41075

BALANCER-WHEEL,10G

41075-1007

—
Out of stock

41075A

BALANCER-WHEEL,20G

41075-1008

—
Out of stock

41075B

BALANCER-WHEEL,30G

41075-1009

—
Out of stock
