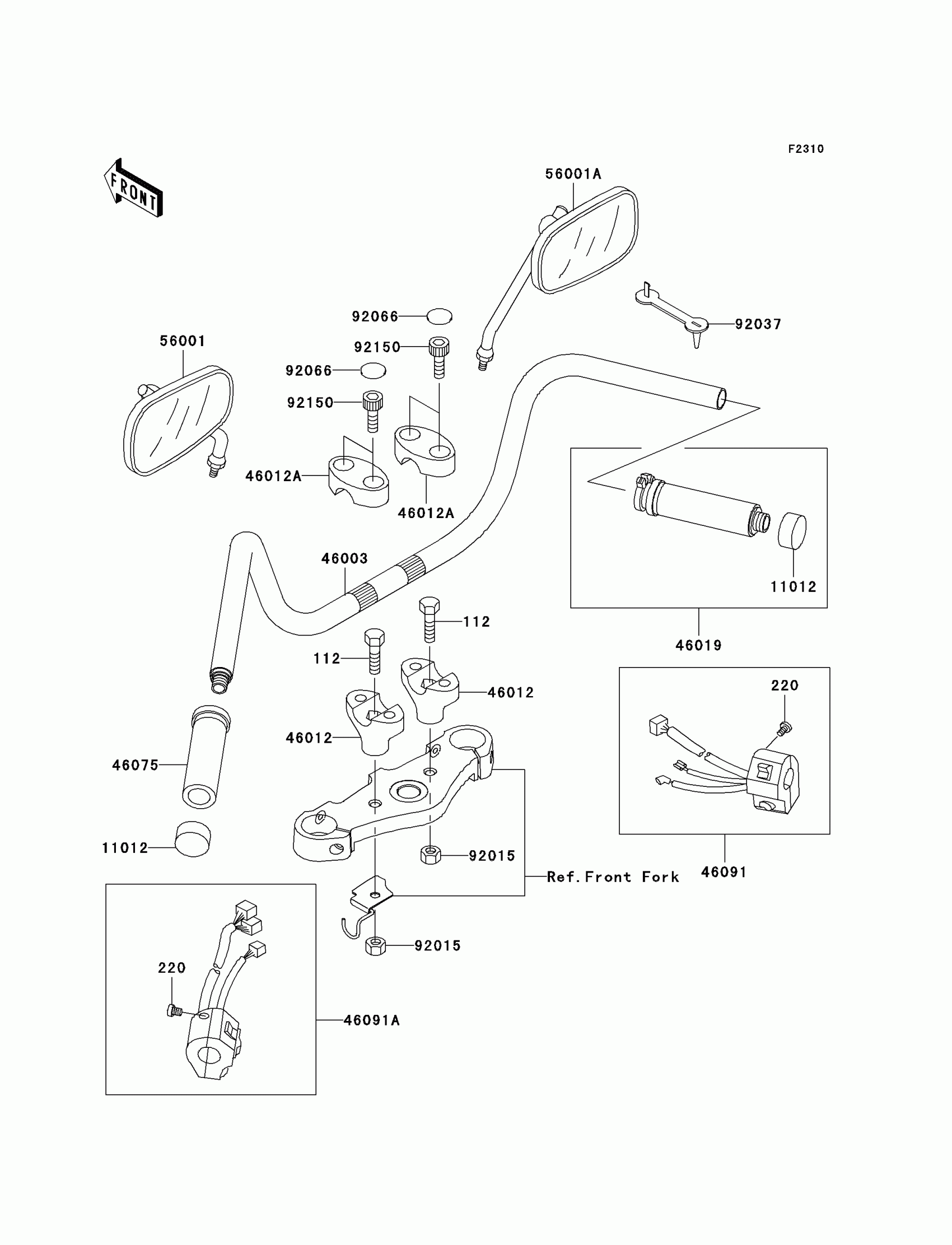

Kawasaki Vulcan 1500 Classic Fi Handlebar Diagram

Description

Price

112

BOLT-UPSET,10X65

112H1065

Unavailable

220

SCREW-PAN-CROSS

220E0525

$2.15

11012

CAP,GRIP END

11012-1975

$16.55

46003

HANDLE

46003-1551

$178.81

46012

HOLDER-HANDLE,LWR

46012-1272

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1273

$52.72

46019

GRIP-ASSY,THROTTLE

46019-1109

$62.08

46075

GRIP,LH

46075-1074

$19.86

46091

HOUSING-ASSY-CONTROL,RH

46091-1717

$268.89

46091A

HOUSING-ASSY-CONTROL,LH

46091-1788

Unavailable

56001

MIRROR-ASSY,LH

56001-1503

$69.66

56001A

MIRROR-ASSY,RH

56001-1504

$69.66

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92066

PLUG

92066-1285

$5.93

92150

BOLT,SOCKET,10X23

92150-1942

$5.61
